| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-USD32500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | CZ Purlin Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Cutting Blade Material: | Cr12MoV |
| Condition: | New | Cutting: | Hydraulic Cutting |
| Name: | Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment | Shaft Material: | 40Cr |
| Usage: | Build The Workshop | Power(w): | 22 KW |
| Warranty: | 12 Months,and Life Long Tracking Service | Dimension(l*w*h): | 10.1*1.2*1.2 |
| Control System: | PLC Control System(brand As Requirement) | Tile Type: | Steel |
| Weight: | 3.2T | ||
| Highlight: | 22 KW CZ Purlin Roll Forming Machine,CZ Purlin Roll Forming Machine No.45 Coated |
||

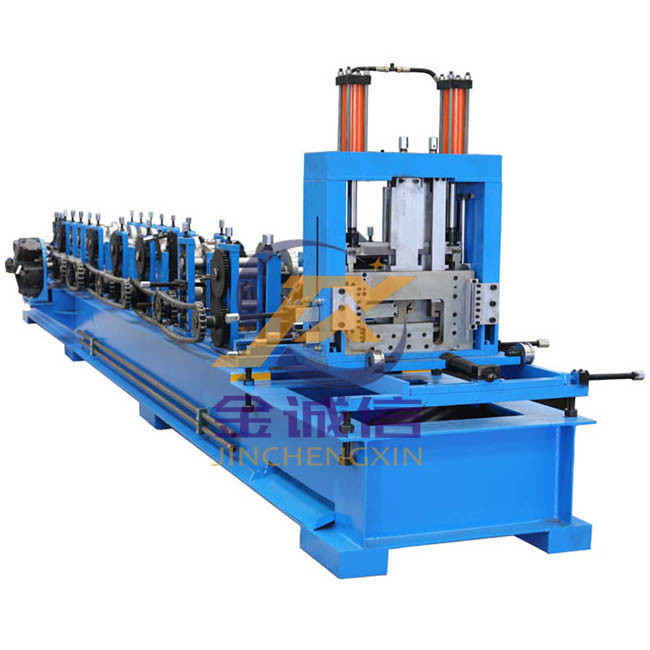

Blue Color C Z Purlin Roll Forming Machine No.45 Steel Coated With Chromed Treatment
1.Description of CZ purlin roll forming machine:
C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
Our factory is manufacturing high quality full automatic CZ shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Dominican Republic , Thailand, etc.
CZ purlin roll forming machine is a machine that produces C shaped or Z Purlin steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.
2. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
3. Technical details of door shutter roll forming machine:
| Machine Specifications | |
| Weight | About 9.5tons |
| Size | About 10.1*1.2*1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0 mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material |
Cr12MoV steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 22kw hydraulic motor |
| Electric voltage | According to customer’s requirement |
4. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The CZ purlin which was produced by CZ purlin roll forming machine can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

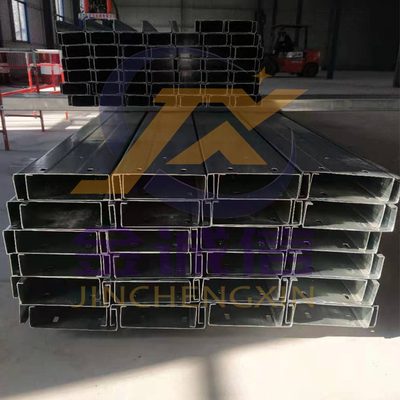

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Contact Person: Celina Li
Tel: +8615128751166
