| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD17,999-USD27,500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 50-60 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Full Automatic CZ80-300 Cz Purlin Forming Machine Cz Purlin Roll Forming Machine | Cutting System: | Automatic Hydraulic Cutting |
|---|---|---|---|
| Shaft Material: | 40Cr Steel, Quenched Treament | Power(w): | 22 KW Hydraulic Motor |
| Machine Warranty: | 18 Months And Life Long Tracking Service | Machine Size(l*w*h): | 9.3*1.4*2.2 |
| Control System: | Mitsubishi Brand PLC Control | Tile Type: | Galvanized Steel |
| Weight: | 9.2T | ||
| Highlight: | CZ Purlin Roll Forming Machine Flying Cutting,JCX CZ Purlin Roll Forming Machine |
||

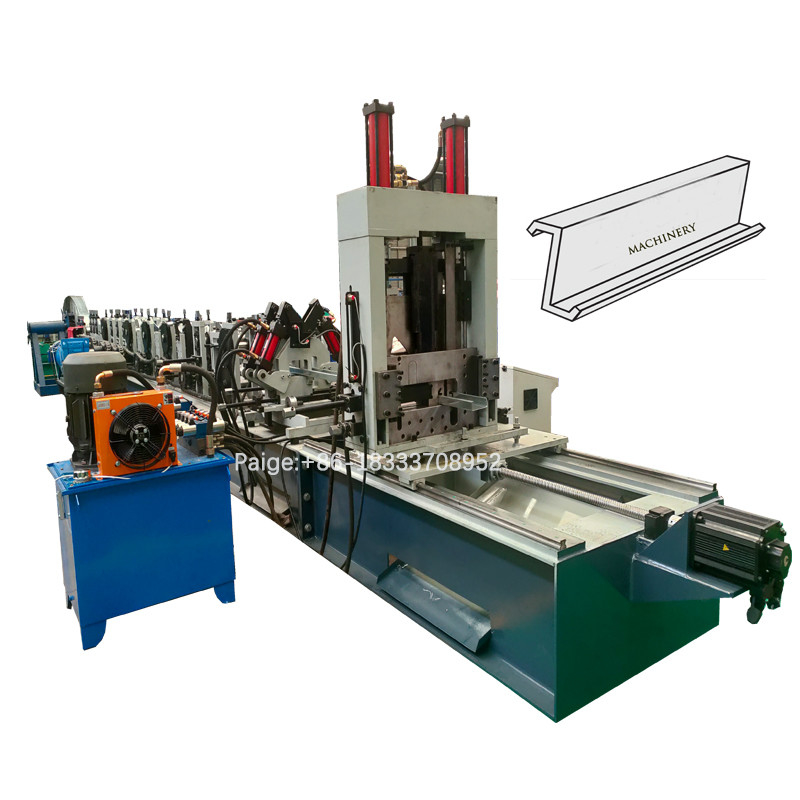

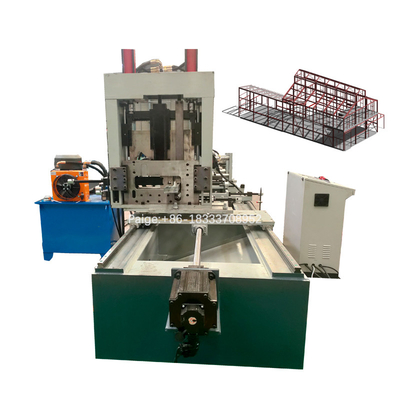

C Purlin Forming Machine CZ Roll Forming Machine With Flying Cutting
It can make C purlin, Z purlin and U purlin all.
①C width(80-300mm)any sizes；
②.Z width: 120-300mm, any size
③height(40-80mm)any sizes；
④lip(10-20mm)；
⑤.Coil thickness(1.5-3.0mm)adjustable
Our full automatic C/Z purlin roll forming machine consist by :
Decoiler--Pre cutting system--Leveling-Main forming-Post punching--Auto shearing--Stacker
New technology by non-stop flying cutting, cut head moves with channel.
3.Technical details of C Purlin Forming Machine Cz Roll Forming Machine With Flying Cutting
|
Uncoiler, 5tons
|
1).Material coil inner diameter: 450mm-550mm 2).Max coil width: 600mm 3).Carrying capacity: 5000kg |
|
Guiding device& leveling device
|
1) .Advanced guiding device, ensure the steel roll in correct direction 2) Leveling the coil into forming system |
|
Roll Forming Machine
|
Refer to parameters |
|
Shearing System
|
1) .Limitless cutting, Hydraulic cutting 2).Blade and mold material:Cr12MOV with quenched treatment 60-62℃ |
|
Control System Portable-can rotate 360 degree
|
1) . Screen:Delta 2) PLC: Delta 3). Automatic length measurement 4). Automatic quantity measurement 5). Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved 6). Length inaccuracy can be amended easily 7).Language:Chinese--English 8).Control panel:Button type switch,LED display length and quantity. 9). Motor over-load,system over current,short circuit protection function. 10).Display total length and total quantity produced. |
|
Driving by Hydraulic motor
|
1. 22KW hydraulic motor, 3*0.75Kw motor for change sizes 2. Outer five-star piston connecting rod type (Ningbo Hanzhu) |
|
Hydraulic station
|
1. 22kw, with cooling fan 2. Motor: shanghai lichao |
|
Punching device
|
Post punching for round hole and oblong hole |
|
Manual Receiving table
|
Manual receiving table. 3meters/pcs |
5. Main components of
C Purlin Forming Machine Cz Roll Forming Machine With Flying Cutting
| Decoiler | 1 Set |
|
Guiding Equipment |
1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit--Non-stop | 1 Set |
| Hydraulic Station | 1 Set |
| Post punching system | 1 set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
6. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
7. Our service
1). Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
2). After-Sale Service
a. 18 months warranty is provided.
b. Customers can send photos or samples for our confirmation once the parts are damaged within the warranty period. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks.
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
