Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | Double Layer Roll Forming Machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD10000-USD13500 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
Delivery Time: | about 30 working days |
Payment Terms: | L/C, T/T, Western Union, |
Supply Ability: | 30 SETS PER MONTH |
Product Name: | Double Layer Roll Forming Machine | Voltage: | 380V 50Hz 3phases |
---|---|---|---|
Cutting Blade Material: | Cr12MOV | Cutting: | Hydraulic Cutting System |
Usage: | Roof Sheet, Wall Panel | Power(w): | 5.5+4 KW |
Warranty: | 12 Months,and Life Long Tracking Service | Dimension(l*w*h): | 6000*1300*1200mm |
Control System: | PLC Control System(brand As Requirement) | Weight: | 6.5T |
High Speed Metal Trapezoidal Roof Panel Double Layer Roll Forming Machine
1. Description Of Double Layer Roll Forming Machine
1.Our double layer roll forming machine details is made up of manual decoiler, main molding forming machine, cutting device, PLC computer control, hydraulic system and Simple receiving table.
2.The double layer roll forming machine is stable,no noise,no shake.
3.Our double layer roll forming machine can uses galvanized steel sheet, colored steel plate or galvalume plate as the material plate.
4. Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.
2. Technical Details Of Double Layer Roll Forming Machine
Machine Specifications | |
Weight | About 6.5tons |
Size | About 6m x 1.3mx1.2m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | GI PPGI GL PPGL |
Thickness | 0.3-0.8mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | up 13 + down 15 |
Diameter of forming rollers shafts | 70mm |
Roll Forming Speed | 15m/min |
Forming rollers material | 45# steel, coated with chromed treatment |
Cutter material | Cr12MOV, with quenched treatment |
Controlling system | PLC |
Electric Power requirement | Main motor power: 5.5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
Manual Decoiler | 1 Set |
Guiding Device | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel.

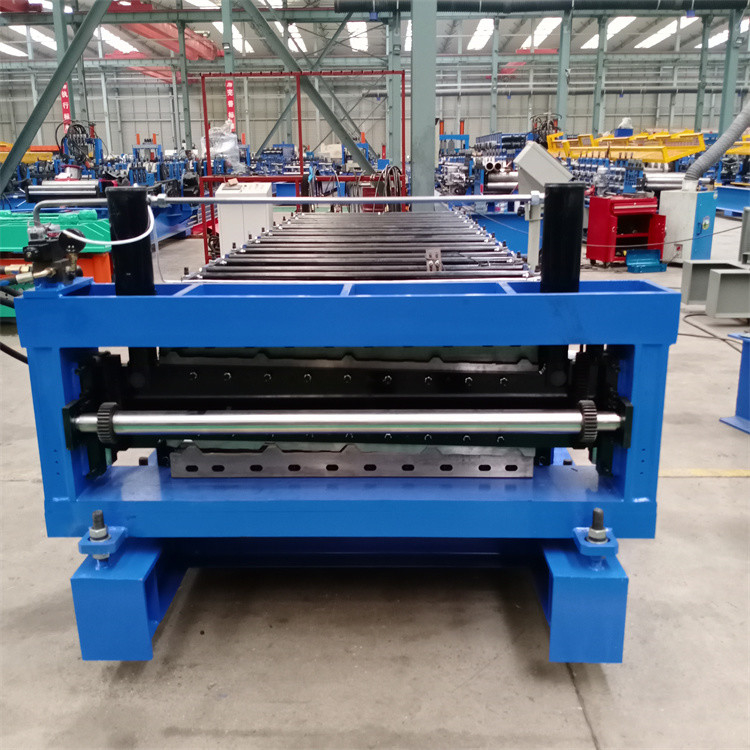

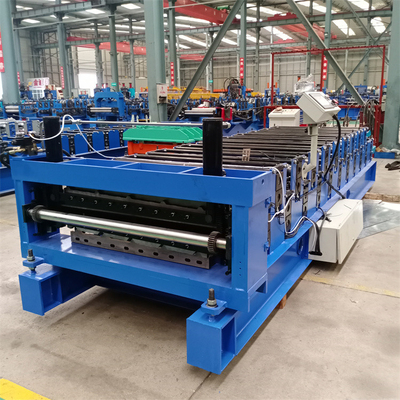

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q:How to visit our company:
A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
