C Channel Machine, Automatic Solar Panel Support Uni strut C Channel Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	Shutter door machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD32000-USD35000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Solar Panel Support Uni Strut C Channel Roll Forming Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Voltage:	380V 50Hz 3phases	Condition:	New
Cutting Blade Material:	Cr12 Quenched	Cutting:	Hydraulic Cutting
Name:	Solar Panel Support Uni Strut C Channel Machine	Size Of C Channel:	41mm41mm; 4172mm
Usage:	Solar Panel Support	Power(w):	22 KW
Warranty:	12 Months,and Life Long Tracking Service	Dimension(lwh):	About 14.21.31.2m
Control System:	PLC Control System(brand As Requirement)	Tile Type:	Steel
Use:	Solar Panel System	Weight:	8.5T

C Channel Machine, Automatic Solar Panel Support Uni strut C Channel Roll Forming Machine

1. Technical details of solar panel support uni strut C channel roll forming machine:

Machine Specifications
Weight	About 8.5tons
Size	About 14.2mx1.3mx1.2m(length x width x height)
Color	Main color: blue or as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	2.0-4.0mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	24
Diameter of forming rollers shafts	80mm
Roll Forming Speed	15-23m/min
Forming rollers material	GCR15 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 11kw
Electric voltage	According to customer’s requirement

2. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

3. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

C Channel Machine, Automatic Solar Panel Support Uni strut C Channel Roll Forming Machine 0

4.Description of solar panel support uni strut C channel roll forming machine:

Solar Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners.

Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the installation of solar panel support.

7. Product photo

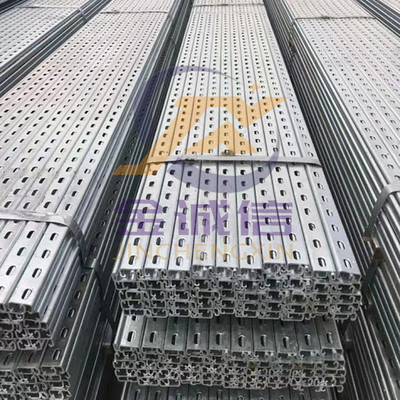

C Channel Machine, Automatic Solar Panel Support Uni strut C Channel Roll Forming Machine 1

C Channel Machine, Automatic Solar Panel Support Uni strut C Channel Roll Forming Machine 2

8. FAQ

1. Does one machine can only produce one style panel profile?

Not exactly.For some making machine. It can produce more kinds of panels by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can
pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),
then we can pick up you.

4. What can you do if the machine broken?

Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the
equipment.

5. Can you be responsible for transport?

Yes,please tell me the destination port or address.we have rich experience in transport.

6..Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money
on developing how to make machines much more automatic, accurate and high quality.
We can make sure that our machine could use more than 10 years without any problem. We can provide 18 months free quality
assurance.

7.How long the machine could be made?

Normally speaking, welded pipe making machine could be made without 45 working days.
If you need machines in a hurry, we can make it for you less than a months.
