| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | cable tray machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1044777-USD115614 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
| Delivery Time: | 60-78 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 SETS PER MONTH |
| Capacity: | 10-12m/min | Usage: | Cable Making Industry |
|---|---|---|---|
| Main Frame350H Steel: | 25mm Steel | Main Motor: | 5.5KW*4 |
| Roller Station: | 26 Stations | Dimension(l*w*h): | 36m*3m*1.3m |
| Control System: | PLC Delta | Cutting Type: | Pre-cutting Hydraulic |
| Profile: | Cable Tray Roll Forming Machine | Material Width: | 100-800mm |
| Highlight: | 2.5mm Cable Tray Roll Forming Machine,Color Steel Cable Tray Roll Forming Machine |
||
color steel 0.8-2.5mm Cable Tray Roll Forming Machine pre-cut Cable Making Industry
1. Description of cable tray roll forming machine:
We make different cable tray machine solutions according to client requiment,offering professional service.Whichever line you choose, the quality of JCX machine will ensure you obtain perfectly functional profiles.
In Electrical Industries, we are able to manufacture more machines like cable ladder roll forming machine ect
Our factory is manufacturing high quality cable tray roll forming machine, and regularly exported to South Africa, Zambia, Rwanda, Dubai, Poland, Saudi Arabia, Israel, Philippines, Thailand, Canada
2. Technical details of cable tray machine:
| Machine Specifications | |
| Weight | About 10tons |
| Size | About 36m*3m*1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.8-2.5mm |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 stations |
| machine frame | 400H steel 26mm |
| Roll Forming Speed | 10-12m/min |
| Forming rollers material | 40Cr heat treatment HRC55-60, hard chrome plating on the surface |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5KW*4 |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
About the company:
1. Our company has 25 years of production experience and exporting experience, wecan guarantee the quality of the machine
2. Our company has 5 warehouses, which can store raw materials separately, so we don't delay delivery
3. Our company has professional after-sales service. If you want to know something about the machine, you can find our after-sales service at any time.
About the machine:
1.CNC machine to produce the machine rollers, which can guarantee the quality of the machine wheels
2. The large frame is produced by our company and will not be deformed
3.Chain use 1.5 inch
4.The machine have punching device
5.It is controlded by PLC,you only need set the PLC.
6. Application
This machine is widely used in the production of the cable tray line.

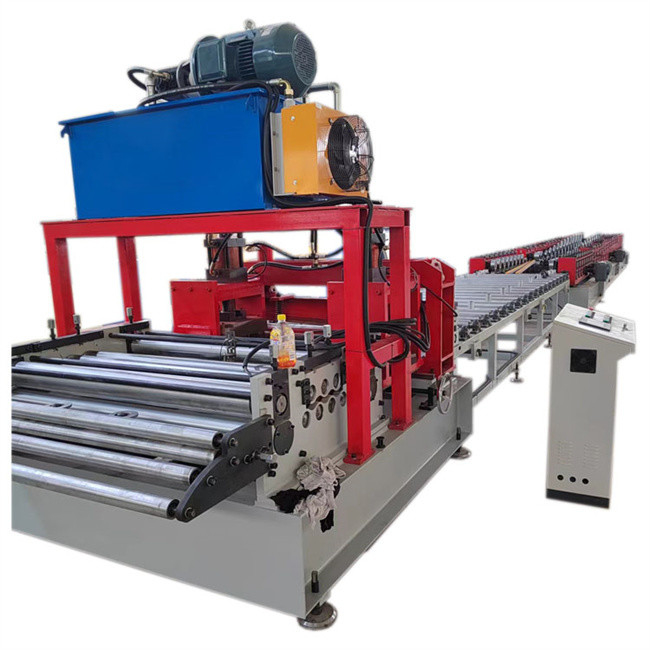

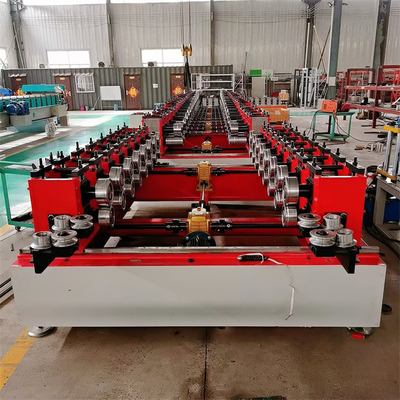

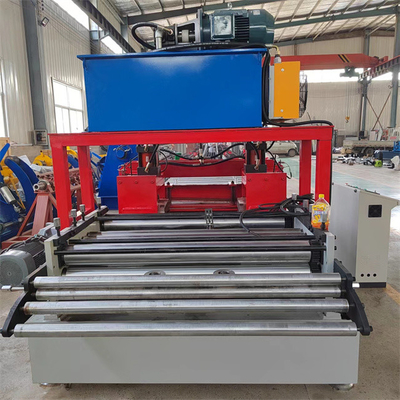

7. Product photo
8. FAQ
Q:Can you customized our profile?
A:Yes dear.Our company have more than 25 years exoerience,5 engineers with more than 20 years experience design your profile.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q:How long can the machine be built?
A:The machine takes about 70-80 days to complete, if you are in a hurry to use the machine , we can make it urgently, because we have enough raw material.
Q:Do you have a designer to design my profile drawing?
A:yes, or designers adopt European concepts, have 10 years of design experience, and are praised by our customers
Contact Person: Eileen Sun
Tel: +86 17331704660
