JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine

JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine

  • JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine
  • JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine
JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine
Product Details:
Place of Origin: China
Brand Name: JCX
Certification: CE ISO
Model Number: cable tray machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1044777-USD115614 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 40'gp container
Delivery Time: 60-78 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 SETS PER MONTH
Contact Now
Detailed Product Description
Capacity: Aboout 10-12m/min Usage: Cable Tray Roll Forming Machine
Main Frame350H Steel: 25mm Steel Machine Motor: 5.5KW*4
Roller Station: About 24-26 Stations Machine Dimension(l*w*h): About 36m*3m*1.3m
Control System: PLC Delta Or As Customer Request Cutting System: Pre-cutting Hydraulic
Profile: Automatic Cable Tray Roll Forming Machine Raw Material Width: 100-800mm
High Light:

JCX Cable Tray Roll Forming Machine

,

Cable Tray Roll Forming Machine Hydraulic Cut

,

Hydraulic Cut Cable Ladder Roll Forming Machine

PLC Control Cable Tray Roll Forming Machine Hydraulic Cut Long Time Service





1. Description of cable tray roll forming machine:

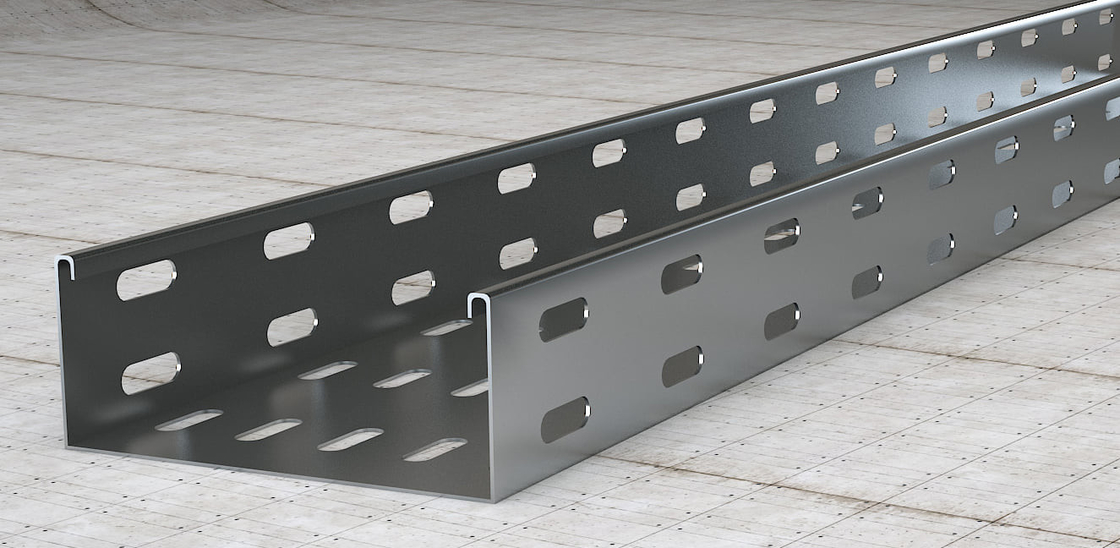

Cable tray roll forming machine (also called cable ladder roll forming machine ) is capable of making different sizes of cable trays through replacing punching moulds. The cable trays produced by this roll forming machine production line are extensively used in factories and other buildings .Because of their accurate robustness .



Cable tray roll forming machine consists of decoiler(uncoiler),leaving machine(flattener),servo feeding device ,punching system ,front cutting device ,guiding device,roll former,rear straightening device and run-out table .


With full and special experience ,we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers"profile drawings and specifications.



2. Technical details of cable tray machine:



Machine Specifications
Weight About 10tons
Size About 36m*3m*1.3m(length x width x height)
Color Main color: blue or as your requirement
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.8-2.5mm
Main Technical Parameters
Quantity of forming rollers stations 26 stations
machine frame 400H steel 26mm
Roll Forming Speed 10-12m/min
Forming rollers material 40Cr heat treatment HRC55-60, hard chrome plating on the surface
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5KW*4
Electric voltage According to customer’s requirement







3. Main components of door shutter roll forming machine



COMPONENT FOR New Condition High Performance Cable Tray Roll Forming Making Machine
Name Units Quantity
Decoiler Set 1
Main Machine Feeding device Set 1
Roll forming system Set 1
Cutting Equipment Set 1
Hydraulic system Set 1
Electric control system Set 1
Supporter/Automatic Stacker Set 1







4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine 0





5. Advantages



About the company:
1. Our company has 25 years of production experience and exporting experience, wecan guarantee the quality of the machine
2. Our company has 5 warehouses, which can store raw materials separately, so we don't delay delivery
3. Our company has professional after-sales service. If you want to know something about the machine, you can find our after-sales service at any time.
About the machine:
1.CNC machine to produce the machine rollers, which can guarantee the quality of the machine wheels
2. The large frame is produced by our company and will not be deformed
3.Chain use 1.5 inch

4.The machine have punching device

5.It is controlded by PLC,you only need set the PLC.





6. Application



This machine is widely used in the production of the cable tray line.



7. Product photo

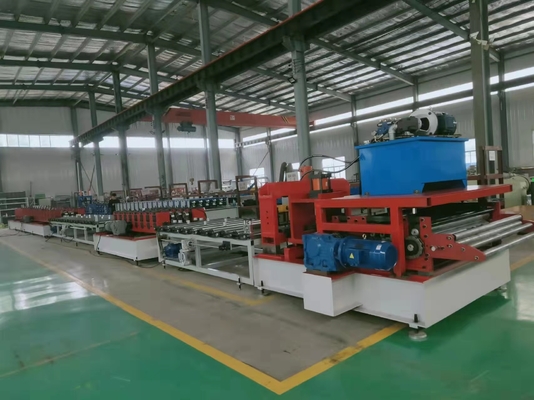

JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine 1

JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine 2



JCX Cable Tray Roll Forming Machine Hydraulic Cut Cable Ladder Roll Forming Machine 3



8. FAQ



Q1. What's your payment terms and delivery time?

A1: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 60-70 days for delivery.





Q2. Do you have after-sales support?

A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.





Q3. Do you sell only standard machines?

A3: No, most of our machines are built according to customers specifications, using top brand components.





Q4. What will you do if the machine is broken?

A4: We provide 12 months free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.








Welcome to visit us!
