22KW Strut Channel Roll Forming Machine for Solar Panel Support

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	4141 2141

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD32000-USD35000 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Post Punch And Track Cutting Solar Strut Channel Roll Forming Machine Long Life Time	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Voltage:	380V 50Hz 3phases	Condition:	New
Cutting Blade Material:	Cr12 Quenched	Cutting:	Hydraulic Cutting
Name:	Solar Panel Support Uni Strut C Channel Machine	Size Of C Channel:	41mm41mm; 4172mm
Usage:	Solar Panel Support	Power(w):	22KW
Warranty:	12 Months,and Life Long Tracking Service	Dimension(lwh):	About 14.21.31.2m
Control System:	PLC Control System(brand As Requirement)	Tile Type:	Steel
Use:	Solar Panel System	Weight:	8.5T
High Light:	22KW Strut Channel Roll Forming Machine , Solar Panel Strut Channel Roll Forming Machine

Post Punch And Track Cutting Solar Strut Channel Roll Forming Machine Long Life Time

1. Description of solar panel support uni strut C channel roll forming machine:

Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

Solar Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners.

Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

2.Technical details of solar panel support uni strut C channel roll forming machine:

Machine Specifications
Weight	About 8.5tons
Size	About 14.2mx1.3mx1.2m(length x width x height)
Color	Main color: blue or as your requirement
Color	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	2.0-4.0mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	24
Diameter of forming rollers shafts	80mm
Roll Forming Speed	15-23m/min
Forming rollers material	GCR15 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 11kw
Electric voltage	According to customer’s requirement

3. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

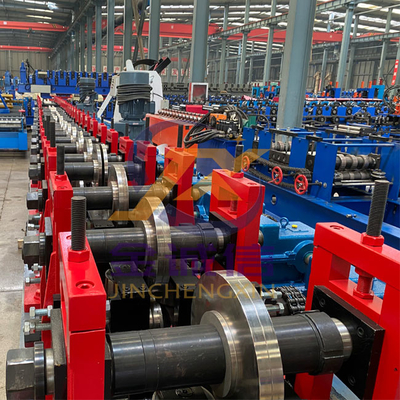

22KW Strut Channel Roll Forming Machine for Solar Panel Support 0

4. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the installation of solar panel support.

7. Product photo

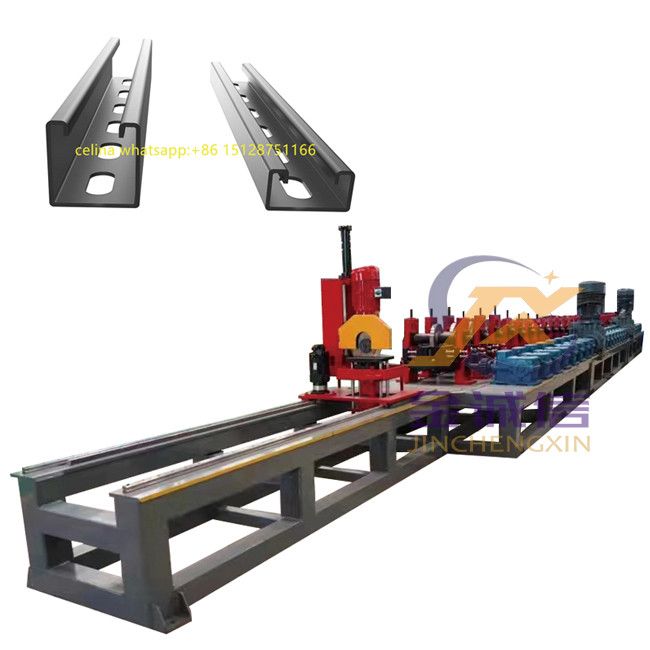

22KW Strut Channel Roll Forming Machine for Solar Panel Support 1

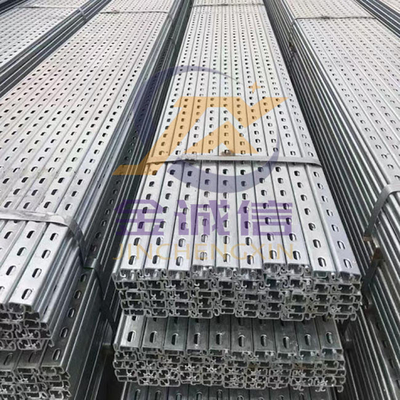

22KW Strut Channel Roll Forming Machine for Solar Panel Support 2

22KW Strut Channel Roll Forming Machine for Solar Panel Support 3

8. FAQ

1. Does your company can customized my needed profile?

Yes sir/Madam. Our machines are all customized according to customers'

requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?

Yes sir/ Madam. If you don't have profile drawings, the solutions have:

2.1 : Provide me with your profiles' pictures ;

2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you

related profile drawings.

2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?

Yes sir/Madam. Our advantages have :

3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best

machine solution.

3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine

orders' making and guarantee the delivery.

3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a

pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.

3.4 : We are a golden integrity roll forming machine company. About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same with my wanted ?

Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?

One machine is okay.

6. What is your payment terms?

6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.

6.2 : We accept 100% L/C at sight

6.3: We accept Western Union payments.

6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
