| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Double Layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10500-USD13000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | CE ISO | Product Name: | Double Layer Roll Forming Machine |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases Or As Your Need | Usage: | Roof Sheet, Wall Panel |
| Power(w): | 5.5+4 KW | Warranty: | 1 Year, And Life Long Tracking Service |
| Control System: | PLC Control System(brand As Requirement) | Raw Material: | Color Steel Sheet, Aluminum, Galvanized Sheet |
| Roller Stations: | 13+18 Station | Roller Material: | 45#steel With Chrome On The Surface |
Metal Roof Wall Panel Double Layer Roll Forming Machine Steel Sheets
1. Description Of Double Layer Roll Forming Machine
This double layer roll forming machine have two type profiles : Ibr roofing sheet + Ibr roofing sheet
The double-layer roof machine can be used for two purposes. Small footprint, convenient transportation and cost saving. The machine can be customized according to user needs. We can customize two type roof for you to choose:
Trapezoidal roof + Trapezoidal roof
Trapezoidal roof + Corrugated roof
Trapezoidal roof + Glazed tile roof
Corrugated roof + Corrugated roof
Corrugated roof + Glazed tile roof
Glazed tile roof + Glazed tile roof
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Double Layer Roll Forming Machine
| Machine Specifications | |
| Weight | About 6tons |
| Size | About 5.6m x 1.2mx1.2m(length x width x height) |
| Color | Main color: green or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | up 13 + down 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· More than 10 engineers with more than 10 years experience
· More than 10 designers with more than 10 years experience
· Many sets advanced CNC production lines on site
· Passionate Team
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· Our company has more than 10 years of production experience
· Our workshop area of 25,000 square meters
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

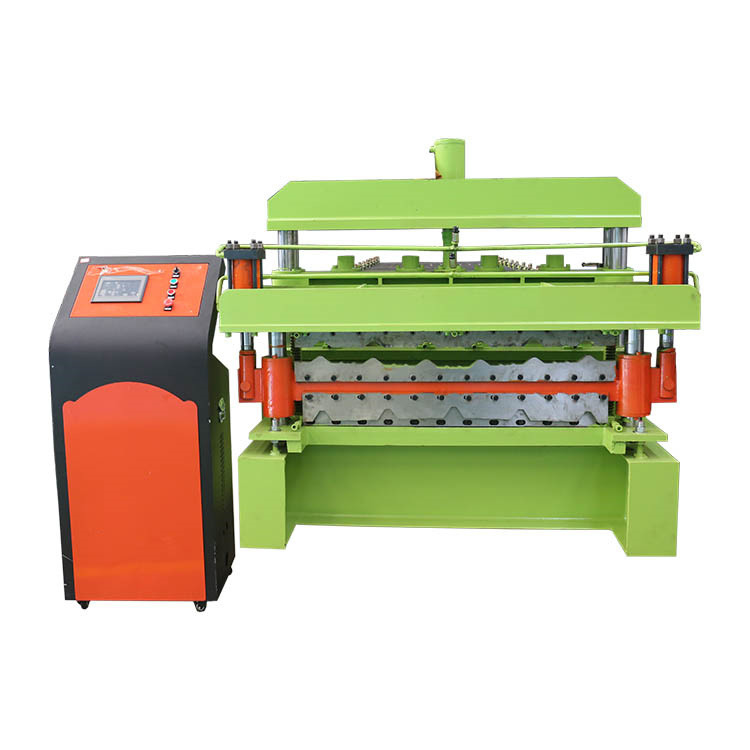

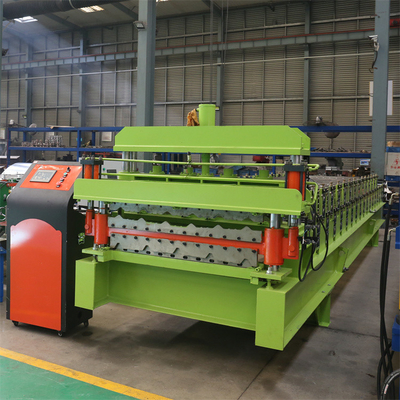

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q. Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q:When we exported the machines:
A:We have beening making and exporting the machines since from the year of 2011.
2:How to visit our company:
1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
