| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Double Layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10500-USD11000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | CE ISO | Product Name: | Double Layer Roll Forming Machine |
|---|---|---|---|
| Voltage: | 380V Or As The Customer's Requirement | Cutting: | Hydraulic Cutting System |
| Warranty: | 1 Year | Usage: | Metal Roof And Wall |
| Tile Type: | Colored Steel, Galvanized Steel Sheet | Control System: | PLC(imported Brand) |
| Condition: | New | After-sales Service Provided: | Video Technical Support |
Color Steel Galvanized Roof Double Layer Roll Forming Machine For Metal Building Material
1. Description Of Double Layer Roll Forming Machine
This double layer roll forming machine have two type profiles : wave roofing sheet + step tile roofing sheet
One double layer roll forming machine can make two types profile sheets. the double layer roll forming machine is to save the customer's space and save the customer's money. We can customize two type roof for you to choose:
Ibr roofing sheet + Ibr roofing sheet
Ibr roofing sheet + wave roofing sheet
Ibr roofing sheet + step tile roofing sheet
wave roofing sheet + wave roofing sheet
wave roofing sheet + step tile roofing sheet
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Double Layer Roll Forming Machine
| Machine Specifications | |
| Weight | About 6tons |
| Size | About 5.6m x 1.2mx1.2m(length x width x height) |
| Color | Main color: green or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | up 13 + down 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· More than 10 engineers with more than 10 years experience
· More than 10 designers with more than 10 years experience
· 30 professional technician
· Many sets advanced CNC production lines on site
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· Our company has more than 10 years of production experience
· our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, India, Algeria, Brazil, Peru, Chile, etc.
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel.

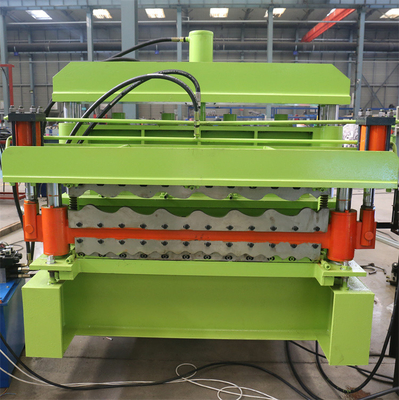

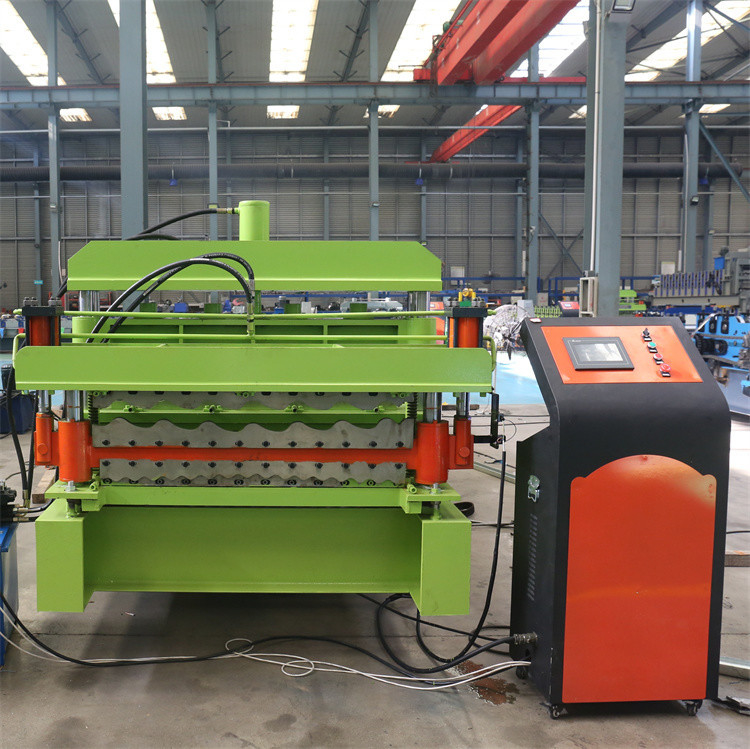

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q. What’s your standard trade terms ?
A: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q: If need technician to workshop to debug and teach, how to do?
A:We provide online guidance, or we sent technician to your factory. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Q. Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Contact Person: Audrey Xing
Tel: +86 15530763231
