| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Double Layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD10500-USD13000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | CE / ISO | Product Name: | Metal Roof Wall Double Layer Roll Forming Machine |
|---|---|---|---|
| Voltage: | 380V Or As Your Requirement | Usage: | Roof Sheet Or Wall Panel |
| Power(w): | 5.5+5.5 KW | Warranty: | 1 Year, Supply The Technical Support For The Whole Life |
| Control System: | PLC Control System(Delta Brand) | Raw Material: | GI, Color Steel Sheet, Aluminum, |
| Roller Stations: | 13+15 Station | Roller Material: | 45#steel With Chrome On The Surface |
Metal Corrugated And Trapezoidal Roof Wall Panel Double Layer Roll Forming Machine
1. Description Of Double Layer Roll Forming Machine
This double layer roll forming machine have two type profiles : Trapezoidal roof + Corrugated roof
The double-layer roof machine can be used for two purposes. Small footprint, convenient transportation and cost saving. The machine can be customized according to user needs. We can customize two type roof for you to choose:
Trapezoidal roof + Trapezoidal roof
Trapezoidal roof + Corrugated roof
Trapezoidal roof + Glazed tile roof
Corrugated roof + Corrugated roof
Corrugated roof + Glazed tile roof
Glazed tile roof + Glazed tile roof
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Double Layer Roll Forming Machine
| Machine Specifications | |
| Weight | About 6tons |
| Size | About 5.6m x 1.2mx1.2m(length x width x height) |
| Color | Main color: green or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | up 13 + down 15 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· More than 10 engineers with more than 10 years experience
· Our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, India. Colombia, Nigeria, Kenya etc.
· Our machine warranty is 1 year and and we supply the technical support for the whole life of the equipment.
· It directly mills the entire frame. The milling machine can make the machine's large surface smoother and the machine is more perfect.
· Our workshop area of 25,000 square meters
· High precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. very popular all over the world.

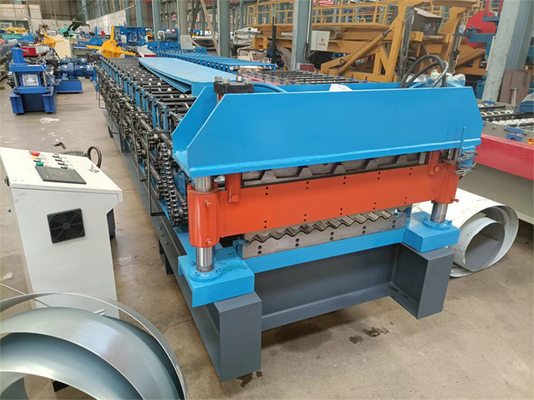

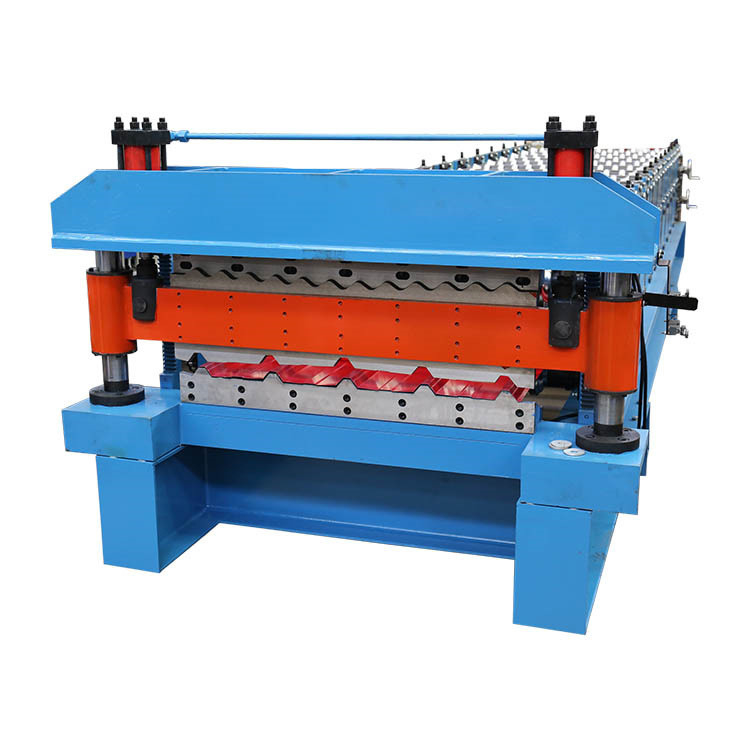

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q: If need technician to workshop to debug and teach, how to do?
A:We provide online guidance, or we sent technician to your factory. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Q. Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Q. What is your payment terms?
A1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.
2 : We accept 100% L/C at sight
3: We accept Western Union payments.
4 : Other payment terms you want to pay, please let me know and i will check and reply you.
