| Place of Origin: | CHINA |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | 1250/1500mm Cut to length Line |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 45,000-64,000USD |
| Packaging Details: | 40GP container, by Waterproof film. |
| Delivery Time: | 60 working days |
| Supply Ability: | 20 sets/month |
| After-sales Service Provided: | Video Technical Support,commissioning And Training | Name: | CNC Slitting Line Machine,China Automatic Steel Coil Strip Slitting Line Machine |
|---|---|---|---|
| Color: | Blue,As You Choose | Product Name: | High Precision Metal High Speed Slitting Line Tool |
| Material: | Stainless Steel And Cold Rolling Plate | Power: | 380V/50HZ/3 Ph |
| Thickness: | 0.3-3MM | Line Speed: | 25-100m/min, Different Types |
| Coil Width: | 1000-1550 Mm | Coil Weight: | 6-10 Tons |
| Type: | Steel Coil Slitting Line | ||
| Highlight: | 50HZ Cut To Length Line Machine,380V Cut To Length Line Machine |
||

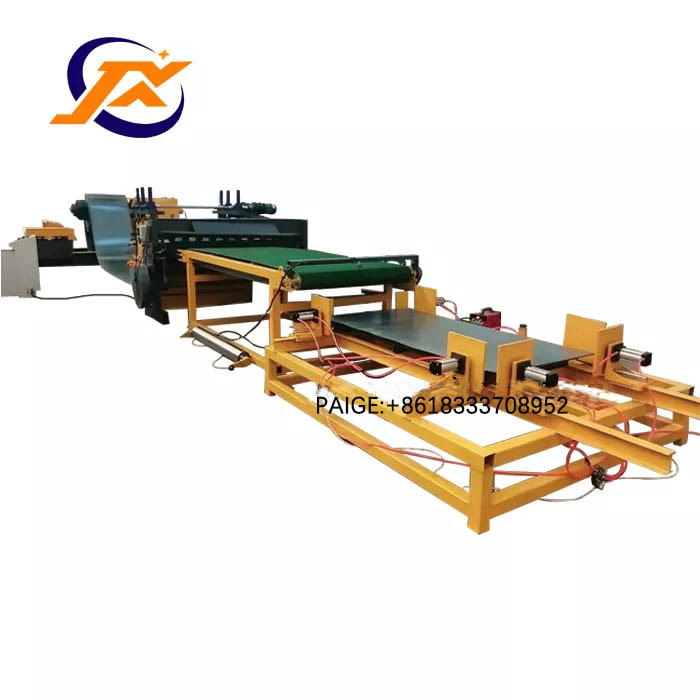

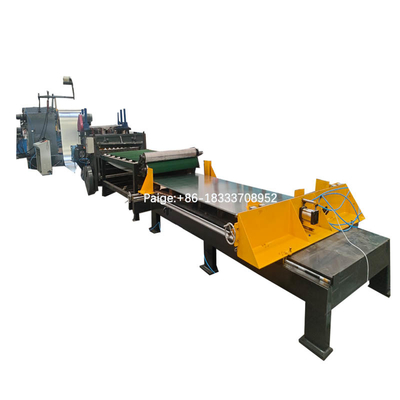

CUT TO LENGTH LINE MACHINE CUT TO LENGTH MACHINE MANUFACTURERS
1. Description of CUT TO LENGTH LINE MACHINE CUT TO LENGTH MACHINE MANUFACTURERS:
We have various levels of cut to length line:
1. simple cut to length line equip manual decoiler and no stacker or belt conveyor
2. High speed cut to length line by 5tons or 10 or 15 tons hydraulic decoiler---Leveling--auto shearing-- Auto stacker, Speed by 40m/min or more..
Botou Golden Integrity major in such steel cut to lenght line and slitting line for over 13 years, with rich experiance to meet customs different requests for speed, coil width and thickness.
We also have other products like: steel roofing, floor deck, lgs framing for vailla house with software, rolling shutter door etc,
2 Main components of high speed auto slitting line:
| No. | Items | Quantity | |||
| 1 | 10 tons decoiler with car | 1 | |||
| 2 | Cross bridge | 1 | |||
| 3 | Leveling, slitting, cross shearing machine | 1 | |||
| 4 | Scrap recoiler | 2 | |||
| 5 | Tensioning equipment | 1 | |||
| 6 | 10 tons recoiler with car | 1 | |||
| 7 | Slitting blade | 5 sets | |||
| 8 | spacers | some | |||
3. Technical details of automatic steel coil slitting line
| Components | Name | Description |
| 5tonsHydraulic decoiler | Main motor | 3kw |
| Frequency converter | 4kw | |
| Main shaft | Ǿ203mmx40mm Seamless tube | |
| ID range | Ǿ460mm--Ǿ540mm | |
| Upright steel | 20mm | |
| Base | Ǿ8x200mmx400mm square tube | |
| Weight | 3.1T | |
| Connect board | Hydraulic lift | |
| Correction station | ||
| Slitting machine | Main shaft | Ǿ100mm |
| motor | 5.5KW | |
| Frequency converter | 7.5KW | |
| Blade material | Gr12 20 pcs with all set mat | |
| weight | 4.5T | |
| Side steel machine | motor | 1.5kw |
| Frequency converter | 2.2kw | |
| weight | 0.8T | |
| Connect board | Hydraulic lift | |
| Cylinder | Ǿ80mmx*2000mm | |
| Recoiler | Loading capacity | 5T |
| Main motor | 15KW | |
| Frequency converter | 18.5kw | |
| Main shaft | Ǿ203x30mm seamless tube | |
| ID | Ǿ508mm | |
| All steel welded | ||
| Tightening cylinder | 140mm*route80mm | |
| weight | 5T | |
| Car motor | 1.5kw | |
| Car lifting cylinder | 10mm*route 40mm |
4. Production Flow:
6. FAQ
FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
