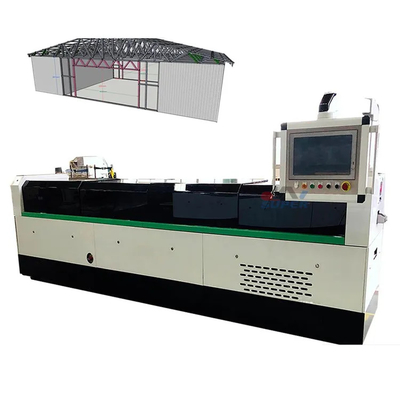

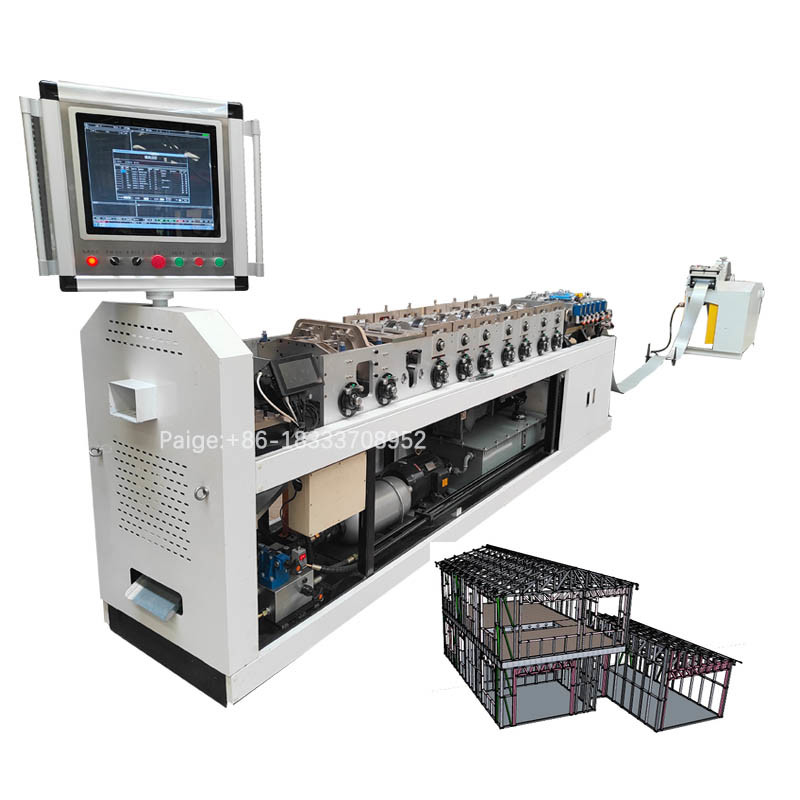

light gauge steel framing machine keel making machine WITH SOFTWARE

light gauge steel framing machine keel making machine WITH SOFTWARE

light gauge steel framing machine keel making machine WITH SOFTWARE
light gauge steel framing machine keel making machine WITH SOFTWARE
light gauge steel framing machine keel making machine WITH SOFTWARE
Product Details:
Place of Origin: Hebei
Brand Name: JCX
Certification: CE ISO
Model Number: C89/140 LGS STEEL FRAMING MACHINE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 45000-58900USD
Packaging Details: 20GP SEA worthy package or pack by wooden box if LCL with other goods
Delivery Time: 30-60 days
Payment Terms: L/C, T/T
Supply Ability: 1000
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Certification: ISO CE
Roller: DC53 Shaft: 50mm, 40Cr
PLC Brand: Mitsubishi After Warranty Service: Video Technical Support
Color: BLUE Use: Modular Building
Encoder: Omron

Product Description
C80/C140 Two in one interchangeable LGS steel framing machine for villa house with software

Our light gauge steel house framing is an innoviated machine with vertex BD program.

We have various types for C60/C70/C80/C89/90/140/150 OR EVEN C200
Single model or two /three types in one also avaialable.

Highlight of our machine
1)less power consumption(7.5kw servo motor power,3.75kw hydraulic pump)high productivity,:total line speed 50 meters/minute(punching speed:15 meters/minute),great breakthrough of traditional machine concept,machine will not be stuck while
forming,less rollers,but can make perfect product.
Easy to transport.
2)one encoder is used by the whole line,to control main machine and printer.only one signal is accepted to make sure punching and length accuracy.
3)we use synchronous drive to make sure that cutting,web rib,notch cutting are more precision.

light gauge steel framing machine keel making machine WITH SOFTWARE 0
00:03

00:34

light gauge steel framing machine keel making machine WITH SOFTWARE 1



Specification
Decoiler
max. weight capacity
3 tons

inner diameter
450-530mm

out diameter
1300 mm

type
electric decoiler

running method
automatic
Roll Forming System
weight
about 3 tons

size
4*0.8*1.8

total power
15kw

number of rollers
with 8 groups and 4 groups' correctional rolers

transmission method
gear and chain

brand of main motor
Invet

powerof main motor
7.5 kw

material of rollers
Cr12 with heat treatment

material of shaft
40 Cr with vacuum heat treatment

material of cutter
Cr12mov

productivity of machine
50m/minute with out punching, 0.5-0.6 tons/hour

tolerance of punching hole
+/- 3mm
length distance:+/-0.5mm
straightness accuracy: 0.3mm

brand of inject printer
SOJET double head printer

highlight
some parts of the machine we make innovation to make make use more long time and more stronger
Control system
Brand of PLC
Delta

Brand of speed controller
Delta

Brand of low voltage/switch/encoder/button
Schneider

design software
Vertex BD

task software
Self development program
Hydraulic system
power
5.5kw

oil tank
80L

brand of solenoid valve
HUADE
Receiving table
size
4 meters long
After-sale services
warranty
one year

training items in China freely
operation training and finished products installation training

machine maintenance
immediate feedback and use real-time communication to solve problems and engineer avaliable to overseas
Packing & Delivery
Sea worthy standard package: covered with plastic film, fixed into 20'gp container
light gauge steel framing machine keel making machine WITH SOFTWARE 2
