| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | 21*41 and 41*41 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD31000-32500 PER SET |
| Packaging Details: | the main machine and PLC and pump are covered with plastic films,the spare parts in carton. |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 30 SETS roll forming machine |
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Type: | Solar Panel Support Roll Forming Machine | Tile Type: | Roll Forming Machine |
| Warranty: | 12 Months | Certification: | CE/ISO |
| Raw Material: | PPGI PPGL GI GL | Voltage: | 380V/50HZ 3Phase(as Customer's Request) |
| Weight: | About 15 Tons | Dimension(l*w*h): | 12.5 M*1.3m*1.3m |
Full Automatic Solar Panel Support Roll Forming Machine Hardening Treatment Roller Material
1. Machine introduction
Our machine can produce the decoration buckles, light-gauge steel joists, shelf columns, door frame parts and other profiled accessories. It has the advantages such as high production efficiency, stable product sizes, less investments, etc.
Company according to the different industry use produce the different profiled accessory roll forming machines. It is widely used in the areas such as construction decorations, doors manufacturing, shelf fabrication, logistics, etc.
our factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as IAustralia, Malaysia, Indonesia, Vietnam, Thailand, Russia, Saudi Arabia, Singapore, etc.

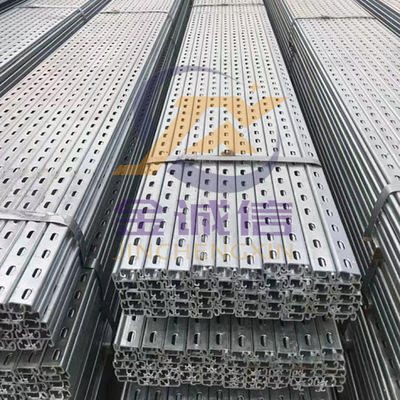

1. Profile drawing of solar panel support roll forming machine
2. Workflow of solar panel support roll forming machine
3. Main features of solar panel support roll forming machine
The advantages of solar panel support roll forming machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
4. Supplying components of complete machine
| NO. | Description | Quantity (set) | Remark |
| 1 | Manual Decoiler 3 Ton | 1 | |
| 2 | Guiding device | 1 | One complete unit as main machine |
| 3 | Forming system | 1 | |
| 4 | Transmission system | 1 | |
| 5 | Flying Saw Cut | 1 | |
| 6 | Support table | 2 | |
| 7 | Hydraulic station | 1 | |
| 8 | Control box | 1 | |
| 9 | Spare parts and tools | 1 | As attaching list |
| 10 | Servo motor punching machine | 1 |

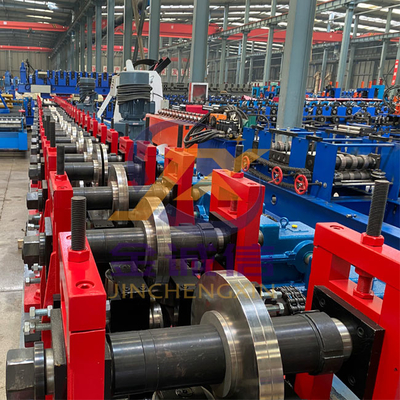

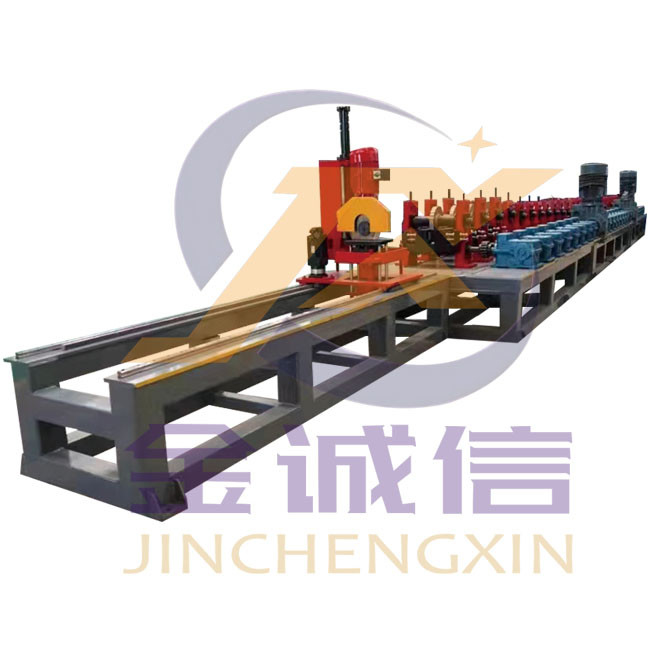

5. Detailed Images of solar panel support roll forming machine
|
Machine Specifications |
|
|
Weight |
About 12 tons |
|
Size |
About 15*1.2*1.2m(length x width x height) |
|
Color |
Main color: blue or as your requirement |
|
Warning color: yellow |
|
|
Suitable Raw Material |
|
|
Material |
zinc magnesium aluminum, galvanized sheet ,black belt |
|
Thickness |
2.0 mm |
|
Yield Strength |
235Mpa |
|
Main Technical Parameters |
|
|
Quantity of forming rollers stations |
18 |
|
Diameter of forming rollers shafts |
80mm |
|
Roll Forming Speed |
15-23m/min |
|
Forming rollers material |
No.45 steel, coated with chromed treatment |
|
Cutter material |
Cr12MoV steel, with quenched treatment |
|
Controlling system |
PLC and Converter |
|
Electric Power requirement |
Main motor power: double 15kw hydraulic motor |
|
Electric voltage |
According to customer’s requirement |
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
8.Packing and delivery
