| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-USD32500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Type: | Steel Frame & Purlin Machine | Usage: | Building Material Shops, Manufacturing Plant |
|---|---|---|---|
| Production Capacity:: | 15-20m/min | Roller Material: | GCr15 Roll Forming Machine |
| Roller Station: | 18 Stations Roll Forming Machine | Shaft Material: | 40Cr Roll Forming Machine |
| Dimension(L*W*H): | 10*1.5*1.8M | Machinery Test Report: | Provided |
Building Construction Automatic Channel Profile CZ Purlin Roll Forming Machine

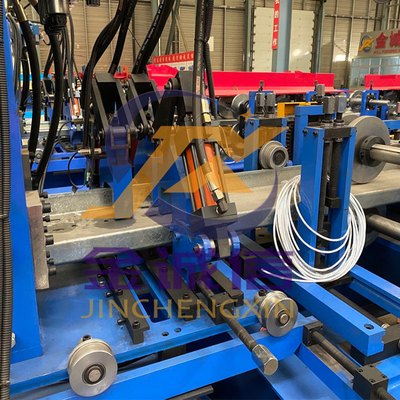

1. Machine picture of CZ Purlin roll forming machine
2. Main components of CZ purlin roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
3. Technical details of CZ Purlin roll forming machine:
| Machine Specifications | |
| Weight | About 9.5tons |
| Size | About 10.1*1.2*1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0 mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12MoV steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 22kw hydraulic motor |
| Electric voltage | According to customer’s requirement |
4. Production workflow of CZ Purlin roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Description of CZ purlin roll forming machine:
The CZ profile produced by the CZ profile steel forming equipment is used as the profile produced by the steel structure purlin to be flat,
and the CZ profile forming equipment is cut by the CZ profile steel machine.
Our CZ purlin roll forming machine adopts imported high-precision computer control cabinet and imported electrical components.
It is convenient and easy for users from all countries to use this language. Different work data can be set according to customer needs.
Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!
6. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
7. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
