C Purlin: A=80-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm
Z Purlin: A=120-300mm ; B=40-80mm ; C=10-20mm ; T=1.5-3mm

|
| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE and ISO |
| Model Number: | CZ80-300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD30000-USD32500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| After-sales Service Provided: | Engineers Available To Service | Voltage: | 380V 50Hz 3phases Or As Customer Request |
|---|---|---|---|
| Cutting Blade Material: | Cr12MoV ,specail Treatment | Condition: | New Machine |
| Cutting: | Automatic Hydraulic Cutting | Name: | C Z Purlin Roll Forming Machine PLC Control |
| Shaft Material: | 40Cr Steel | Usage: | Build The Workshop As Purlin |
| Power(w): | 22 KW Hydraulic Motor | Warranty: | 15 Months Guarantee And Life Long Tracking Service |
| Dimension(l*w*h): | 9.5*2.2*2.0 | Control System: | PLC Control System(brand As Customer Requirement) |
| Decoiler: | Manual Decoiler Can Bear 7 Tons Steel Coil | Weight: | 9.5T |

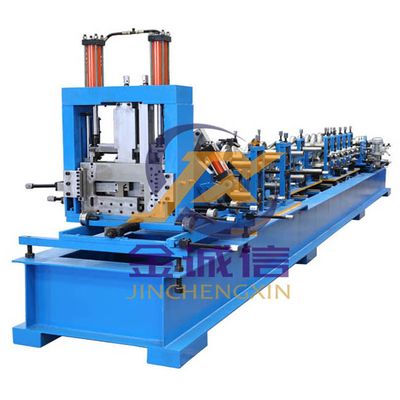

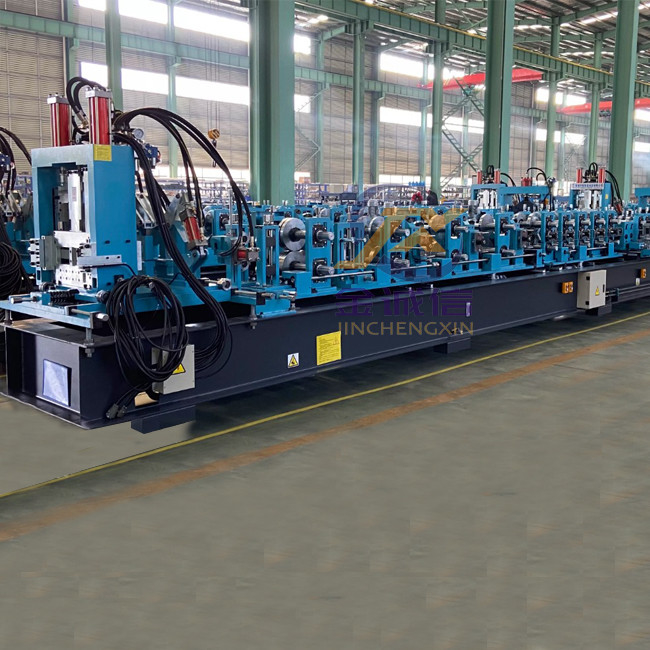

JCX Quick Size Change Building Material Machinery CZ Purlin Roll Forming Machine
1. Profile drawing of CZ Purlin roll forming machine
2. Technical data of CZ purlin roll forming machine
Suitable for material with thickness 1-3mm
Shafts manufactured from 45#,
Main shaft diameter=φ80mm,precision machined
Motor driving,Gear chain transmission,
16 rollers to form and 7 rollers for straightening and levelling
Main motor=22KW ,
Frequency speed control.
Forming speed approx.18-25m/min
3. Description of CZ Purlin roll forming machine
The CZ profile produced by the CZ profile steel forming equipment is used as the profile produced by the steel structure purlin to be flat,
and the CZ profile forming equipment is cut by the CZ profile steel machine.
Our CZ purlin roll forming machine adopts imported high-precision computer control cabinet and imported electrical components.
It is convenient and easy for users from all countries to use this language. Different work data can be set according to customer needs.
Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!
4. Production workflow of CZ Purlin roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Main components of CZ purlin roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
6. Technical details of CZ Purlin roll forming machine:
| Machine Specifications | |
| Weight | About 9.5tons |
| Size | About 10.1*1.2*1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5-3.0 mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12MoV steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 22kw hydraulic motor |
| Electric voltage | According to customer’s requirement |
7. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
