| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | roof ridge cover roll forming machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roof Ridge Cap Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases | Condition: | New |
| Cutting Blade Material: | Cr12 Quenched | Cutting: | Hydraulic Cutting |
| Shaft Material: | High Grade No.45 Forged | Warranty: | 12 Months,and Life Long Tracking Service |
| Control System: | PLC Control System(brand As Requirement) | Weight: | 3.4T |
| Length And Piece Measure: | Omron Encoder |
High quality and good price China factory roof tile profile ridge capping roll forming machine
1. Description of roof cover roll forming machine:
Metal Angle Ridge Cap Roof Roll Forming Machine with Good Price is one most popular type of roll forming machines. It makes different shape of color steel ridge cap sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 400mm, thickness range is from 0.3mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 18-25m/min, PLC with touch screen operation make the machine simple and easy for usage.
2. Technical details of door shutter roll forming machine:
| Machine Specifications | |
| Weight | About 3.2tons |
| Size | About 6mx0.8mx1.2m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 11-12 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 18-25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
| No. | Each Part Of The Line | Quantity | Function And Usage |
| 1. | 3 Ton Uncoiler / Decoiler | 1 set | Hold the steel coils and unwind the coils |
| 2. | Ridge Cap Cold Roll Former | 1 set | Roll form the material into required profile |
| 3. | Punching and Cutting Device | 1 set | Punch ribs on formed ridge cap and cut to desired length |
| 4. | Run Out Table | 2 sets | Support ridge cap when it exits the machine |
| 5. | Electric Control Cabinet | 1 set | Highly automatic with PLC control system |
| 6. | Hydraulic Station | 1 set | Hydraulically powered for punching and cutting |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
This machine is widely used in the production of the ridge caps

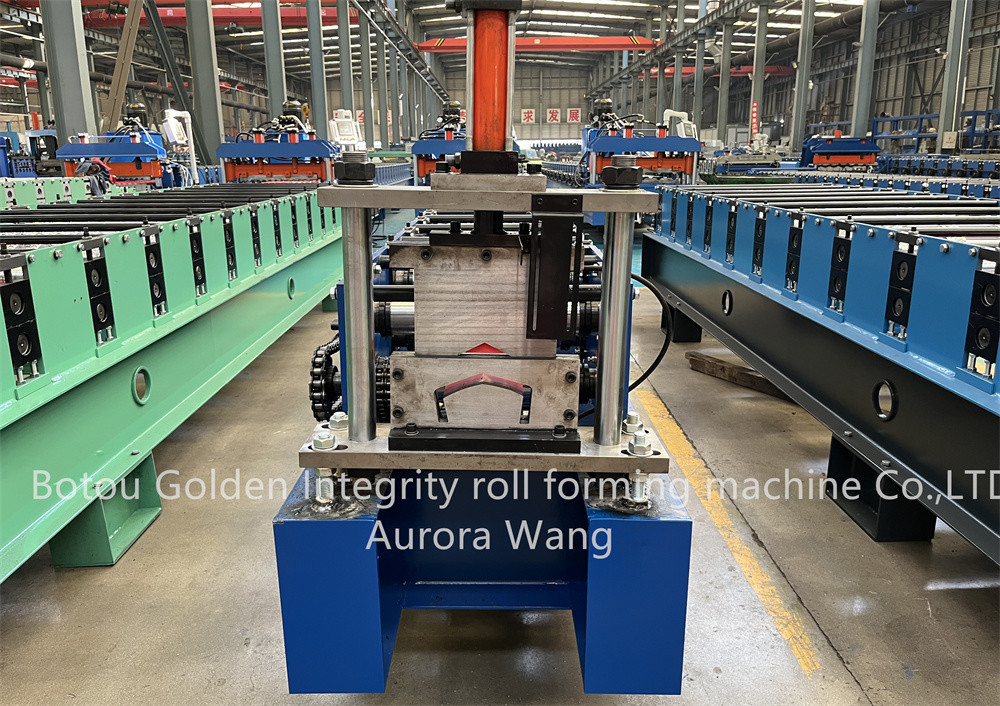

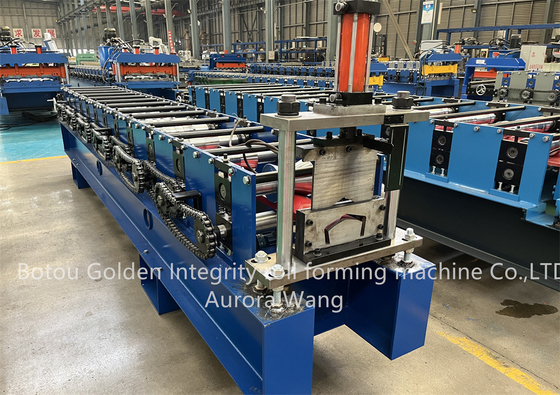

7. Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
