380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	4141 2141

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	according to customer profile drawing, we offer the best price for you
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Post Punch And Track Cutting Solar Strut Channel Roll Forming Machine Long Life Time	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Voltage:	380V 50Hz 3phases	Condition:	New
Cutting Blade Material:	Cr12 Quenched	Cutting:	Hydraulic Cutting
Name:	Solar Panel Support Uni Strut C Channel Machine	Profile Size:	41mm41mm; 4172mm
Usage:	Solar Panel Support Installation	Production Capacity::	12-23 Meters Per Minute
Warranty:	15 Months And Life Long Tracking Service	Machine Dimension(lwh):	9.81.31.3 M
Control System:	PLC Control System	Weight:	9.8T
Control Box Llanguage:	Chinese And English
High Light:	380V Roll Forming Machine For Solar Structure , 380V Unistrut Channel Roll Forming Machine , 41*21mm unistrut channel roll forming machine

41*41mm 41*21mm Solar Panel Support Uni Strut C Channel Roll Forming Machine

1.Profile drawing of solar panel support C channel roll forming machine

380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine 0

2. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine 1

3. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

4. Technical details of solar panel support uni strut C channel roll forming machine:

Article No.	Item Name	Specification
1	Width of feeding material	<1000 mm coil sheet
2	Thickness of feeding material	max 4.0 mm coil sheet
3	Roller station	8-18 stations
4	Shaft Diameter	55-95 mm
5	Productivity	8-15 m/min
6	Rollers' material	Bearing steel
7	Shaft material	45# steel
8	Weight	9 ton
9	length	8-11 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	8 tons
13	Motor	22-30 kw
14	Driving way	Chain transmission
15	Chain size	1.5-2 inch
16	Cutting system	Hydraulic cutter

5. Description of solar panel support uni strut C channel roll forming machine:

Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.

Solar Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners.

Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

6. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

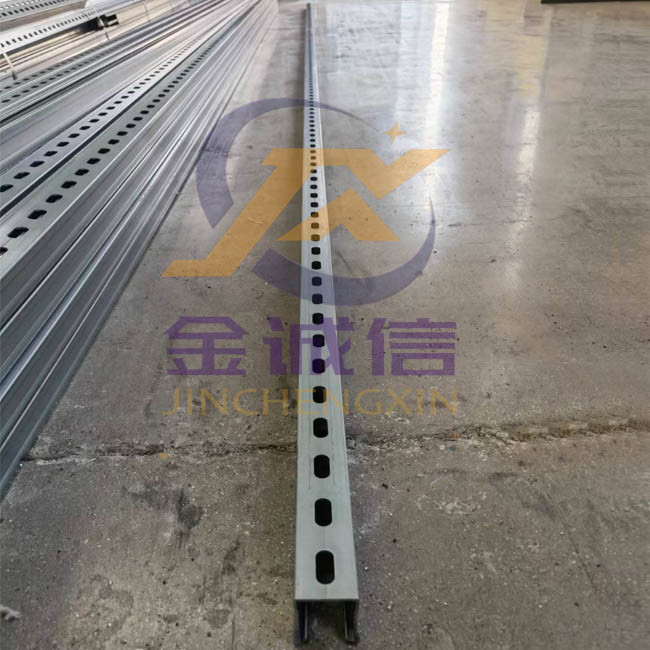

7. Application

This machine is widely used in the installation of solar panel support.

380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine 2

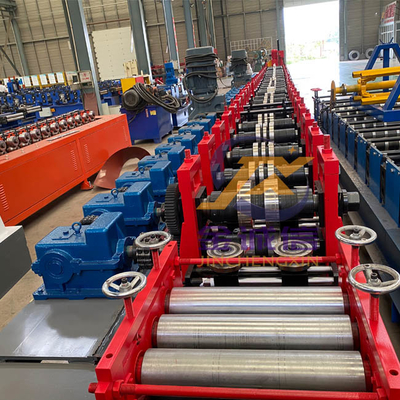

8.Machine photo

380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine 4

380V Roll Forming Machine For Solar Structure 41*21mm Unistrut Channel Roll Forming Machine 5

9. FAQ

1. Does your company can customized my needed profile?

Yes sir/Madam. Our machines are all customized according to customers'

requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?

Yes sir/ Madam. If you don't have profile drawings, the solutions have:

2.1 : Provide me with your profiles' pictures ;

2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you

related profile drawings.

2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?

Yes sir/Madam. Our advantages have :

3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best

machine solution.

3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine

orders' making and guarantee the delivery.

3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a

pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.

3.4 : We are a golden integrity roll forming machine company. About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same with my wanted ?

Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?

One machine is okay.

6. What is your payment terms?

6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.

6.2 : We accept 100% L/C at sight

6.3: We accept Western Union payments.

6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
