Name: C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support
Brand: Botou Golden Integrity Roll Forming Machine Co., Ltd
SKU: 41*41 21*41
Availability: InStock

Home Products Roll Forming Machine For Solar Structure

C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	4141 2141

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	according to customer profile drawing, we offer the best price for you
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Raw Material:	Galvanized Steel	Thickness:	1-2.5mm
Cutting:	Automatic Hydraulic Cutting	Name:	Solar Panel Support C Channel Machine
Final Products Size:	41mm41mm; 4121mm Or Customized	Usage:	Solar Panel Support Installation
Machine Speed:	10-23 Meters Per Minute	Warranty:	One Year,and Life Long Tracking Service
Control System:	PLC Control System	Control Box Llanguage:	Chinese And English
Highlight:	C Channel Unistrut Roll Forming Machine , Unistrut Roll Forming Machine 15m/Min

Automatic Solar Strut Channel Rolling Machine Uni strut C Channel Roll Forming Machine

1.Profile drawing of solar panel support C channel roll forming machine

C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support 0

2. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

3. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

4. Technical details of solar panel support uni strut C channel roll forming machine:

Article No.	Item Name	Specification
1	Width of feeding material	<1000 mm coil sheet
2	Thickness of feeding material	max 4.0 mm coil sheet
3	Roller station	8-18 stations
4	Shaft Diameter	55-95 mm
5	Productivity	8-15 m/min
6	Rollers' material	Bearing steel
7	Shaft material	45# steel
8	Weight	9 ton
9	length	8-11 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	8 tons
13	Motor	22-30 kw
14	Driving way	Chain transmission
15	Chain size	1.5-2 inch
16	Cutting system	Hydraulic cutter

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

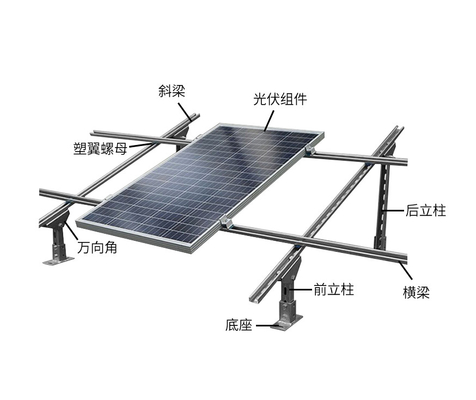

6. Application

This machine is widely used in the installation of solar panel support.

C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support 1

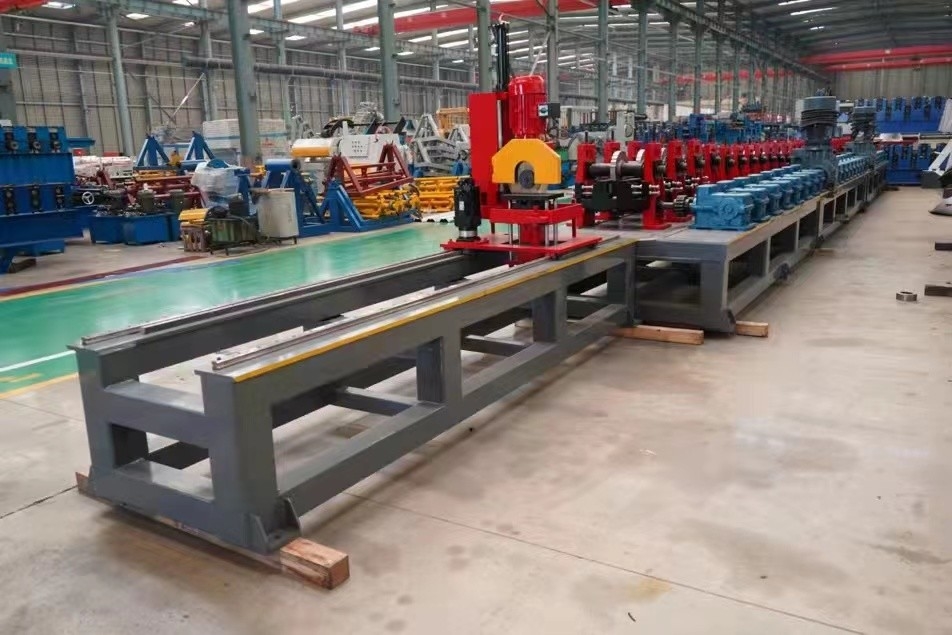

7.Machine photo

C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support 3

C Channel Unistrut Roll Forming Machine 8-15m/min for solar panel support 4

8. FAQ

1. Does your company can customized my needed profile?

Yes sir/Madam. Our machines are all customized according to customers'

requests. Just provided me your needed profile drawing and we can give you our professional machine design solution.

2. If i don't have profile drawing, but i want to buy one machine, can you help me?

Yes sir/ Madam. If you don't have profile drawings, the solutions have:

2.1 : Provide me with your profiles' pictures ;

2.2 : Tell me your country and i will check if we sell similar / related profile machines to your there. I will recommend you

related profile drawings.

2.3 : Tell me any information you have and it will be helpful for me to clear your needed profiles. and then quote you.

3. What your company advantages?

Yes sir/Madam. Our advantages have :

3.1: We are a 15 years big factory. We have abundant machine designing and making experience. We can give you the best

machine solution.

3.2: We have completed production system. And more than 20 sets of CNC machines which can support lots of machine

orders' making and guarantee the delivery.

3.3 : We have 20 years foreign trade exported experience. Our sellers abundant experience can guarantee you will have a

pleasant purchase and use of the machine and after-sales experience. And cooperated with us , you can get more details about the machine, including those problems that you can't think of but we can think of, we can tell you to ensure that you can buy the most suitable machine for you.

3.4 : We are a golden integrity roll forming machine company. About the after-sale services, no worries, we will responsible for you.

4. Will i receive a good machine ? Same with my wanted ?

Yes sir/Madam. We will do the machine according to your profile drawing . About the profile drawing, we will confirm with you again before producing your machine. Then, after the machine finished, we will test the machine and guarantee the machine you received is a good machine. Because after you satisfied with the machine, and then you pay balance.

5. What is the machine minimum quantity?

One machine is okay.

6. What is your payment terms?

6.1 : We accept 30% T/T as deposit and 70% T/T as balance before shipping.

6.2 : We accept 100% L/C at sight

6.3: We accept Western Union payments.

6.4 : Other payment terms you want to pay, please let me know and i will check and reply you.
