23M/MIN Roll Forming Machine For Solar Structure PLC C Channel Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	4141 2141

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	according to customer profile drawing, we offer the best price for you
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Material Thickness:	1.5-2.5mm	Cutting Type:	Automatic Hydraulic Cutting
Product Name:	Automatic C Channel Roll Forming Machine	Machine Speed:	8-25 Meters Per Minute
Raw Material::	Galvanized Steel Strip	Drive Type:	Gearbox Drive
High Light:	23M/MIN Roll Forming Machine For Solar Structure , 23M/MIN C Channel Forming Machine , PLC C Channel Forming Machine

23M/MIN Full Automatic Solar Structure C Channel Roll Forming Machine PLC Control

1.Machine picture of solar panel support C channel roll forming machine

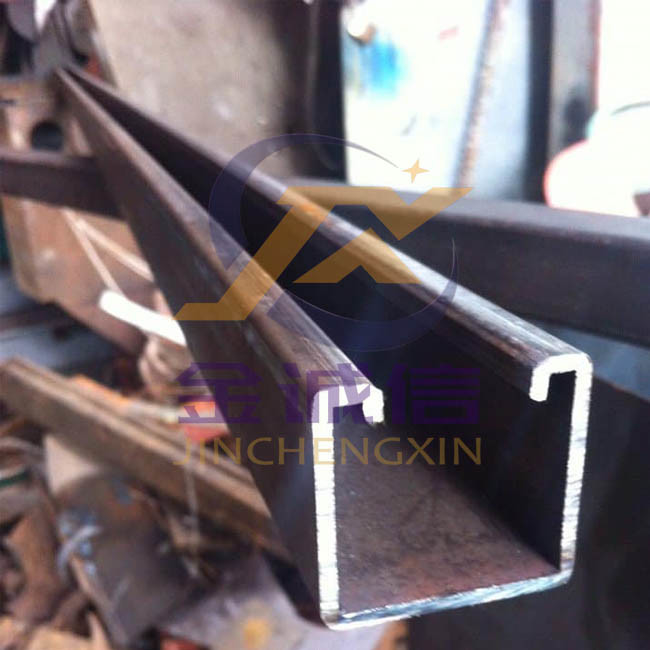

23M/MIN Roll Forming Machine For Solar Structure PLC C Channel Forming Machine 0

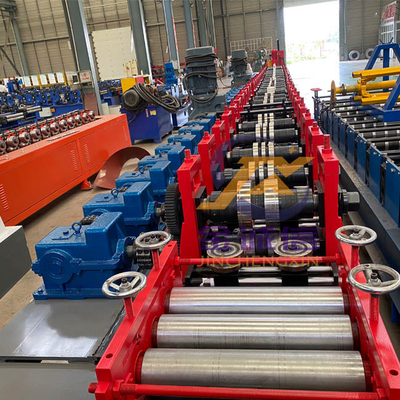

23M/MIN Roll Forming Machine For Solar Structure PLC C Channel Forming Machine 1

2.Description of solar panel support C chaneel roll forming machine

Solar Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners. Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

23M/MIN Roll Forming Machine For Solar Structure PLC C Channel Forming Machine 2

3.Profile drawing of solar panel support C channel roll forming machine

23M/MIN Roll Forming Machine For Solar Structure PLC C Channel Forming Machine 3

4. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

5. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

6. Technical details of solar panel support uni strut C channel roll forming machine:

1. Material thickness range:1.5-2.5mm

feeding width: 90-230mm

2. Main motor power: 22 k w
3. Forming speed:8 m/min

4. Shearing method: Hydraulic shearing.
5. Hydraulic station power:11 KW

6. Quantity of rollers:24 rollers

7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm

10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)

7. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support
