21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE
Model Number:	4141 2141

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	according to customer profile drawing, we offer the best price for you
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Electric Voltage:	380v,50hz,3phase	High Light:	Automatic Roll Forming Machine
Name:	Solar Strut Channel Roll Forming Machine , Blue Portable Roll Forming Machine	Profile:	4141 Or 2141 Or Customized
Machine Speed:	8-23 Meters Per Minute	Raw Material::	Galvanized Steel Or Black Belt
Machine Color:	Blue Or Customized
High Light:	21*41 Roll Forming Machine For Solar Structure , Solar Structure Portable Roll Forming Machine , Blue Portable Roll Forming Machine

Solar Strut Channel Roll Forming Machine , Blue Portable Roll Forming Machine

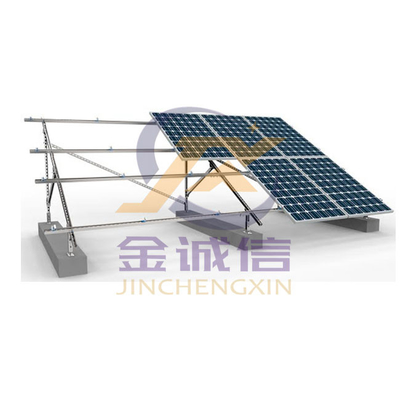

1.Description of solar panel support C chaneel roll forming machine

Solar Strut channel has been using for many years while installing solar power.

The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners.

Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine 0

21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine 1

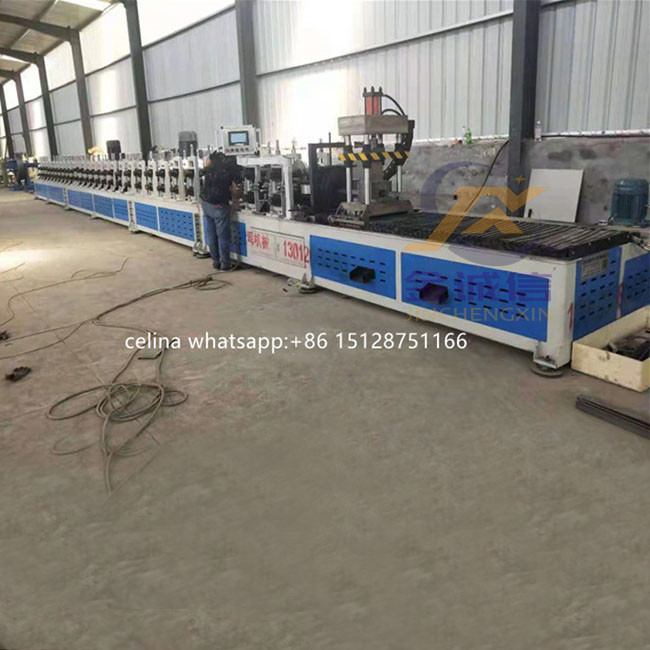

2.Machine picture of solar panel support C channel roll forming machine

21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine 2

21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine 3

3. Production Flows of solar panel support uni strut C channel roll forming machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

21*41 Roll Forming Machine For Solar Structure Blue Portable Roll Forming Machine 4

4. Technical details of solar panel support uni strut C channel roll forming machine:

Article No.	Item Name	Specification
1	Width of feeding material	<1000 mm coil sheet
2	Thickness of feeding material	max 4.0 mm coil sheet
3	Roller station	8-18 stations
4	Shaft Diameter	55-95 mm
5	Productivity	8-15 m/min
6	Rollers' material	Bearing steel
7	Shaft material	45# steel
8	Weight	9 ton
9	length	8-11 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	8 tons
13	Motor	22-30 kw
14	Driving way	Chain transmission
15	Chain size	1.5-2 inch
16	Cutting system	Hydraulic cutter

5. Main components of solar panel support uni strut C channel roll forming machine

Decoiler	1 Set
Guiding Equipment	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

6. Advantages

- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table

- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.

- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.

7. After-sale service

A. Foreign debugging	If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $100 per day
B. Guarantee period	The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training	During installation and adjustment of the equipment, our engineers shall provide the training to buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services	Life time services to every customer.
