Home Products Light Gauge Steel Framing Machine

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

Product Details:

Place of Origin:	Hebei
Brand Name:	JCX
Certification:	CE ISO
Model Number:	light keel dyywall profile machine

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	8000-13999USD
Packaging Details:	20GP SEA worthy package or pack by wooden box if LCL with other goods
Delivery Time:	30-60 days
Payment Terms:	L/C, T/T
Supply Ability:	1000 set/year

Contact Now

Detailed Product Description

After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Certification:	ISO CE
Roller:	Cr12	Shaft:	50mm, 45#
PLC Brand:	Mitsubishi	After Warranty Service:	Video Technical Support
Color:	BLUE AND WHITE	Use:	Villa House Complete House Frame Struture
Encoder:	Omron	Cutting Type:	Hydraulic Cutting

Product Description

LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE

It's already our sixth gerneration lgs framing machine after several years of improvement.

We adopt Vertex BD software,

And it have
8 working positions (pipeline hole, web hole, small side cutting, fixed hole, chamfering, web shrinkage hole, shearing, bolt hole, etc.)
Our lgs framing machine can make comple house sturcture include house wall, roof, window, floor etc.

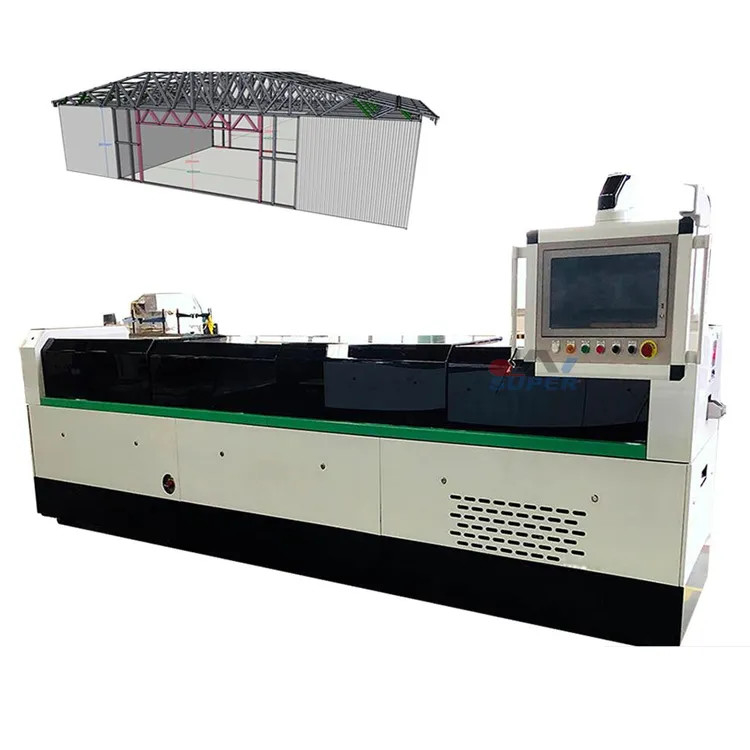

2. Our Light guage steel framing machine pictures:

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE 0

3. Parameters of our light gauge tseel frame machine:


			C89 Equipmemt Parameters


			Profile Type
			C shape 89*41mm
			Operation System:
			Vertex


			Standard Speed
			50m/min
			Main motor power
			7.5kw


			Product Accuracy
			0.5mm
			Total power
			14.5kw


			Coil width
			182mm
			Hydraulic volumn
			120L


			Steel thickness
			0.75-1.2mm
			Machine weight
			4500KG


			Punching dies
			Dimple hole, chamfer cut, web notch, lip cut, service hols, swage, shear, bolt hole


4. Working flow chart:

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE 1

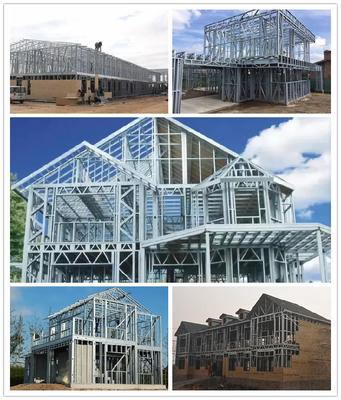

5. Application of light guage steel frame:

C89/C140LIGHT GAUGE STEEL CONSTRUCTION STEEL FRAME MACHINE LIGHT STEEL KEEL ROLL FORMING MACHINE 2

RFQ:

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running

in order to keep your business running.

2), Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly

3), Q: How does your factory do regarding quality control?

A: Quality is priority. MACTEC People always attach great importance to quality control from the very beginning to the end of the

production. Every product will be fully assembled and carefully tested before it's packed for shipment.

4), Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components

5), Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. MACTEC is ALIBAB’s Gold supplier with BV assessment. If

you check with ALIBABA, you will see that we have never got any complaint from our customers

Tag:

Villa Light Gauge Steel Framing Machine,

7.5kw Light Gauge Steel Framing Machine,

380V Keel Roll Forming Machine
