20pcs/min Cut To Length Line Machine width 1500mm Steel Sheet Slitting Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	JCX
Certification:	CE ISO
Model Number:	1250/1500mm Cut to length Line

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	35,000-64,000USD
Packaging Details:	40GP container, by Waterproof film.
Delivery Time:	40-60 working days
Supply Ability:	20 sets/month

Contact Now

Detailed Product Description

After-sales Service Provided:	Video Technical Support,commissioning And Training	Name:	AUTOMATIC CUT TO LENGTH MACHINES STEEL SHEET SLITTING MACHINE
Color:	Grey Or As You Required	Product Name:	High Precision Metal High Speed Slitting Line Tool
Material:	Stainless Steel And Cold Rolling Plate	Power:	380V/50HZ/3 Ph
Thickness:	0.15-3MM	Line Speed:	25m/min, 50m/min. 80m/min, 100m/min
Coil Width:	250-1500 Mm	Coil Weight:	6-10 Tons
Type:	Steel Coil Leveling-auto Shearing-Auto Stacker
Highlight:	20pcs/Min Cut To Length Line Machine , Cut To Length Line Machine 1500mm , 1500mm Steel Sheet Slitting Machine

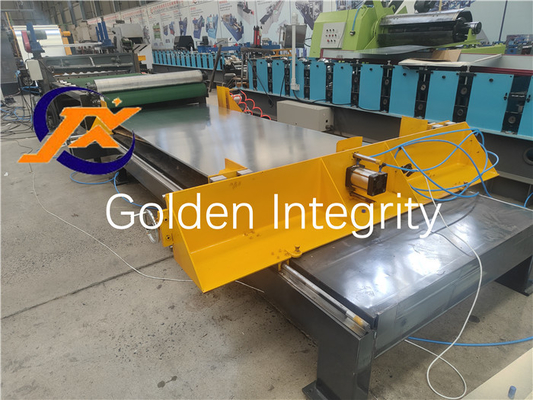

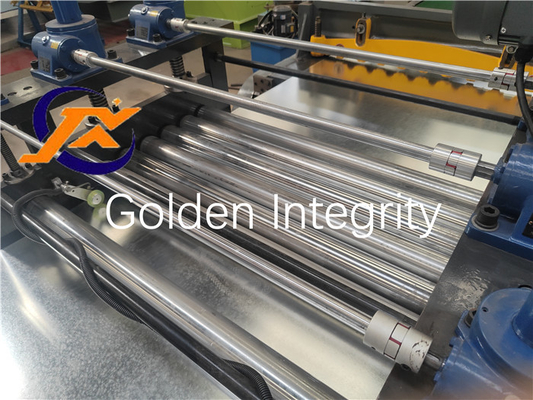

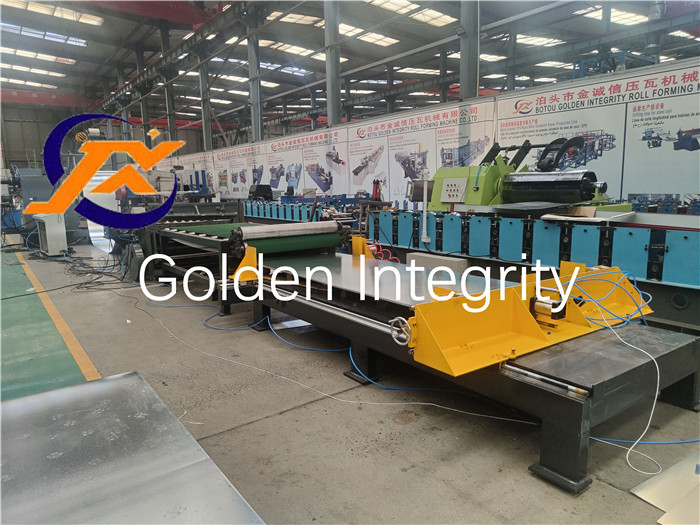

AUTOMATIC CUT TO LENGTH MACHINES STEEL SHEET SLITTING MACHINE

1. Description of AUTOMATIC CUT TO LENGTH MACHINES STEEL SHEET SLITTING MACHINE:

Our automatic Cut to Length line is consist of Hydraulic decoiler--Leveling machine--Auto shearing machine--Conveyor belt--Auto stacker
It can reach 20pcs/min( 2m/pcs)

By auto stacker, it increase productivity, saves labot a lot.

2 Main components of high speed auto slitting line:

No.	Items	Quantity
1	10 tons decoiler with car or 5tons	1
2	Cross bridge	1
3	Leveling, slitting, cross shearing machine	1
4	Scrap recoiler	2
5	Tensioning equipment	1
6	10 tons recoiler with car or 5tons recoiler	1
7	Slitting blade	5 sets
8	spacers	some

3. Technical details of automatic steel coil slitting line

Components	Name	Description
5tonsHydraulic decoiler	Main motor	3kw
	Frequency converter	4kw
	Main shaft	Ǿ203mmx40mm Seamless tube
	ID range	Ǿ460mm--Ǿ540mm
	Upright steel	20mm
	Base	Ǿ8x200mmx400mm square tube
	Weight	3.1T
Connect board	Hydraulic lift
Correction station
Slitting machine	Main shaft	Ǿ100mm
	motor	5.5KW
	Frequency converter	7.5KW
	Blade material	Gr12 20 pcs with all set mat
	weight	4.5T
Side steel machine	motor	1.5kw
	Frequency converter	2.2kw
	weight	0.8T
Connect board	Hydraulic lift
Connect board	Cylinder	Ǿ80mmx*2000mm
Recoiler	Loading capacity	5T
	Main motor	15KW
	Frequency converter	18.5kw
	Main shaft	Ǿ203x30mm seamless tube
	ID	Ǿ508mm
		All steel welded
	Tightening cylinder	140mm*route80mm
	weight	5T
	Car motor	1.5kw
	Car lifting cylinder	10mm*route 40mm

4. Production Flow:

6. FAQ

FAQ

Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.

Q: Do you sell only standard machines?
A: No. Most machines are made to order.

Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.

Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
