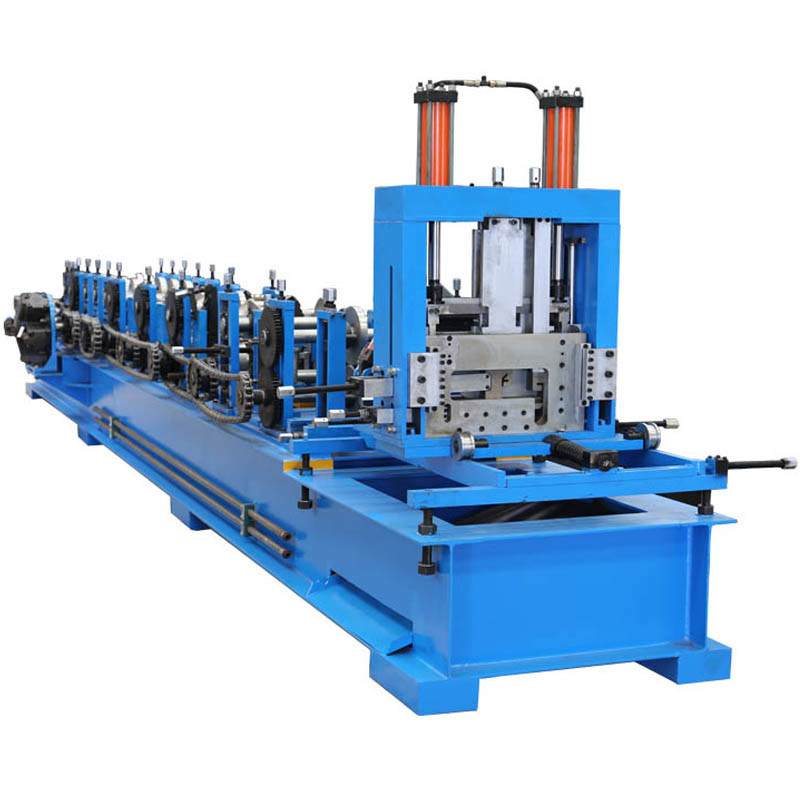

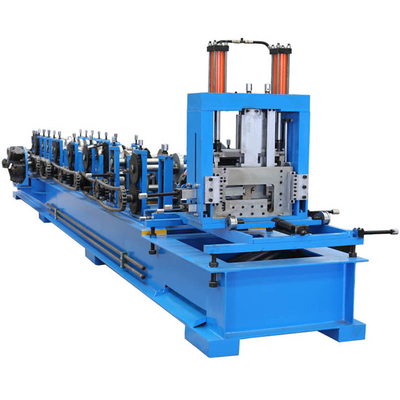

Interchangeable 23 Stations 3.0mm Cz Purlin Machine Panasonic PLC Inverter

Interchangeable 23 Stations 3.0mm Cz Purlin Machine Panasonic PLC Inverter

1. Description of CZ purlin roll forming machine:

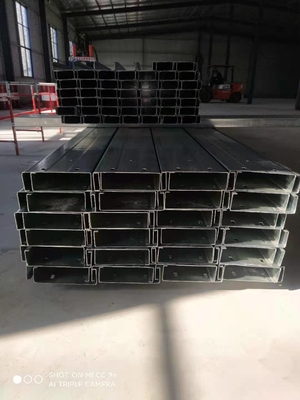

For the customers, Investment on two roll forming machines (one Cee shaped section channel roll forming machine and one Zed shaped section channel roll forming machine) is not ideal solution to contractors or distributors. A c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.

The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine

Using frequency conversion speed regulation, good production stability. Save time, effort, and effort!

2. Workflow:

De-coiler→Guide→Pre-Cutting→Roll Forming→Punching hole→Cutting→Receiving

3.Profile drawing of CZ Puriln roll forming machine:

4.Main components of CZ purlin roll forming machine

4.1 3tons Manual Uncoiler: 1 Set

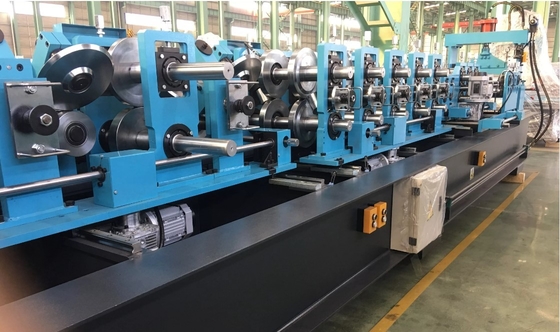

4.2: Main of roll forming machine: 1 Set

4.3: Hydraulic motor station: 1 Set

4.4: Hydraulic Cutting device: 1 Set

4.5: Support table: 1 Set

4.6: PLC control cabinet: 1 Set

5. Technical details of CZ Purlin roll forming machine:

6.  Main features of interchange cz cold rolled purlins machine

7. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

8. FAQ

1). Q: How to acquire for service support?

A:JCX-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including before-sale technical counseling, field installation, operate technical training, application solution training, and troubleshooting support, etc.

2). Q: After purchase Lebron-Machinery’s machine, what kind of training could JCX-Machinery provide?

A: JCX-Machinery will provide 7 days’ free field training. The training place can be in JCX-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.

3). Q: What kind of warranty do JCX-Machinery’s gutter machine provide?

A: Except for the consumables, the whole machine has a one-year limited warranty.

4). Q: After buying JCX-Machinery’s equipment, is there technician in charge of supporting on-site installation?

A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support for the installation and collaboration when the machine arrives. If the device is sold by JCX-Machinery’s distributors, JCX will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives.

1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
