| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Light Gauge Steel Framing Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Light Gauge Steel Framing Machine | After Warranty Service: | Line Support Video |
|---|---|---|---|
| After-sales Service Provided: | Online Support Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*20 Feet |
JCX High Quality Light gauge villa steel structure keel framing machine With Low Price
1. Description of light gauge steel framing machine:
2. Technical details of light gauge steel framing machine:
| Item | Description |
| Automatic Decoiler | |
| Loading Weight | 3000kgs |
| Coil Inner Diameter | φ430~508mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.75~1.2mm |
| Profile description | |
| C Profile size | 89*41*13mm |
| Roll Forming Machine | |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: high quality GCr15 Bearing steel |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp |
| Control System | |
| Control Device | One Lenovo laptop, a control box inside of based frames of the machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back or stop |
| Main brand | PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron) Servo Motor(Xinjie) |
| Motor and hydraulic System | |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table | |
| Length | 3M with side pnematic support |
| General introduction | |
| 1. Windows system touch panel. Quick importing NC instructions Via network or USB interface. | |
| 2.Visual work process monitoring | |
| 3.Vertex BD Software | |
| 4.German Bosch Rexroth hydraulic system. Quick loading and unloading mould design | |
| 5.High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing | |
| 6.Built-in maintenance free ink jet printer | |
| 7.Perfect forming. Accurate sizing | |
3. Main components of light gauge steel framing machine:
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages:
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application:
This machine is widely used in the production of the ridge caps

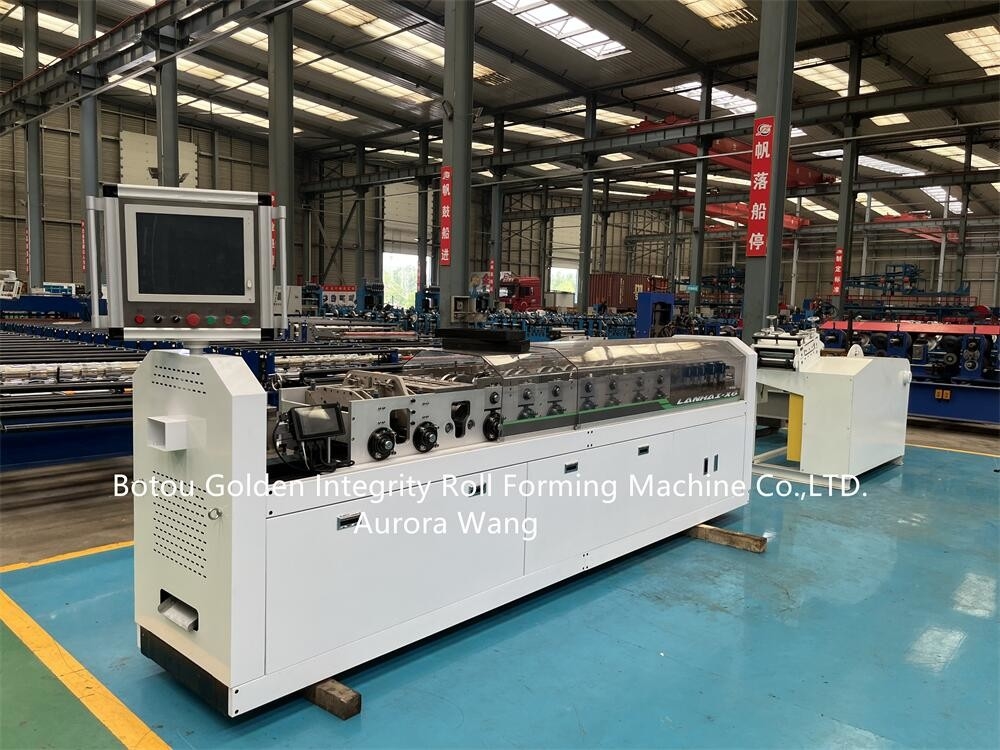

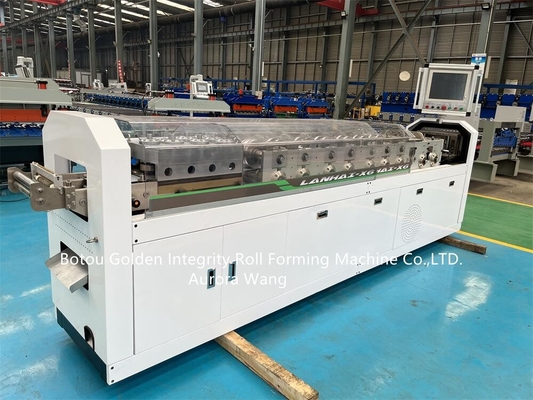

7. Product photo:
8. FAQ:
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
