| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Double Layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD11000-USD12000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Double Layer Forming Machine | Voltage: | 380V |
|---|---|---|---|
| Cutting System: | Hydraulic Cutting | Warranty: | 12 Months |
| Certification: | CE ISO | Usage: | Metal Roof Or Wall |
| Tile Type: | Colored Steel | Control System: | PLC Delta |
| Condition: | New | After-sales Service Provided: | Door To Door |
Color steel double layer roll forming machine fully automatic 0.3mm-0.8mm
1. Description Of Double Layer Roll Forming Machine
One double layer roofing sheet roll forming machine can make two types of roof sheet. The double-layer roof panel roll forming machine can save your factory space and save tyour money. The doubel layer roll forming machine is a good choice for you.We can customize many type double profile for you to choose:
Trapezoidal roofing + Trapezoidal roof
Trapezoidal roofing + corrugated roof
Trapezoidal roof + glazed tile roofing
corrugated roof + corrugated roofing
corrugated roof + + glazed tile roofing
If you are interest in this machine ,please contact me .
2. Technical Details Of Double Layer Roll Forming Machine
| Double layer Machine Specifications | |
| Weight | About 6tons |
| Size | About 5.6m x 1.2mx1.2m(length x width x height) |
| Color | Main color: green or as your need |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI PPGI GL PPGL, color steel |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | up 14 + down 17 |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | 45# steel, coated with chromed treatment |
| Cutter material | Cr12MOV, with quenched treatment |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
3. Main Components Of Double Layer Roll Forming Machine
| Manual Decoiler | 1 Set |
| Feeding Table | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of Double Layer Roll Forming Machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of Our Double Layer Roll Forming Machine
· We have Germany COPRA software design team
· We have 5 engineers with more than 20 years experience
· Our factory have 30 professional technician
· 20 sets advanced CNC production lines on site
6. Application Of The Double Layer Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel.

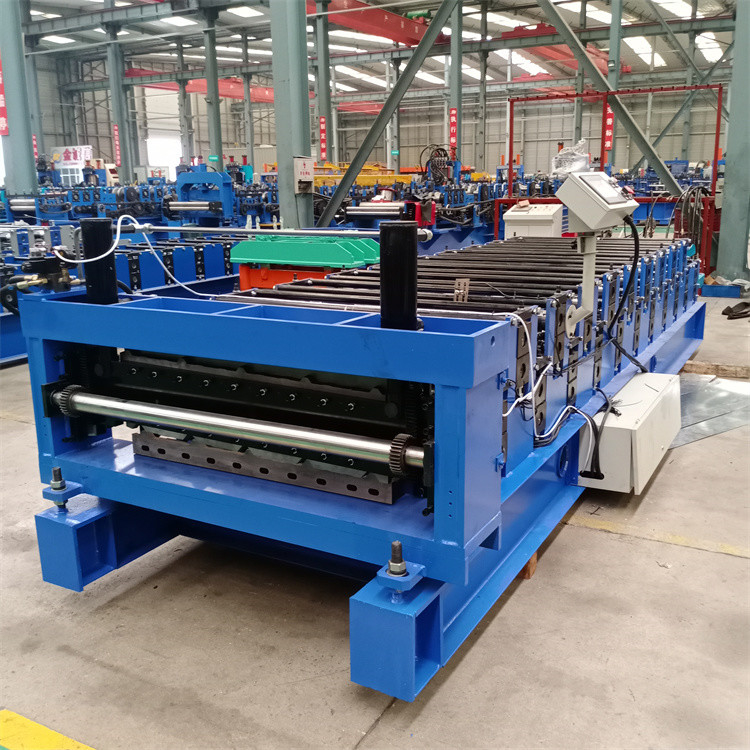

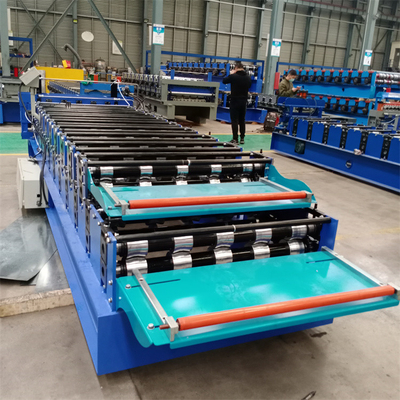

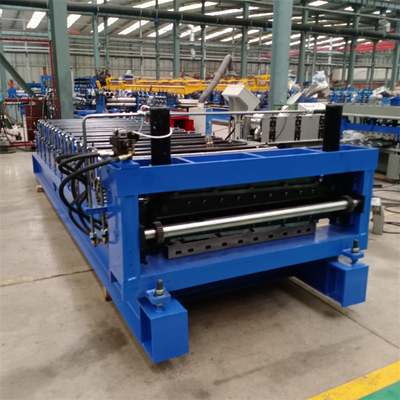

7. Product photos Our Double Layer Roll Forming Machine
8. FAQ
Q. What’s your standard trade terms ?
A: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for
competitive ocean freight.
Q: If need technician to workshop to debug and teach, how to do?
A:We provide online guidance, or we sent technician to your factory. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
Q. Can you provide OEM service for roll forming machine?
A: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production
usage, machine speed, then machine specification will be some different.
Contact Person: Eileen Sun
Tel: +86 17331704660
