Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE ISO |
Model Number: | CZ purlin roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD13000-USD14500PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 30-40working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Product Name: | CZ Purlin Roll Forming Machine | After-sales Service Provided: | PLC Control System(brand As Requirement) |
---|---|---|---|
Voltage: | 380V 50Hz 3phases Or As Your Request | Cutting: | Hydraulic Cutting |
Power(w): | 22KW | Control System: | PLC Control System(brand As Requirement) |
Weight: | 10 Tons | ||
Highlight: | CZ Purlin Roll Forming Machine High Speed,Hydraulic Cutting CZ Purlin Roll Forming Machine |
Quickly change fully automatic CZ purlin roll forming machine high speed
1. Description of CZ purlin roll forming machine:
We are a manufacture of C Z purlin roll forming machine, C and Z purlin used as horizontal or wall for structural support in buildings, steel buidling. This machine also called CZ purlin forming machine, czpurlin making machinery, purlin roll forming machine, C purlin rolling forming machine, C channel forming machine, CZ purlin forming machine ,building construction CZ purlin ,automatic channel profile,steel cz purlin roll forming machine,building material c and z purlin forming machinery.
Our factory is manufacturing high quality CZ purlin roll forming machines, and regularly exported to Australia, USA, Thailand, Canada,Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of CZ purlin roll forming machine:
Machine Specifications | |
Weight | About 10 tons |
Size | About 13mx1.3mx1.3m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.5-0.8mm or 1.5-3mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 18 |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 20-30m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 22kw |
Hydraulic unit motor power: 5.5kw | |
Electric voltage | According to customer’s requirement |
3. Main components of CZ purlin roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
Punching device | 2 Set or according to your request |
4. CZ purlin roll forming machine Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. CZ purlin roll forming machine Advantages
· Our design team use Germany COPRA software design
· Our factory have 5 engineers with more than 20 years experience
· We have 30 professional technician
· 20 sets advanced CNC production lines on site,these CNC machine is used for machine rollers process.
· Passionate Team
· Installation engineers can reach your factory within 6 days, if you need our engineers, please contact me in adwance.
· 12 month years maintenance and whole life technical support
6. CZ purlin roll forming machine Application
This machine is widely used in the production of the horizontal or wall for structural support in buildings, steel buidling.

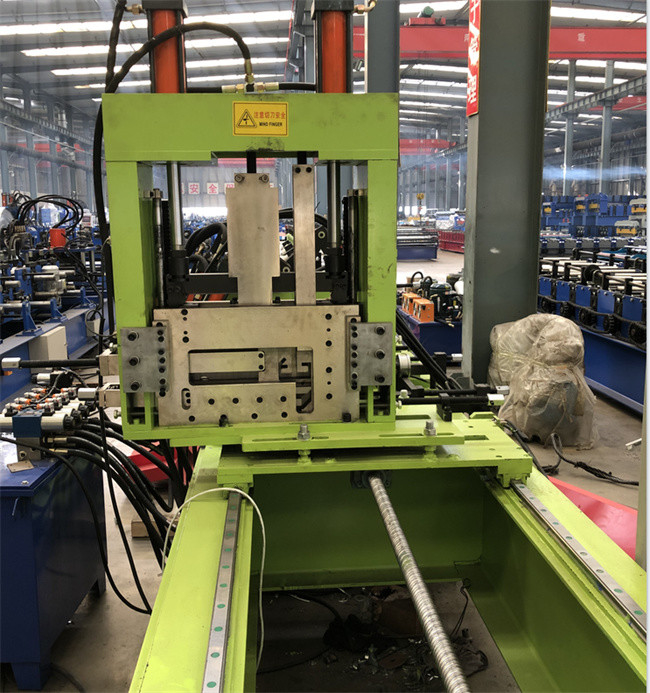

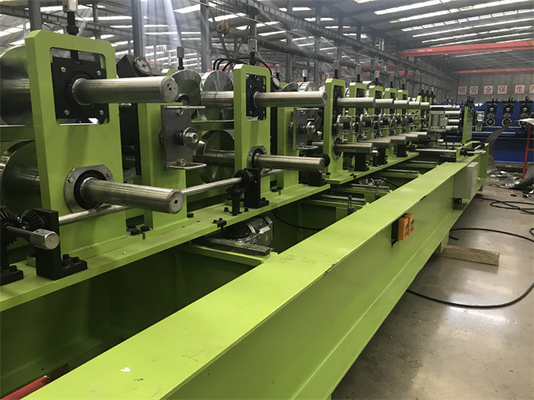

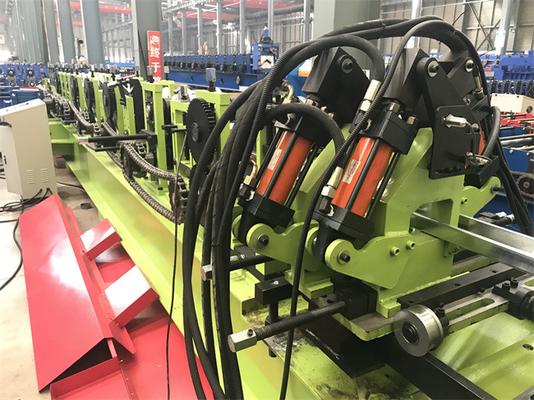

7. CZ purlin roll forming machine Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
Q: Do you sell only standard machines?
A: No. Most machines are made to order.
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
Q:What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Contact Person: Eileen Sun
Tel: +86 17331704660
