Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Shutter Door Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Shutter Door Roll Forming Machine
After Warranty Service:	Line Support Video	After-sales Service Provided:	Online Support Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	Door Slating Roller Shutter Machine , Foaming Aluminum Roller Shutter Machine

JCX hot sale rolling metal pu shutter door roll up slat roller former machine slating cold forming machine

1. Description of shutter door roll forming machine:

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus

continuous automation production of foaming roller shutter door is achieved.

2. Technical details of shutter door roll forming machine:

Components	Technical Parameters	Quantity
1	Uncoiler	1.Width: 100-300mm 2.Speed: Based on the machine speed 3. I.D: 460-508mm; O.D: 1350mm	1 set
2	Roll Forming Machine	1.Shaft: High quality 45# Steel with tempering treatment HB280 2.Roller: GCR15 steel with quench treatment. 3.Forming Station: 23-28 stations 4.Forming Speed: 10-15m/min 5.Motor Power: 7.5kw( subjected to final design) 6.Transmission: Gear-box transmission 7.Dimension of the Line: Approx. 26000mmX1500mmX1400mm 8.Weight of the Line: Approx. 8T	1 set
3	Foaming machine	1.Type: Low Pressure Blowing Type 2.Foaming Material: PU 3.Power: 5KW 4.Foaming Rate: 10 times in max 5.Output: 120KG/Hour in max 6.Screw Diameter: 6mm 7.Dimension: Approx. 120x100x170 mm 8.Weight: Approx. 300KG 9. Clearing: by Solvent	1 set
4	Fly Saw Cutting Device	1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62 2.Cutting Pressure: 12-16Mpa 3.Cutting Power: 2KW (subjected to final design) 4. Tolerance Of Cutting Length: +/-2mm	1 set
5	Hydraulic Station	1. Power: 4kw 2. Solenoid Value: Beijing Huade	2 sets
7	Collection Station	1. Angle iron welded	1 set

3. Main components of shutter door roll forming machine

No.	Name	Qty
1	De-coiler	1 Set
2	Roll Forming Machine	1 Set
3	Hydraulic Cutting Devic	1 Set
4	PLC Control Box	1 Set
5	Output table	1 Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System 1

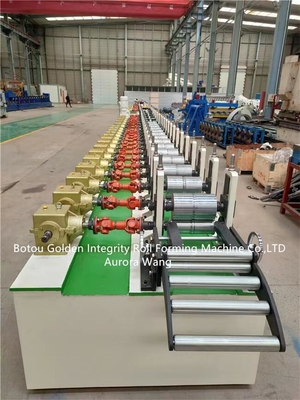

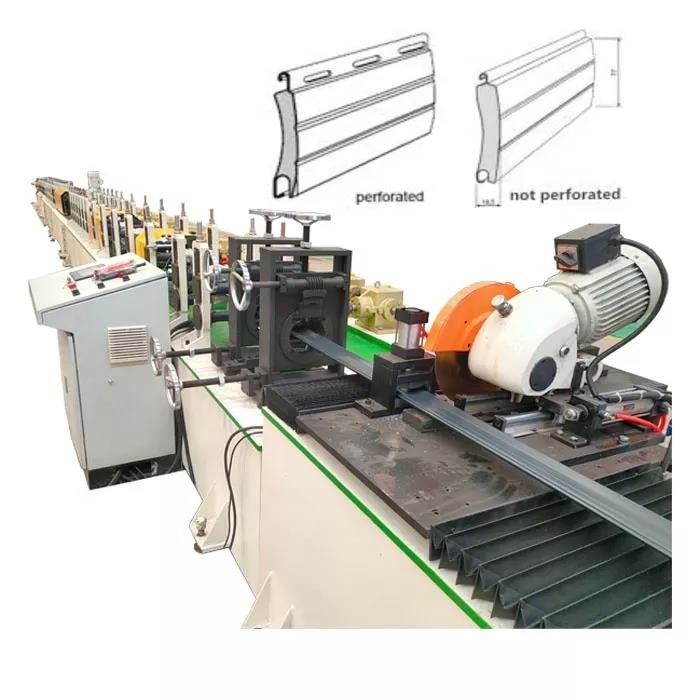

7. Product photo

Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System 2

Foaming Aluminum Door Slating Roller Shutter Machine PLC Detla System 3
