14-16m/Min Shutter Roll Forming Machine European CE Standard Touch Screen HMI

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Shutter Door Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Shutter Door Roll Forming Machine
After Warranty Service:	Line Support Video	After-sales Service Provided:	Online Support Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	16m/Min Shutter Roll Forming Machine , Shutter Roll Forming Machine CE

2022 European CE standard Best Selling Roller Shutter Door Roll Forming Machine Manufacturers Price

1. Description of shutter door roll forming machine:

An Australia Roller Shutter Door Machinery includes 5 machines: Roller Shutter Door Panel Roll Forming Machine, Hole Punching Machine, Seaming Machine, Air Nipper Machine, Rolling Machine to make complete Roller Shutter Doors.

2. Technical details of shutter door roll forming machine:

SPECIFICATIONS FOR AUSTRALIA SHUTTER DOOR ROLL FORMING MACHINE
Machine specification	Electric power	kW	5.5 kW – 7.5kw
	Rolling speed	m/min	14-16 m/min
	Machine Weight	Tons	7.0-12.0 tons
	Machine Dimensions	m	(8.0-13.0) m x 1.8 m x 2.0 m
	Station quantity	stations	18-32 stations
Raw material	Steel Thickness (BMT)	mm	0.45-0.55 mm
	Coil Width	mm	600-1250 mm
	Material Strength		G300-G400 (GI, GL, PPGI, PPGL)
Production specification	Rolling transmission	m/min	Gear motor driven by Inverter
	Control System		PLC, Touch Screen HMI
	Cutting and punching system		Hydraulic
	Length Tolerance		± 2 mm
	Option		Entrance shearer

3. Main components of shutter door roll forming machine

Decoiler	1Set
Feeding Platform with Pre-cutter	1Set
Roll Forming Machine	1Set
PLC Control System	1Set
Hydraulic Cutting System	1Set
Exit Rack for roofing production	2 pieces 3 meters
Spare parts	One carton box

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

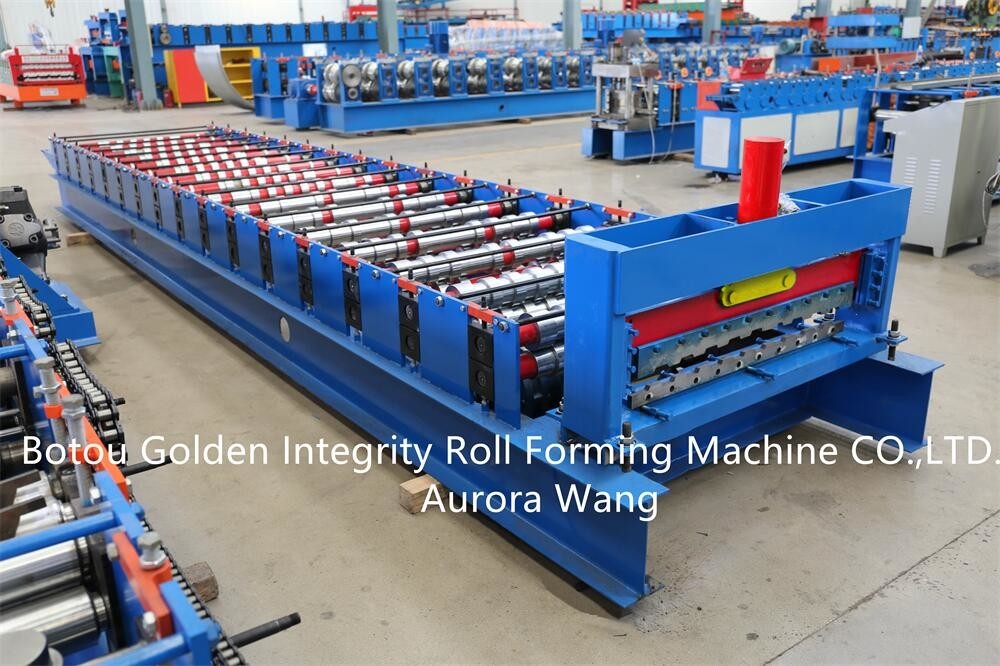

14-16m/Min Shutter Roll Forming Machine European CE Standard Touch Screen HMI 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

This machine is widely used in the production of the ridge caps

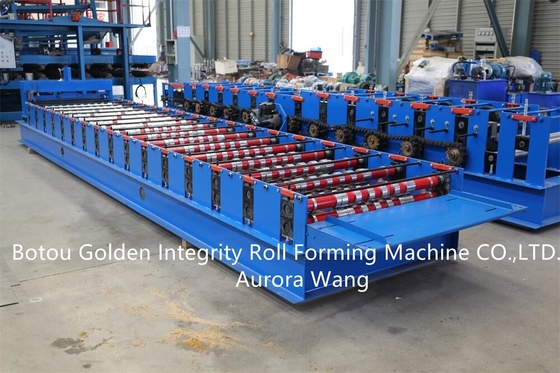

14-16m/Min Shutter Roll Forming Machine European CE Standard Touch Screen HMI 1

7. Product photo

14-16m/Min Shutter Roll Forming Machine European CE Standard Touch Screen HMI 2

14-16m/Min Shutter Roll Forming Machine European CE Standard Touch Screen HMI 3
