Double Slat Shutter Door Roll Forming Machine PLC Automatic Rolling Shutter Machine

77/89 Type Double Slat With Pu Foam Rollup Door Forming Machine Shutter Door Machine

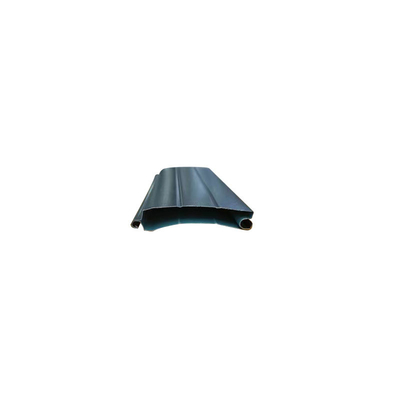

Design of double slat with PU foam rollup door:

1. Description of shutter door roll forming machine:

Pu foam aluminum shutter door forming machine
thickness of material:0.3-0.5mm
dimension of machine:16500*600mm*1200mm
numbers of rollers:40 groups with correction rollers
width of material:299mm
forming speed_6-8meters/min
main power:11kw
any questions about machine just let me know.

1. Production Flows

The machine devices have:

Uncoiler ----Guiding device---Roll forming part---- PU injection machine ---Non-stop auto shearing---- PLC control ---- Received table

2. Main components of shutter door roll forming machine

3. Production Flows

The machine devices have:

Uncoiler ----Roll forming part---- PU injection machine ----straight device----Pneumatic Punching---- Pneumatic cutting platform ---- Received table

4.  Parameters:

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

5. Description of shutter door roll forming machine:

77 PU Foam Roller Shutter Door Roll Forming MachineThe complete European-style rolling door molding machine production line is made of manual inner support
unwinding system, feeding guide mechanism, forming roller table mechanism (including heating oven), PU foam
casting machine, PU curing and shaping roller table, flying saw tracking and cutting mechanism, all It is composed
of automatic industrial panel control system and finished product supporting device.

These are the popular PU rolling shutter slat profiles effective widths 37mm, 42mm, 55mm, 77mm, 98mm and 125mm etc, we are a manufacture of customize pu roller shutter door machine ,if you are interest, please contact me, we provide you the best service.

There are two different transmission and roll forming systems optional for a PU rolling shutter slat production line: economical type (chain-brackets transmission and conjoint-stands roll forming system) and upgraded type (gear-box & universal joint shafts transmission and separate-stands roll forming stands).

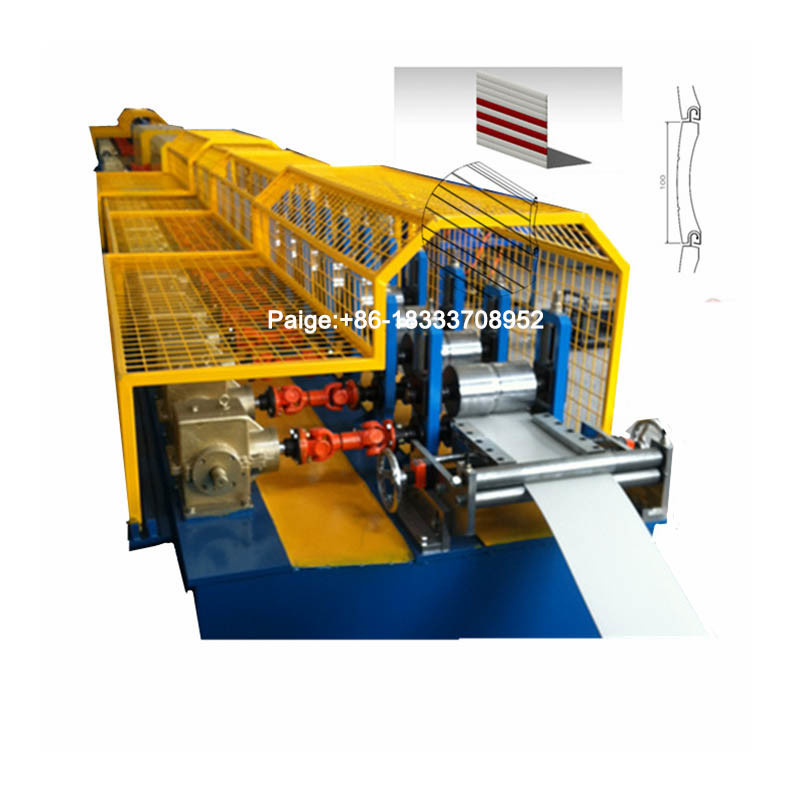

6. Shutter door roll forming machine Product photo

7. Application of Shutter door roll forming machine

This machine is widely used in the production of the door shutters.

8. FAQ

Q: Do you provide training for my workers?

A:Yes.Of course/

The machine has been installed and tested well before shipping. It is easy to operate.

Normally speaking, our customer follows the instruction book and can operate the machine well.?

You can also come to our factory to check the machine and learn how to operate before shipping.

Q: I do not know about the machine and do not know how to install it. Can you install the machine in my factory?

A: Yes.If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food, Salary of 1000 USD per day per person (from departure from our factory, until we are back to our factory
