| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE |
| Model Number: | Shutter door machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8500-USD10500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Roller Shutter Door Roll Forming Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Voltage: | 380V 50Hz 3phases Or As Your Request | Cutter Material: | CR12 Mould Steel With Quenched Treatment |
| Cutting: | Hydraulic Cutting | Shaft Material: | High Grade No.45 Forged |
| Forming Rollers Material: | No.45 Steel, Coated With Chromed Treatment | Control System: | PLC Control System(brand As Requirement) |
| Highlight: | Steel Shutter Door Roll Forming Machine,Galvanized Shutter Door Roll Forming Machine |
||
Australian Galvanized Steel Shutter Door Roll Forming Machine used for door frame
1. Description of shutter door roll forming machine:
roller shutter door roll forming machine is a machine will make shutter door slats, Our machine can do thickness for 0.7-1.4mm, the shape will be design by your demand. This machine also named:shutter roll forming machine, shutter door roll forming machinery, shutter door rolling forming machin, roll up shutter door, garage shutter door machine, metal shutter door machine, door shutter machine design, rolling steel shutter door forming machine.
Our factory is manufacturing high quality guardrail roll forming machines, and regularly exported to Australia, USA, Thailand, Canada, Indonesia, Philippines, Malaysia, Angola, etc, Colombia, Rwanda, South Africa.
2. Technical details of shutter door roll forming machine:
| Machine Specifications | |
| Weight | About 3.5tons |
| Size | About 5.6mx1.2mx1.3m(length x width x height) |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.5-0.8mm or 0.8-1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 11-12 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of shutter door roll forming machine
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Shutter door roll forming machine Application
This machine is widely used in the production of the door shutters.

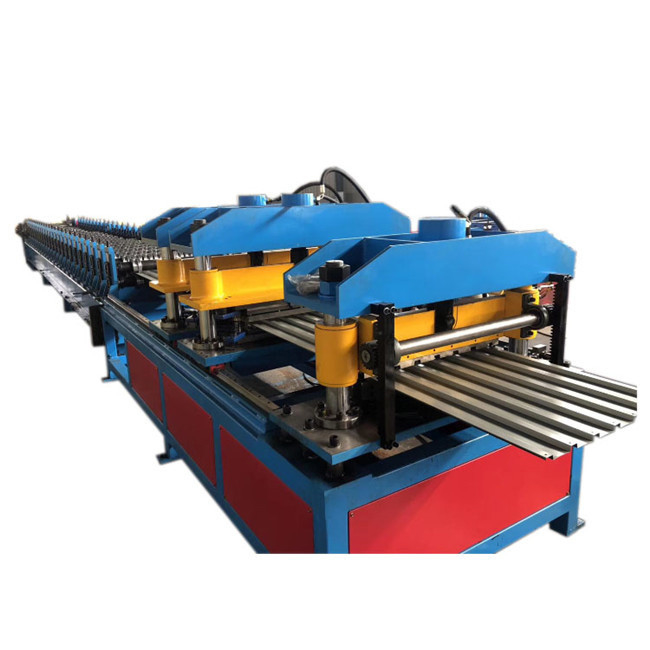

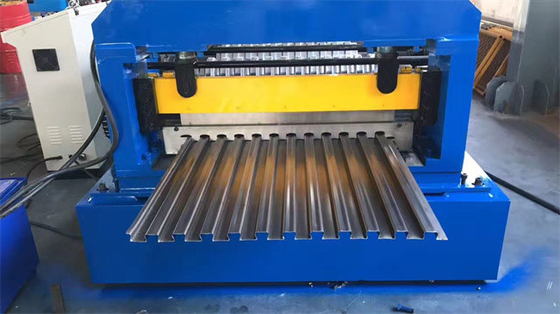

7. Shutter door roll forming machine Product photo
8. FAQ
Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
Q: When we started export the machines?
A: We have beening making and exporting the machines since from the year of 1998.
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
