Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE |
Model Number: | Shutter door roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD9328-USD11000 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 SETS PER MONTH |
Product Name: | Shutter Door Rolling Forming Machinery | After-sales Service Provided: | Service Machinery Overseas |
---|---|---|---|
Voltage: | 380V 50Hz 3phases | Cutter Material: | CR12 Mould Steel With Quenched Treatment |
Cutting: | Hydraulic | Shaft Material: | High Grade No.45 Forged |
Forming Rollers Material: | No.45 Steel Coated With Chromed Treatment | Control System: | PLC Control System Delta Brand |
Highlight: | Aluminum Shutter Door Rolling Machine,Shutter Door Rolling Machine 380V |
Aluminum New design shutter door roll forming machine high grade China manufacture
1. Description of shutter door roll forming machine:
roller shutter door making machine has many parts:
1.Decoiler the coil.
2.Feeder to the punching holes machine(it can make the shutter door slide cover with holes).
3.Roll forming part, for our mahcine, the forming speed will be 0-30m/min, it is asjustable. Generally we will make the Shutter door roll forming machine with gear drive, it will give machie a strong power to move.
4.Punching the lock holes. This part will together with cutting blade. When it cutting, the machine will punching the holes together.
5.Cutting part. We have two types of cutter for you choose,one is fly saw,another is hydraulic cutter.
Our factory is manufacturing high quality shutter door roll forming machines, and regularly exported to Australia, USA, Thailand, Canada, Indonesia, Philippines, Malaysia, Angola, etc, Colombia, Rwanda, South Africa.
2. Technical details of shutter door roll forming machine:
Machine Specifications | |
Weight | About 3.5tons |
Size | About 5.6mx1.2mx1.3m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.5-0.8mm or 0.8-1.5mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 11-12 |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 4kw |
Hydraulic unit motor power: 3kw | |
Electric voltage | According to customer’s requirement |
3. Main components of shutter door roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Shutter door roll forming machine production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5.Our factory advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Shutter door roll forming machine Application
This machine is widely used in the production of the door shutters.

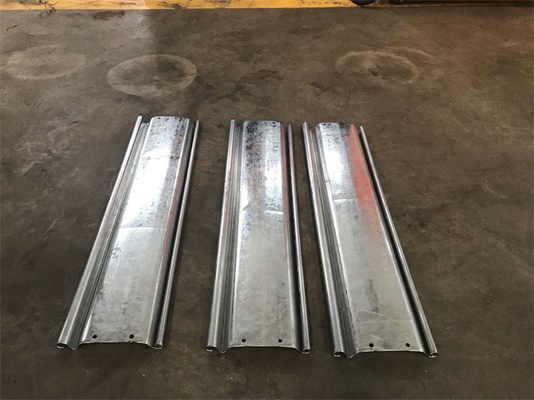

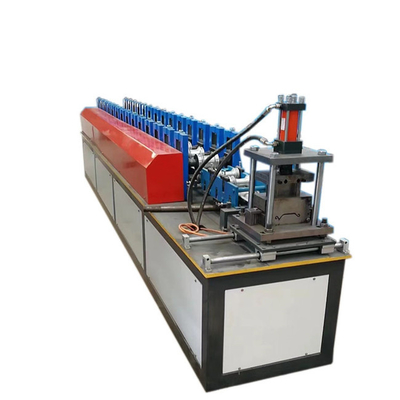

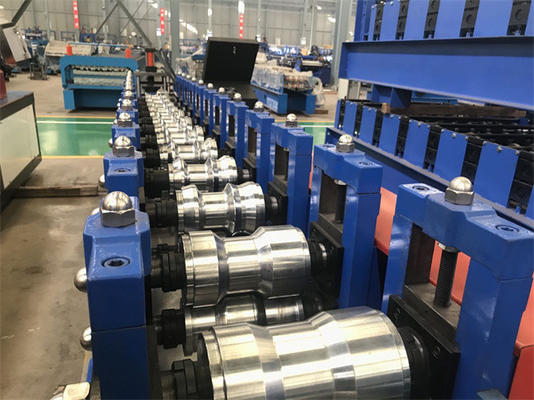

7. Shutter door roll forming machine Product photo
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
