| Place of Origin: | China |
| Brand Name: | JCX |
| Model Number: | Floor Decking Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Certification: | ISO9001 CE | Product Name: | Floor Decking Roll Forming Machine |
|---|---|---|---|
| After Warranty Service: | Line Support | After-sales Service Provided: | Video Technical Support |
| Warranty: | 12 Months,and Life Long Tracking Service | Advantage: | Automatic Operation |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet | ||
| High Light: | JCX Floor Tile Manufacturing Machine,Floor Tile Manufacturing Machine Galvanized Steel,Galvanized Steel Deck Roll Former |
||
JCX 2022 New Product Metal Decking Roll Forming Machine Galvanized Steel Deck Floor Tile Making Machine
1. Floor decking roll forming machine
Floor deck roll forming machine popular sell in many countries. We sell such floor deck roll forming machine to Indonesia, Philippines, Russia, India, and Us market. Product thickness common between 0.8-1.2 mm, material use PPGI or GI. Machine work speed reach 10-20 m/min.
2. Technical details of floor decking roll forming machine
| No. | Item | Specification | |
| 1 | Steel coil | Width |
Max 1250/1220/1219/1000 |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness |
0.7-1.5mm 0.7-1.0mm 1-1.2mm
|
||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 450mm Height |
| Stations |
As design of drawing Main: 22-30 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel | ||
| Diameter of shaft |
As design of drawing Main: 90mm |
||
| Chain | Main: 2inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 2*18.5kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 3-5.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 6 Tons |
| 6 | Product | Receiving table | Manual |
|
We can also talk and confirm other details before ordering. We can give you suggestions.
Choose us, own professional service. |
|||
3. Main components of floor decking roll forming machine
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |
| 2 | Entry Beach | set | 1 |
| 3 | Main Machine for roll forming | set | 1 |
| 4 | Cutting System | set | 1 |
| 5 | Output Table | set | 1 |
| 6 | Control System(PLC) | set | 1 |
| 7 | hydraulic station | set | 1 |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

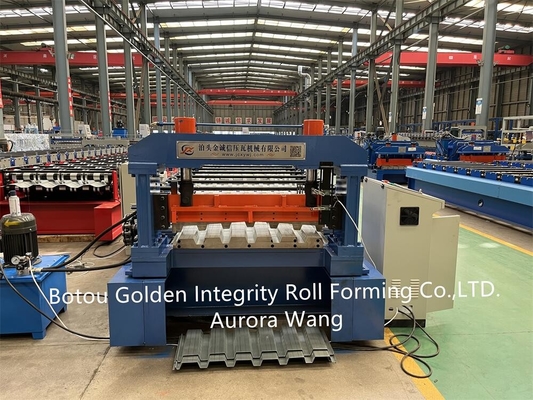

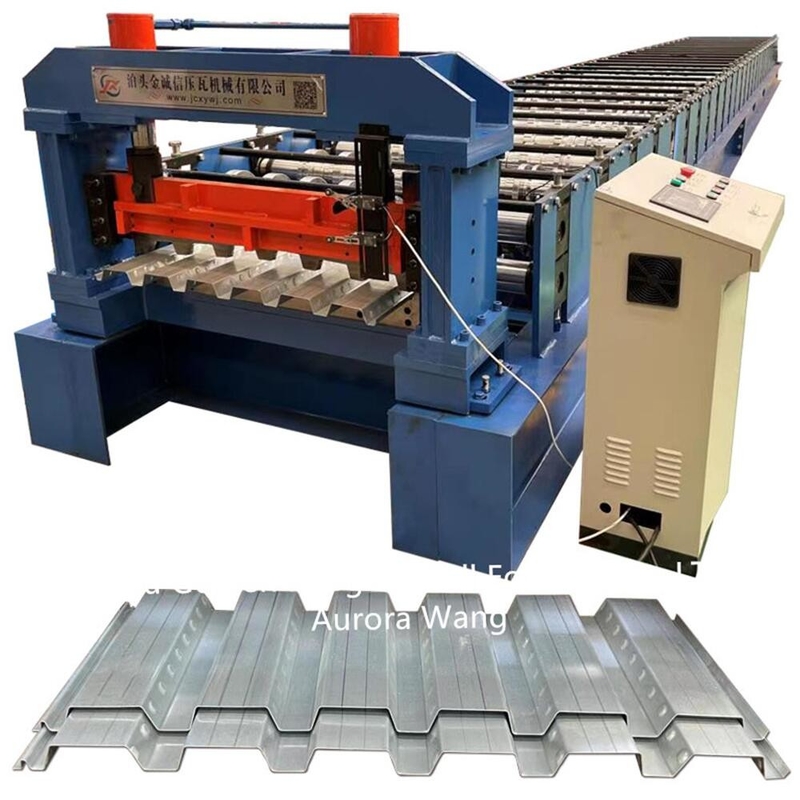

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Harry Yang
Tel: 0086 15128741111
