380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine

380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine

  • 380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine
  • 380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine
380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine
Product Details:
Place of Origin: China
Brand Name: JCX
Model Number: Floor Decking Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD8000-USD12500 PER SET
Packaging Details: Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS PER MONTH
Contact Now
Detailed Product Description
Certification: ISO9001 And CE Product Name: Automatic Floor Decking Roll Forming Machine
After-sales Service Provided: Video Technical Support Machine Warranty: 15 Months,and Life Long Tracking Service
Advantage: Full Automatic Operation Color: Blue Or Green Or Grey
Control Box Language: Chinese And English , Or Add Customer Request Language Control System: PLC Control System(Famous Brand)
Export Port: Tianjin Port Or Other Port Need Container: 1*40 Feet Container
High Light:

50Hz Floor Decking Roll Forming Machine

,

380V Floor Decking Roll Forming Machine

,

380V Metal Deck Forming Machine





380V 50Hz Blue Metal Deck Roll Forming Machine 8-10m/min High Working Speed





1. Description of Floor decking roll forming machine

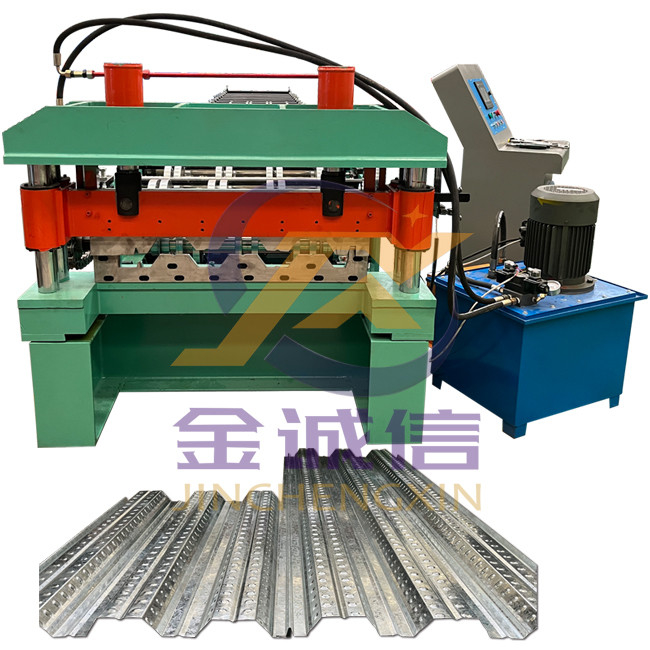

A metal deck or steel deck roll forming machine consists of a 5TON manual de-coiler, feeding guide, an electrical entry shearing with 0.75KW motor power,a roll forming part including an embossing tools, transmission system, hydraulic system, a PLC control cabinet, a hydraulic oil pump and runout tables to support the final products.



This roll forming machine can roll forming metal floor decking panel profile. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on surface. The designing of metal deck forming machine is aided and optimized by computer. The metal deck produced by this machine has high strength with big wavelength. It adheres well to concrete. Used on high buildings, it not only saves steel mold plate, but also reduced the weight of storey. With the same bearing capacity, it economizes steel and cuts down investment accordingly.





380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 0

380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 1



2. Technical details of floor decking roll forming machine



Axis Diameter
85 mm
Pre-cutting unit
Hydraulic way
Forming Roller station
22 groups
Main Axis material
First grade 45# steel
Forming Speed
12-13m/min
Cutting system power
7.5KW
Cutting length tolerance
±0.05mm
Voltage
380V/50Hz/3P


3. Main components of floor decking roll forming machine



No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 Output Table set 1
6 Control System(PLC) set 1
7 hydraulic station set 1



4. Production Flows



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)



380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 2



5. Advantages



· Germany COPRA software design



· 5 engineers with more than 20 years experience



· 30 professional technician



· 20 sets advanced CNC production lines on site



· Passionate Team



· Installation engineers can reach your factory within 6 days



· 1.5 years maintenance and whole life technical support





6. Application



The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.



380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 3



7. Product photo



380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 4



380V 50Hz Floor Decking Roll Forming Machine Metal Deck Forming Machine 5



8. FAQ



1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
