Place of Origin: | China |
Brand Name: | JCX |
Certification: | CE |
Model Number: | PU shutter door roll forming machine |
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD55000-USD60500 PER SET |
Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 40'gp container |
Delivery Time: | 50-60 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 10 SETS PER MONTH |
Product Name: | PU Shutter Door Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Voltage: | 380V 50Hz 3phases Or As Your Request | Cutting Blade Material: | Cr12 Quenched |
Cutting: | Hydraulic Cutting | Shaft Material: | High Grade No.45 Forged |
Usage: | PU Foam Shutter Door | Control System: | PLC Control System |
Highlight: | PLC Door Shutter Roll Forming Machine,Door Shutter Roll Forming Machine PU,PU Shutter Door Making Machine |
High efficiency 55 77 PU Foam roller shutter door roll forming machine PU shutter door making machine
1. Description of shutter door roll forming machine:
JCX factory is a manufacture of making pu foam roller shutter door making machine,
The machine devices have:
Uncoiler ----Roll forming part---- PU injection machine ----straight device----Pneumatic Punching---- Pneumatic cutting platform ---- Received table

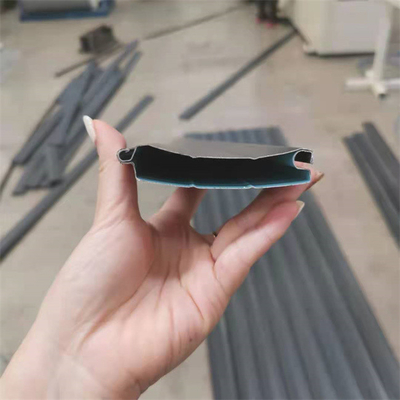

PU shutter slats is produced from Color steel, Aluminum or Galvanized steel (thickness from 0.3-0.5mm or 0.4-0.6mm, and raw material widths vary according to the required final slats) and PU foam insulated continuously; sometimes punching slots are required. This is according to your request.
These are the popular PU rolling shutter slat profiles effective widths 37mm, 42mm, 55mm, 77mm, 98mm and 125mm etc, we are a manufacture of customize pu roller shutter door machine ,if you are interest, please contact me, we provide you the best service.
There are two different transmission and roll forming systems optional for a PU rolling shutter slat production line: economical type (chain-brackets transmission and conjoint-stands roll forming system) and upgraded type (gear-box & universal joint shafts transmission and separate-stands roll forming stands).
2. Technical details of shutter door roll forming machine:
PU foam Machine Specifications | |
Weight | About 8tons |
Size | About 32mx1.0mx1.2m(length x width x height) |
Color | Main color: blue or as your requirement |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.5mm or 0.4-0.6mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 23 |
Diameter of forming rollers shafts | 40mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 7.5kw |
Hydraulic unit motor power: 4kw | |
Electric voltage | According to customer’s requirement |
3. Main components of shutter door roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Shutter door roll forming machine Application
This machine is widely used in the production of the door shutters.

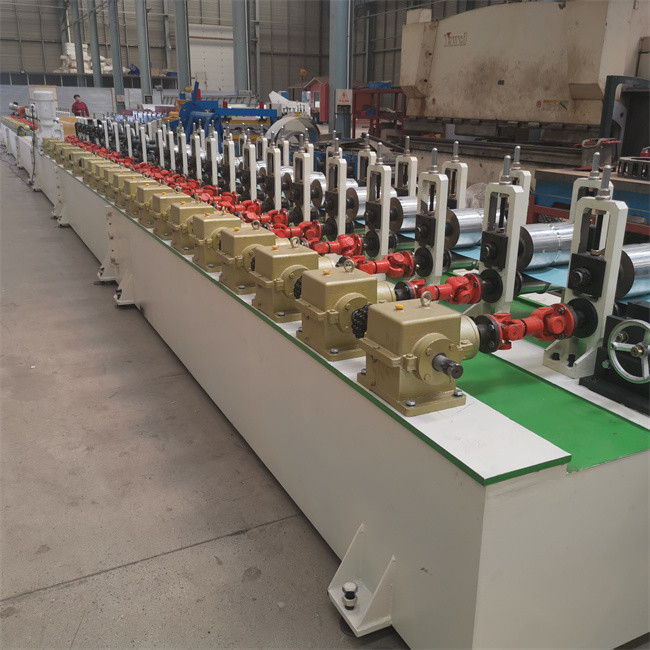

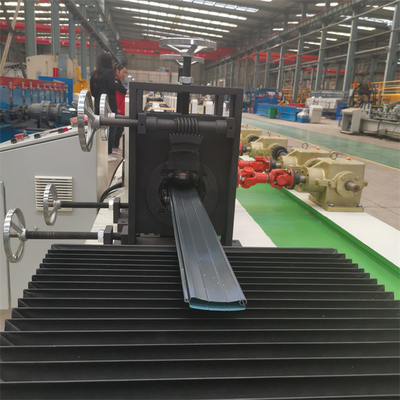

7. Shutter door roll forming machine Product photo
8. FAQ
Q: Do you provide training for my workers?
A:Yes.Of course/
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping.
Q: I do not know about the machine and do not know how to install it. Can you install the machine in my factory?
A: Yes.If you need us to send engineers to your factory, you will pay for the travel expense such as visa, round tickets, hotel, food, Salary of 1000 USD per day per person (from departure from our factory, until we are back to our factory
Welcome to inquiry.
Contact Person: Eileen Sun
Tel: +86 17331704660
