Color Steel 7.5KW Square Downspout Machine 0.4-0.6mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Floor Decking Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Floor Decking Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Color Steel Square Downspout Machine , 7.5KW Square Downspout Machine

JCX 2022 New Product Color Steel Sheet Square Downspout Roll Forming Machine With High Quality

1. Downspout roll forming machine

JCX downspout pipe making machine could be used to make downspout pipes in a higher speed and good quality by 16 years in this area. For this machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain.

2. Technical details of downspout roll forming machine

Technical Parameters of Downpipe Roll Forming Machine:

* Uncoiler: Manual Uncoiler

* Inner diameter: 508mm

* Outer diameter: 1200mm

* Loading weight: 6.5T

* Thickness of Material: 0.4-0.6mm

* Rolling Stations: 22 stations for square pipe and 26 stations for round pipes.

* Forming Speed: 10-15m/min. (not including cutting)

* Diameter of Shaft: ¢70mm

* Transmission: by chain-brackets

* Main Power: 7.5KW

* Weight of the machine appro.6 Tons.

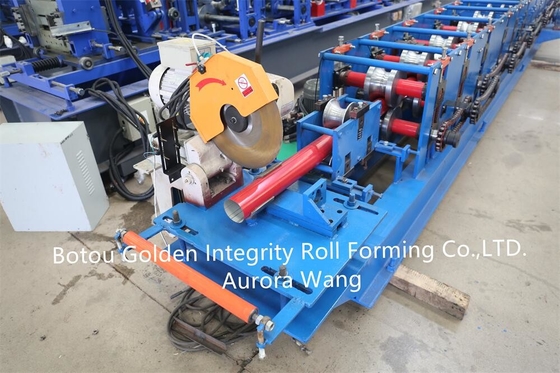

* Cutting Type: Hydraulic cutting for rectangular downpipe and Flying Saw Cutting for Circle downspout

* Hydraulic Power: 4KW

* Material of cutter blade: Cr12 steel with quenched treatment.

* Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touchscreen

* Electrical System for Rectangular Downspout Roll Forming Machine

* Panasonic PLC Control System and Omron Encoder;

Main parameters for downspout Elbow machine:

* Type of controlling: adopt strong electric controlling

* Main motor power: 2.2kw

* Max curving angle: 90 degrees.

* Functions: curving and biting

* Curving speed: 0-15m/min

* Dimension: 1300*650*1500mm

3. Main components of downspout roll forming machine

No.	Name	Unit	Qty
1	Decoiler	set	1
2	Entry Beach	set	1
3	Main Machine for roll forming	set	1
4	Cutting System	set	1
5	Output Table	set	1
6	Control System(PLC)	set	1
7	hydraulic station	set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Color Steel 7.5KW Square Downspout Machine 0.4-0.6mm Thickness 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Color Steel 7.5KW Square Downspout Machine 0.4-0.6mm Thickness 1

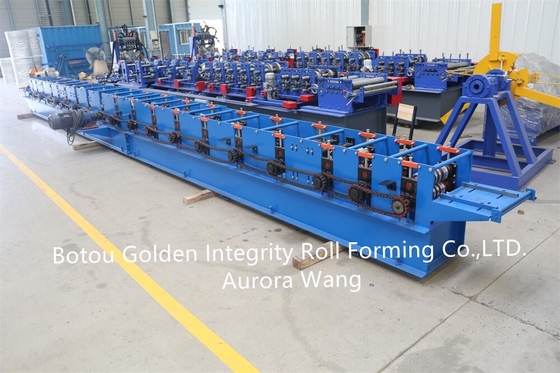

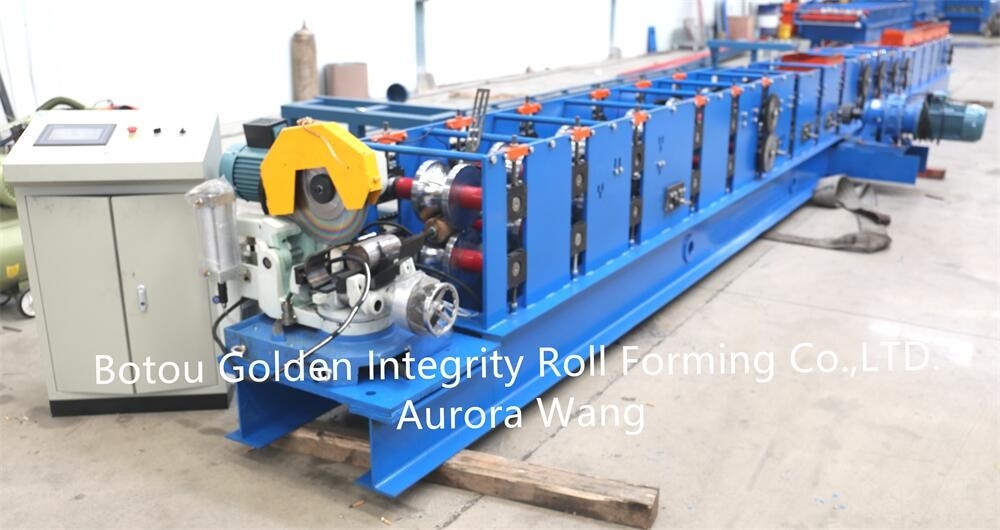

7. Product photo

Color Steel 7.5KW Square Downspout Machine 0.4-0.6mm Thickness 2

Color Steel 7.5KW Square Downspout Machine 0.4-0.6mm Thickness 3
