7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO9001
Model Number:	Double layer roll forming machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Product Name:	Double Layer Roll Forming Machine	After Warranty Service:	Line Support
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months,and Life Long Tracking Service
Advantage:	Automatic Operation	Certification:	ISO9001 CE
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
Highlight:	Steel Double Layer Roll Forming Machine , 7.5Kw Double Layer Roll Forming Machine

JCX 2022 New Product Steel Double Layer Roll Forming Machine With High Quality

1. Double layer roll forming machine

This roof machine include the decoiler , feeding table , main machine , cutting device , plc control box , oil pump and receving table .
In order to supply the good quality machine to the client , our production department will test the machine again and again until it can work smoothly before shipping . To ensure that the client can use the machine directly once they receving it .

2. Technical details of double layer roll forming machine

The specification of the double layer roof sheet roll forming machinery
Roller	18 Rows
Material of the Cutting Blade	Cr12, Quenched treatment 58℃-60℃
Rolling Materials	45# forging steel with chromium plate
Diameter of the Roller	Φ70mm
Main Structure of the Machine	350H beams
Side Panel of Machine	16mm
Chain	1 Inch
Motor Power	7.5Kw
Pump Station Motor	4Kw
Productivity	8-12m/min
Thickness of the Plate	0.3-0.8mm
Touch Screen	Delta
Voltage	380V 50Hz 3 phases or as customer's need
Drive Mode	Chain driver
Suitable to Process	GI/GL/PPGI/PPGL/Aluminum coils

3. Main components of double layer roll forming machine

Double layer roll forming machine
Name	Quantity	Units
5T manual uncoiler (Hydraulic uncoiler)	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Plc cut to length	1	Set
Hydraulic system	1	Set
Delta Electronic Control System	1	Set
Supporter/Automatic Stacker	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

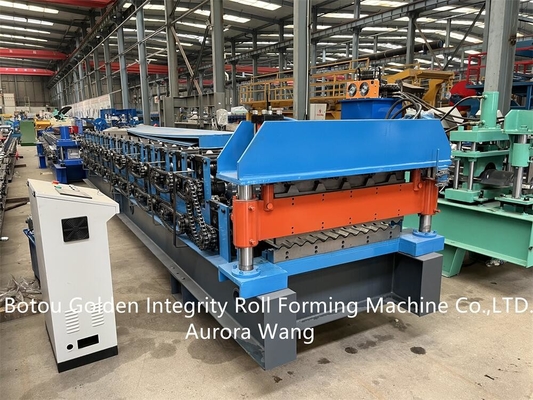

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

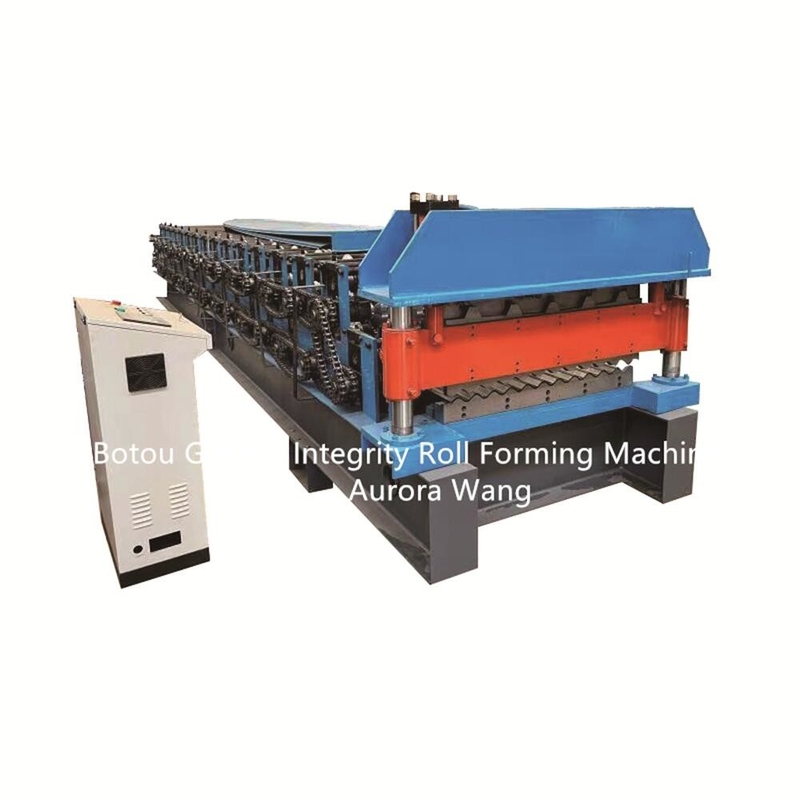

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification 1

7. Product photo

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification 2

7.5Kw Steel Double Layer Roll Forming Machine ISO9001 CE Certification 3

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
