| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Double layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Double Layer Roll Forming Machine | After Warranty Service: | Line Support |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support | Warranty: | 12 Months,and Life Long Tracking Service |
| Advantage: | Automatic Operation | Certification: | ISO9001 CE |
| Color: | Client's Request | Control Box Language: | Add Customer Request Language |
| Control System: | PLC(detla) System | Export Port: | Tianjin Port |
| Need Container: | 1*40 Feet | ||
| Highlight: | Building Material Roof Sheet Forming Machine,Roof Sheet Forming Machine Double Deck |
||
Building Material Roofing Sheet Roll Forming Machine Double Deck 0.3-0.8mm Thickness
1. Double layer roll forming machine
1.The system is easy to operate and use. PLC: Delta(Can customize as customer require).
2.The surface of the final product is very smooth and beautiful without any scratch on the surface.
2. Technical details of double layer roll forming machine
A Sheet Specifications
| 1 | Coil Type | PPGI GI |
| 2 | Width | 1219mm |
| 3 | Thickness | 0.3-0.6mm |
| 4 | Yield stress | Q235 |
| 5 | Effective | as profile |
B Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 14-18, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
3. Main components of double layer roll forming machine
|
Double layer roll forming machine
|
||
|
Name
|
Quantity
|
Units
|
|
5T manual uncoiler (Hydraulic uncoiler)
|
1
|
Set
|
|
Adjustable feeding platform
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
Plc cut to length
|
1
|
Set
|
|
Hydraulic system
|
1
|
Set
|
|
Delta Electronic Control System
|
1
|
Set
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

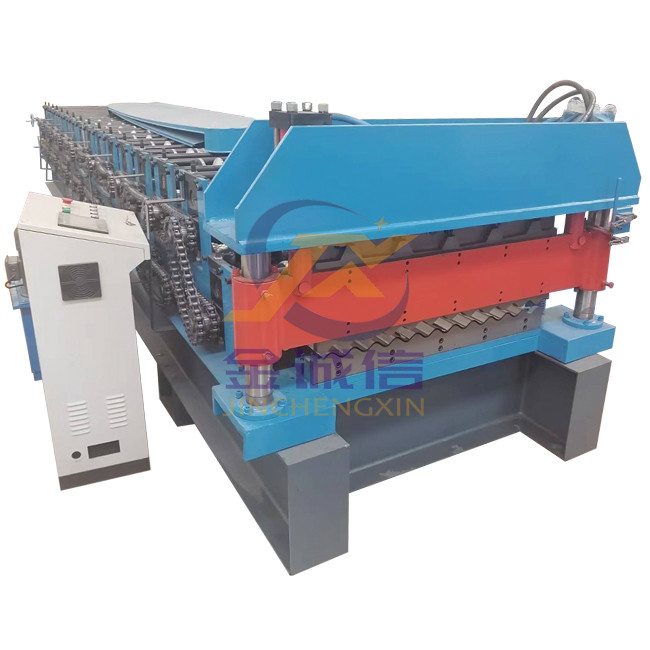

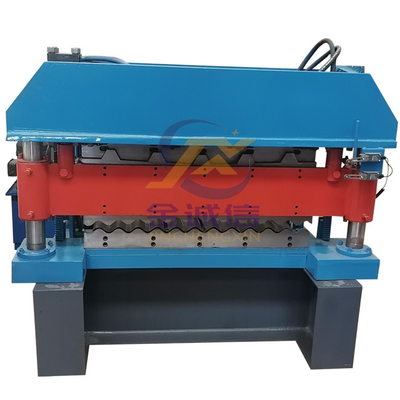

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Celina Li
Tel: +8615128751166
