Name: Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm
Brand: JCX
SKU: Double layer Roll Forming Machine
Price: 8000 USD
Availability: InStock
Rating: 4.9 (123 reviews)

Home Products Double Layer Roll Forming Machine

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm

Product Details:

Place of Origin:	China
Brand Name:	JCX
Model Number:	Double layer Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD8000-USD12500 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container
Delivery Time:	20-30 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30 SETS PER MONTH

Contact Now

Detailed Product Description

Certification:	ISO9001 CE	Product Name:	Double Layer Roll Forming Machine
After Warranty Service:	Line Support	After-sales Service Provided:	Video Technical Support
Warranty:	12 Months,and Life Long Tracking Service	Advantage:	Automatic Operation
Color:	Client's Request	Control Box Language:	Add Customer Request Language
Control System:	PLC(detla) System	Export Port:	Tianjin Port
Need Container:	1*40 Feet
High Light:	Pbr Double Layer Roll Forming Machine , Double Layer Roll Forming Machine 1200mm

Hot Sale Double Layer Pbr Roof Deck Panel Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine

1. Double layer roll forming machine

This machine can customize the tile length according to the requirements ,there is the construction of the computer controller to set up multiple sets of different data,easy operate. The equipment automatically set in accordance with the computer data to produce different lengths of finished products.

2. Technical details of double layer roll forming machine

No.	Hot Sale Double Layer Pbr Roof Deck Panel Building Material Machinery Steel Tile Roofing Sheet Roll Forming Machine
1	Suitable material	PPGI/GI,0.3-0.8MM
3	Coil width	1200mm/1000mm
5	Material of main frame	400H steel structure, strong and durable
6	Diameter of Soild shaft	70mm, high grade 45# steel
7	Roller	High grade 45# steel, hard chromed 0.05-0.07mm
8	Thickness of middle plate	16mm
9	Forming station	16-16 rows
10	Drive type	By chain(1.0 inch), link bearing model 6210
11	Power of main motor	5.5 kw, Lichao, Shanghai, with reducer
16	Material of cutting blades	Cr 12 mov, quenching 58-62℃

3. Main components of double layer roll forming machine

Double layer roll forming machine
Name	Quantity	Units
5T manual uncoiler (Hydraulic uncoiler)	1	Set
Adjustable feeding platform	1	Set
Roll forming system	1	Set
Plc cut to length	1	Set
Hydraulic system	1	Set
Delta Electronic Control System	1	Set
Supporter/Automatic Stacker	1	Set

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm 0

5. Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 20 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 1.5 years maintenance and whole life technical support

6. Application

The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm 1

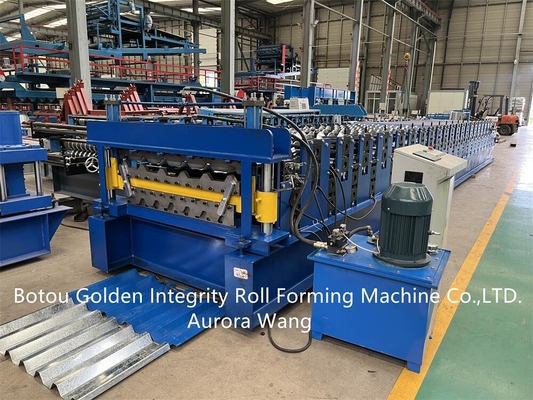

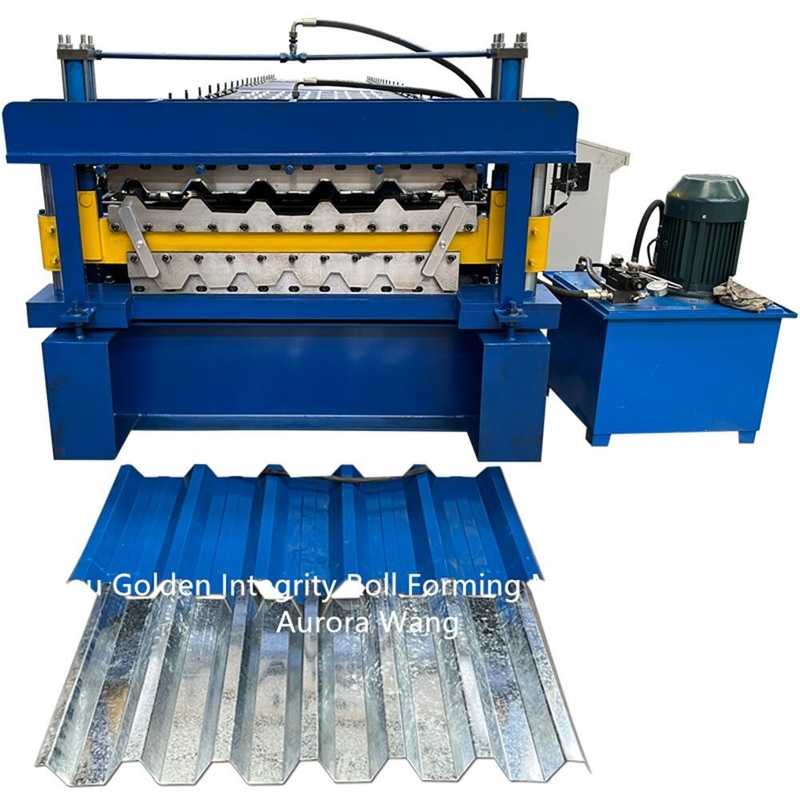

7. Product photo

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm 2

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm 3

Pbr Double Layer Roll Forming Machine Coil Width 1200mm/1000mm 4

8. FAQ

1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine

4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
