Name: Blue 12m/Min Cable Tray Roll Forming Machine 18 Roller Stations
Brand: JCX
SKU: cable tray machine
Price: 1044777 USD
Availability: InStock
Rating: 4.9 (172 reviews)

Home Products Cable Tray Roll Forming Machine

Blue 12m/Min Cable Tray Roll Forming Machine 18 Roller Stations

Product Details:

Place of Origin:	China
Brand Name:	JCX
Certification:	CE ISO
Model Number:	cable tray machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD1044777-USD115614 PER SET
Packaging Details:	Sea worthy standard package: covered with plastic film, fixed into 40'gp container
Delivery Time:	60-78 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 SETS PER MONTH

Contact Now

Detailed Product Description

Capacity:	Aboout 10-12m/min	Usage:	Cable Tray Roll Forming Machine
Main Frame350H Steel:	25mm Steel	Machine Motor:	5.5KW*4
Roller Station:	About 24-26 Stations	Machine Dimension(lwh):	About 36m3m1.3m
Control System:	PLC Delta Or As Customer Request	Cutting System:	Pre-cutting Hydraulic
Profile:	Automatic Cable Tray Roll Forming Machine	Raw Material Width:	100-800mm
High Light:	12m/Min Cable Tray Roll Forming Machine , Cable Tray Roll Forming Machine 18 Roller

Blue Cable Tray Manufacturing Machine Long Time Service 18 Roller Stationse

1. Description of cable tray roll forming machine:

Cable tray roll forming machine (also called cable ladder roll forming machine ) is capable of making different sizes of cable trays through replacing punching moulds. The cable trays produced by this roll forming machine production line are extensively used in factories and other buildings .Because of their accurate robustness .

Cable tray roll forming machine consists of decoiler(uncoiler),leaving machine(flattener),servo feeding device ,punching system ,front cutting device ,guiding device,roll former,rear straightening device and run-out table .

With full and special experience ,we can customize cable tray roll forming machines or cable tray roll forming production lines according to customers"profile drawings and specifications.

2. Technical details of cable tray machine:

1. Suitable Plate Material:

1.1 Material– thickness:0.8-1.5mm

1.2 Raw material: Galvanized steel and black steel sheets

2. Working Speed: 12meters / min

3. Forming Steps: 20 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: *90mm), thermal refining

6. Driven system: chain drive, shafts diameter 100mm

7. Main Power with reducer: 22KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 11KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan

13 Touch Screen—Beijing Kunlun Encoder--Omron, Japan

14. Electric parts--Schneider

15. Adjust the height by the motors and the rails, controlled by the PLC

3. Main components of door shutter roll forming machine

COMPONENT FOR New Condition High Performance Cable Tray Roll Forming Making Machine
Name		Units	Quantity
Decoiler		Set	1
Main Machine	Feeding device	Set	1
	Roll forming system	Set	1
	Cutting Equipment	Set	1
	Hydraulic system	Set	1
Electric control system		Set	1
Supporter/Automatic Stacker		Set	1

4. Production Flows

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

Blue 12m/Min Cable Tray Roll Forming Machine 18 Roller Stations 0

5. Our service

First step:	Designing. After order confirmation, we start to design the machine, such as the basement, structure, rollers, shafts, power, cutting device, programs and so on.
Second step:	The main parts, like rollers and shafts are produced by ourselves. We have several high-precision CNC lathe and other kinds of new machine tools, so that the quality and precision can be controlled.
Third step:	Assembling. The machines are assembled by technicians with years of experience, which can help workers improve the production efficiency and machine’s quality.
Fourth step:	Test. Raw material of different specifications are prepared for testing. And during test, long enough material is used. Because if the material is not long enough, some defects can not be exposed.
Five step:	Delivery. Because of the weight of machine itself, the packing is usually bare packing. Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

6. Application

This machine is widely used in the production of the cable tray line.

7. Product photo

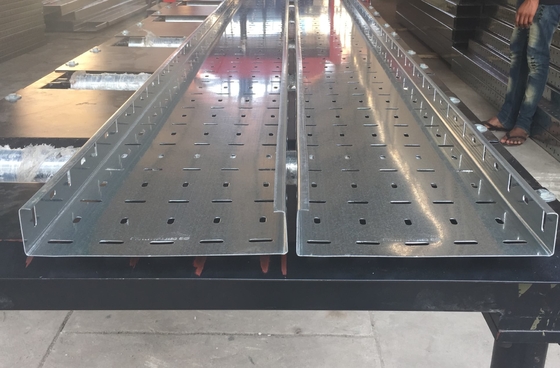

Blue 12m/Min Cable Tray Roll Forming Machine 18 Roller Stations 1

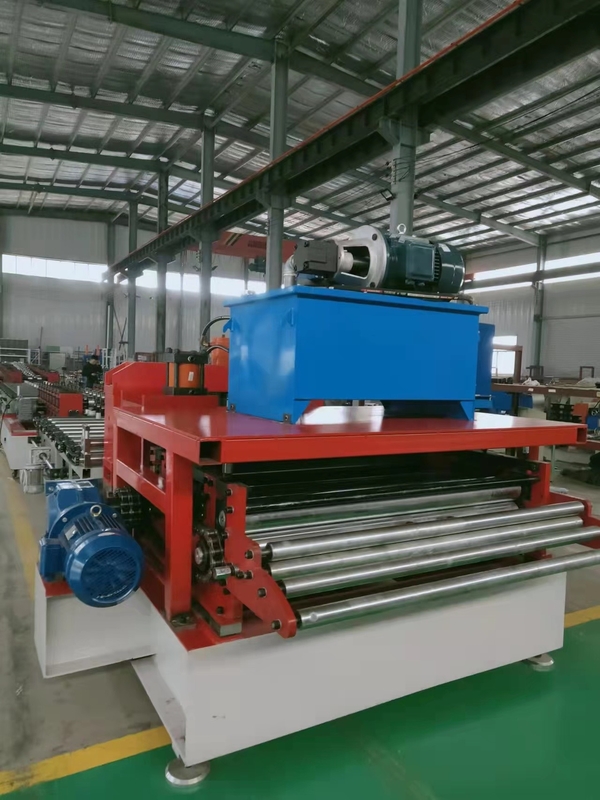

Blue 12m/Min Cable Tray Roll Forming Machine 18 Roller Stations 2
