| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Light gauge steel framing machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD43000-USD46000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | LGS Machine | Voltage: | 380V Or As Your Request |
|---|---|---|---|
| Raw Material: | Aluminum,GI, GL, Stainless Steel, Color Steel | Weight: | 3tons |
| Dimension(l*w*h): | 4m*0.8mm*1.8m | Certification: | CE/ISO |
| Rollers Material: | Cr12 With Heat Treatment | Shafe Material: | 40 Cr With Vacuum Heat Treatment |
| After Warranty Service: | Video Technical Support, Online Support |
High speed C89 C140 lgs light gauge steel framing machine China manufacture
1. Description Of light gauge steel framing Machine
LGS steel frame construction is an new design and reliable construction type build a villa which is widely used in all over the world and has surpassed wood frame construction in many countries.
The LGS dteel frame have some advantages such as buildability, strength, design flexibility, sustainability, and light in weight which makes it easy to build.
We are a manufacture of making LGS machine, we have 25 year rich experience, we exported the machine to United States, Canada, Colombia, Poland, Australia and other countries ect.Our machine have high speed, 50-60m/min, high efficiency.
If you are interest, contact me please.
2. Technical Details Of light gauge steel framing Machine
| Machine Specifications | |
| Weight | About 3tons |
| Size | About 4m*0.8mm*1.8m(length x width x height) |
| Color | Main color: Red or as your requirements |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI GL Aluminum |
| Thickness | 0.75-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | with 8 Groups and 4 Groups' Correctional Rollers |
| Diameter of forming rollers shafts | 50mm |
| Roll Forming Speed | 50-60m/min |
| Forming rollers material | Cr12 with Heat Treatment |
| Cutter material | Cr12MOV |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 7.5kw |
| Electric voltage | According to customer’s requirement |
3. Main Components Of light gauge steel framing Machine
| Manual Decoiler | 1 Set |
|
automatic material leveling part |
1 Set |
| Roll Forming Unit | 1 Set |
| Punching Unit | 1 Set |
| Cutting device | 1 Set |
| Vertex bd | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine
Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of light gauge steel framing Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And more than 20 sets of CNC machines which can support lots of machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
· Our machine adopts Taiwan Delta brand PLC control and touch screen, more durable and low failure rate.
· We more carefully to deal with the details. our rollers and shafts, we process 3 times.
6. Application Of The light gauge steel framing Machine
This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

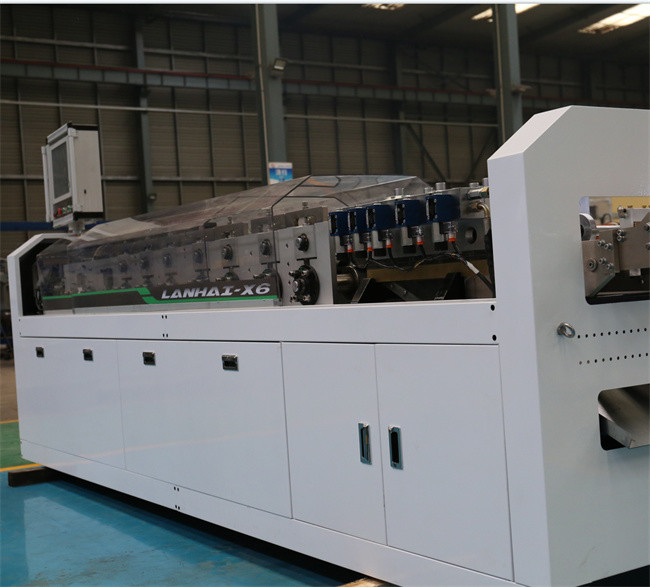

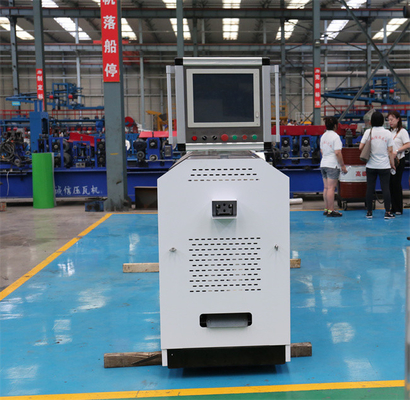

7. Product photos Our light gauge steel framing
Contact Person: Eileen Sun
Tel: +86 17331704660
