| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | Light gauge steel framing machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD42000-USD45000 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20'gp container |
| Delivery Time: | about 30 working days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | LGS Steel Framing Making Machine | Voltage: | 380V 50Hz |
|---|---|---|---|
| Raw Material: | Aluminum,GI, GL, Stainless Steel, Color Steel | Rollers Number: | With 8 Groups And 4 Groups' Correctional Rollers |
| Dimension(l*w*h): | 4m*0.8mm*1.8m | Key Selling Point: | Easy To Operate |
| Rollers Material: | Cr12 With Heat Treatment | Shafe Material: | 40 Cr With Vacuum Heat Treatment |

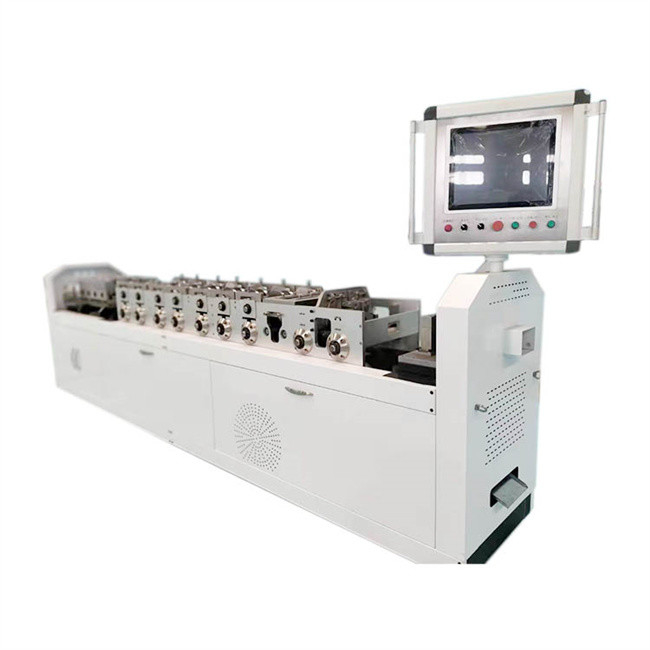

Villa house vertex BD C89 C140 Light Gauge Steel Framing Machine lgs machine
1. Description Of light gauge steel framing Machine
The light gauge steel is suited to construct walls, floors and roofs for 1-3 floors, and light commercial construction. The LGS machine can produce roof trusses at your factory ,also can produce in containers and on construction sites.
The light gauge steel machine also called:LGS machine ,LGS roll forming machine, LGS making machinery, villa roof sheet machine, light gauge steel frame roll forming machine,this machine has high speed,it can reach to 50-60m/min, and cost-effective frame solution,is very popular in the world.
If you are interest ,please contact me .
2. Technical Details Of light gauge steel framing Machine
| Machine Specifications | |
| Weight | About 3tons |
| Size | About 4m*0.8mm*1.8m(length x width x height) |
| Color | Main color: Red or as your requirements |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | GI GL Aluminum |
| Thickness | 0.75-1.2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | with 8 Groups and 4 Groups' Correctional Rollers |
| Diameter of forming rollers shafts | 50mm |
| Roll Forming Speed | 50-60m/min |
| Forming rollers material | Cr12 with Heat Treatment |
| Cutter material | Cr12MOV |
| Controlling system | PLC |
| Electric Power requirement | Main motor power: 7.5kw |
| Electric voltage | According to customer’s requirement |
3. Main Components Of light gauge steel framing Machine
| Manual Decoiler | 1 Set |
|
automatic material leveling part |
1 Set |
| Roll Forming Unit | 1 Set |
| Punching Unit | 1 Set |
| Cutting device | 1 Set |
| Vertex bd | 1 Set |
| Reveiving Table | 1 Set |
4. Production Flows Of LIGHT GAUGE STEEL FRAMING Machine
Uncoiling the sheet--Punching -Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages Of light gauge steel framing Machine
1. More efficiently and accurately produce the light gauge steel frame;
2. High equipment reliability;
3. Fully automatic production, saving raw materials;
4. High capacity;
5. Long use time, lifetime service
6.Easy to operate, increase productivity
6. Application Of The light gauge steel framing Machine
This machine is widely used in the production of the metal roof sheets and wall panel.villa,. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

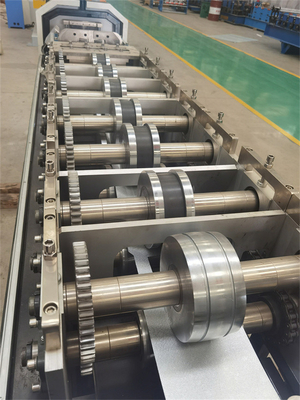

7. Product photos Our light gauge steel framing
FAQ
Q: What is your payment terms?
A: We accept 30% T/T as deposit and 70% T/T as balance before shipping.
We accept 100% L/C at sight
We accept Western Union payments.
Other payment terms you want to pay, please let me know and i will check and reply you.
Q: Do you provide training for my workers?
A: Yes.Of course
The machine has been installed and tested well before shipping. It is easy to operate.
Normally speaking, our customer follows the instruction book and can operate the machine well.?
You can also come to our factory to check the machine and learn how to operate before shipping.
If you need our engineer to your factory, we will send
Q: How about your after-sale service?
A: We provide 12 months free warranty and free technical support for the whole life about the glazed tile forming machine. During warranty period, if the mahcine parts broken, we can send the new ones freely.
Welcome to inquiry me.
Contact Person: Eileen Sun
Tel: +86 17331704660
