| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89/140 LGS STEEL FRAMING MACHINE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 43,000-45,000USD/set |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets per year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Certification: | ISO CE |
|---|---|---|---|
| Roller: | DC53 | Shaft: | 50mm, 40Cr |
| PLC Brand: | Mitsubishi | After Warranty Service: | Video Technical Support |
| Color: | BLUE | Use: | Modular Building |
| Encoder: | Omron | ||
| Highlight: | Vertex Bd Light Steel Framing Machine,Light Steel Framing Machine 120L |
||
Model 1 : service holeetc.
Model 2 : web notch
Model 3 : end truss
Model 4 : triple web hole
Model 5 : lip notch
Model 6 : dimple
Model 7 : swage
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 Equipment Parameters | |||
| Profile Type | C shape 89*41mm | Operation System: | Vertex bd |
| Standard Speed | 50m/min | Main motor power | 7.5kw |
| Product Accuracy | 0.5mm | Total power | 15.2kw |
| Coil width | 17-182mm | Hydraulic volumn | 120L |
| Steel thickness | 0.75-1.2mm | Machine weight | 3000KG |
| Punching dies | Dimple hole, chamfer cut, web notch, lip cut, service hols, swage, shear, bolt hole | ||
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |

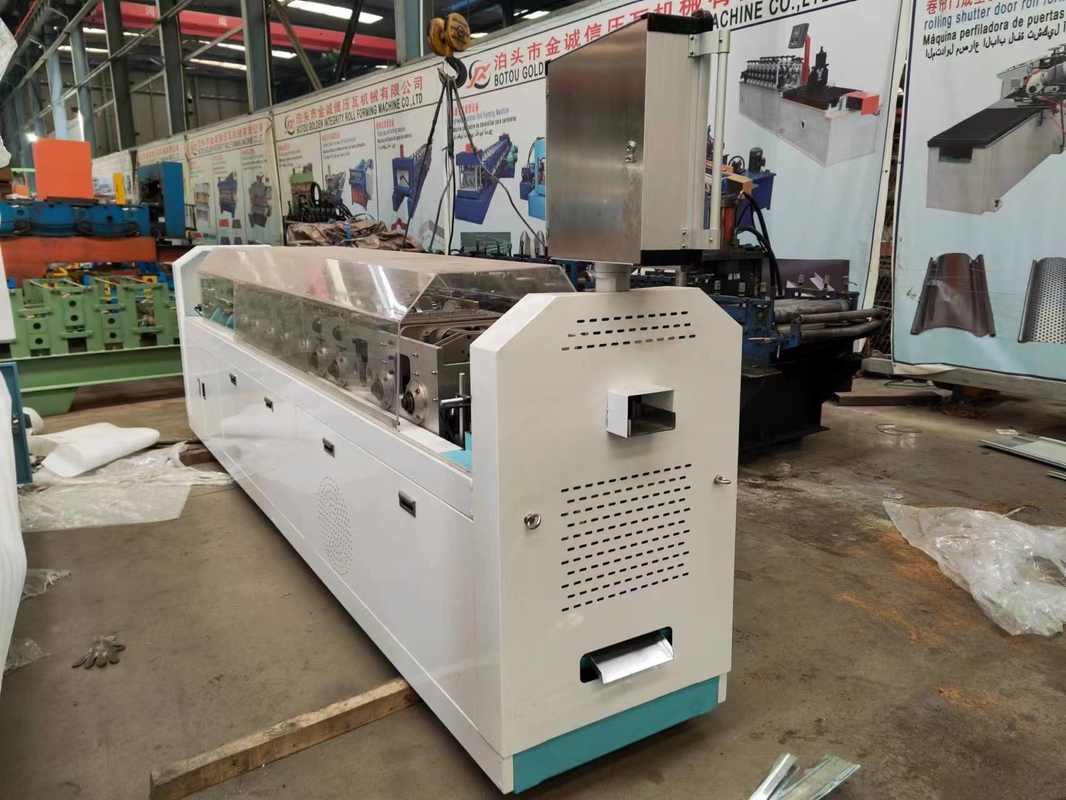

C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
| Brand of PLC |
Mitsubishi | JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:

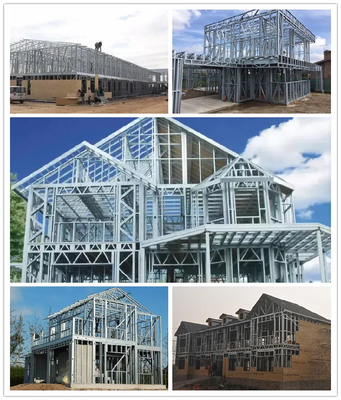

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
