| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89/140 LGS STEEL FRAMING MACHINE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 43,000-45,000USD/set |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets per year |
| Machine Size: | About 4000mm X800mm X1800mm | Weight: | About 3050kgs |
|---|---|---|---|
| Warranty Service: | 12 Months And Long Life Service | Color: | As Customer Request |
| Cutting Type: | Automatic Hydraulic Cutting System | PLC Control System: | Famous Brand PLC Control System |
| High Light: | 182mm Light Gauge Steel Roll Forming Machine,Building Light Gauge Steel Roll Forming Machine |
||
Fast speed:Efficient working
Speed:300-700/hour
Accuracy
High accuracy:
Punching hole
Accuracy:+_0.5mm
Stable
High stability:
Continuous
Working without jam
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 equipment basic parameters | |
| Suitable material | G300-G550 zinc plated, aluminum-zinc plated |
| Material thickness | 0.8-1.2mm |
| Material width | 182mm |
| Maximum line velocity | Approx 2800m/h |
| General production efficiency | 300-700 m/h |
| Main unit power | 7.5Kw |
| Voltage | 380V/50Hz/3phase |
| Hydraulic power | 5.5Kw |
| Equipment total power | 14.5Kw |
| Hydraulic cylinder volume | 120L |
| Main unit remote control | Standard mode |
| Punching dies |
Dimple hole, chamfer cut, web notch, lip cut, Service hole, swage, shear, bolt hole |
| Dimple accuracy | +/-0.5mm |
| Ink jet printer | Standard (custom according to buyer’s requirement) |
| Machine size | About 4.0m*0.8m*1.6m |
| Machine weight | About 3050kg |
| Machine color | Blue, Orange, Green, Black (can be custom) |

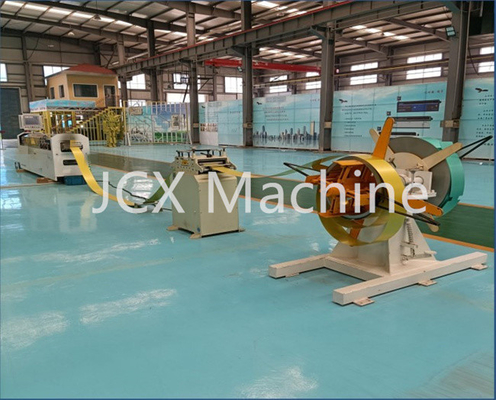

| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |
C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
| Brand of PLC |
Mitsubishi | JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:

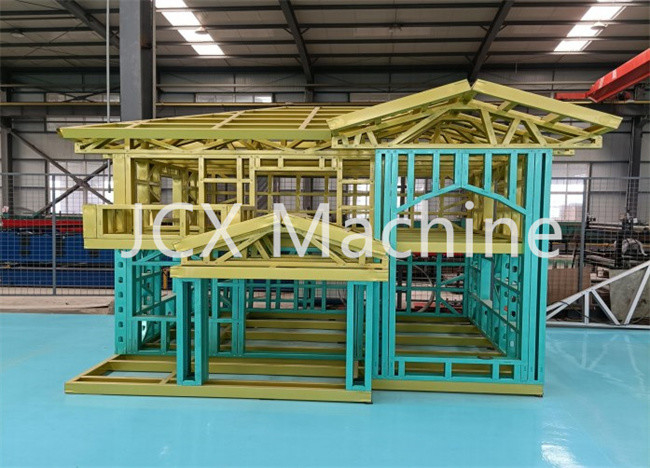

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
FAQ:
Q: How to maintenance?
A: If using frequently, best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address.we have rich experience in transport.
Q: Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: How many workers operate this machine to manufacture?
A: Only 1-2 worker.
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In the normal maintenance, the service life at least 8 years.
