| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89/140 LGS STEEL FRAMING MACHINE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 43,000-45,000USD/set |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets per year |
| Machine Dimension(L*W*H): | 4000mm X800mm X1800mm | Weight: | About 3050kgs |
|---|---|---|---|
| Warranty Service: | 12 Months And Long Life Service | Machine Color: | As Customer Request |
| Cutting Type: | Automaitc Hydraulic Cutting System | PLC Control System: | Full Automatic PLC Control System |
| Highlight: | JCX Light Steel Roll Forming Machine,Light Steel Roll Forming Machine PLC,PLC Frame Roll Forming Machine |
||

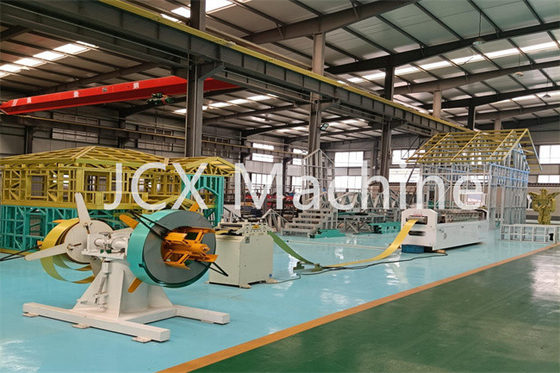

Bule Color Automatic C70 C89 C92 Light Gauge Steel Framing Roll Forming Machine for villa
1). Automatic vertical single head uncoiler: 1 set
a.Using hand tightening design, Coil ID:460mm-520mm, coil OD:1400mm, Loading:2000kg
b.Frequency conversion automatic uncoiling
c.Power:2.2KW
2). Frame: Using steel plate welding, the overall annealing to stress treatment, to ensure long-term use without deformation. Adopt CNC machining center processing to ensure dimensional accuracy.
3). Arch: the main arch is box structure, box is CNC machining center processing, auxiliary arch is independent structure.
4). Rollingmould: Cr12Mov die steel, after vacuum hardened HRC60-62 ° to refine the hole and the end of the face, CNC lathe finishing the roller surface.
5). Main axis: 40Cr tool steel, quenching and tempering heat treatment, external grinding finishing.
6). Drive system: Servo motor and reducer linkage, between the wheel with the precision hard tooth gear oil immersion operation, to ensure that the long-time service time.
7). . Hydraulic system
a. Energy storage structure, energy saving, and environmental protection
b. Hydraulic components: Germany Bosch Rexroth products
8). Punchingmould
Die model material is used S45C tool steel, mold insert with D2 or SKD11 high-quality steel, mold parts with Japan's rice products.
9). Electrical parts
a. Original imported motion controller and PLC
b.. International first-class brand low voltage components
10). CNC inkjet printer
a. Configuration of the industrial-grade high-quality solvent-based electronic inkjet printer, print writing clear and solid, easy to install
b.Common solvent-based inks, easy to buy, and economical to use
c.Automatically prints automatically generated by the design software, without human intervention
d. The control system can add any additional information, such as, company name, logo, websites and so on.
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 equipment basic parameters | |
| Suitable material | G300-G550 zinc plated, aluminum-zinc plated |
| Material thickness | 0.75-1.2mm |
| Material width | 182mm |
| Maximum line velocity | Approx 2800m/h |
| General production efficiency | 300-700 m/h |
| Main unit power | 7.5Kw |
| Voltage | 380V/50Hz/3phase |
| Hydraulic power | 5.5Kw |
| Equipment total power | 14.5Kw |
| Hydraulic cylinder volume | 120L |
| Main unit remote control | Standard mode |
| Punching dies |
Dimple hole, chamfer cut, web notch, lip cut, Service hole, swage, shear, bolt hole |
| Dimple accuracy | +/-0.5mm |
| Ink jet printer | Standard (custom according to buyer’s requirement) |
| Machine size | About 4.0m*1.0m*1.5m |
| Machine weight | About 3050kg |
| Machine color | Blue, Orange, Green, Black (can be custom) |
| Decoiler | Power: 1.5kw, loading weight:2000kg, Auto decoiling |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |
C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Control system:
| Brand of PLC |
Mitsubishi | JAPAN Brand |
| Brand of low voltage/switch/encoder/button | Schneider | FRANCE Brand |
| Design software | Vertex BD | Must VERTEX BD |
| Machine software control | Self development program | We have patent about this technology |
| Can support internet or not | Can support internet | If you need Remote control, please contract me, it needs customized |
Applications:

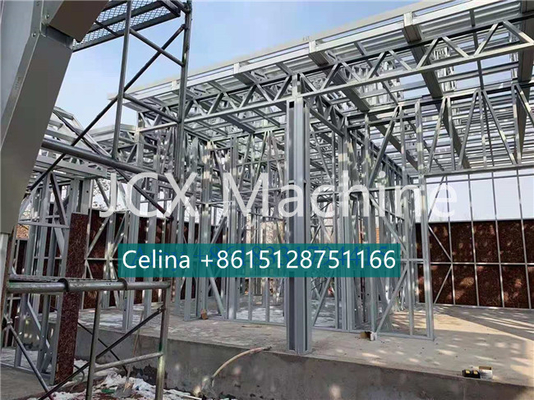

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
