| Place of Origin: | Hebei |
| Brand Name: | JCX |
| Certification: | CE ISO |
| Model Number: | C89/140 LGS STEEL FRAMING MACHINE |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 43,000-45,000USD/set |
| Packaging Details: | 20GP SEA worthy package or pack by wooden box if LCL with other goods |
| Delivery Time: | 30-60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets per year |
| Dimension(L*W*H): | About 4000mm X800mm X1800mm | Machine Weight: | 3050kgs |
|---|---|---|---|
| Warranty: | 12 Months And Long Life Service | Machine Color: | Blue Or As Customer Request |
| Cutting Type: | Hydraulic Cutting System | PLC Control System: | Automatic PLC Control System |
| Highlight: | Prefabricate House Light Gauge Steel Machine,Light Gauge Steel Machine 7.5Kw |
||
7.5Kw Main Motor Power Blue Light Gauge Steel Framing Machine Prefabricate House
Light gauge steel structures have many of the advantages:
The light gauge steel structure is able to shape itself to any form and can be clad and insulated with a wide range of materials.
The light gauge steel structure is easy to change or modify this construction at any point in its lifespan.
There is a great range of systems and products catering to this type of construction.
Light gauge steel structures are non-combustible, which is a code requirement for some types of structures. Since steel loses its strength in fire quite easily, it must be protected from fire with fire-rated sheeting.
Light gauge steel structures do not rot, shrink, warp, or decompose like wood structures, and can be used in areas where there is a probability of termite attack.

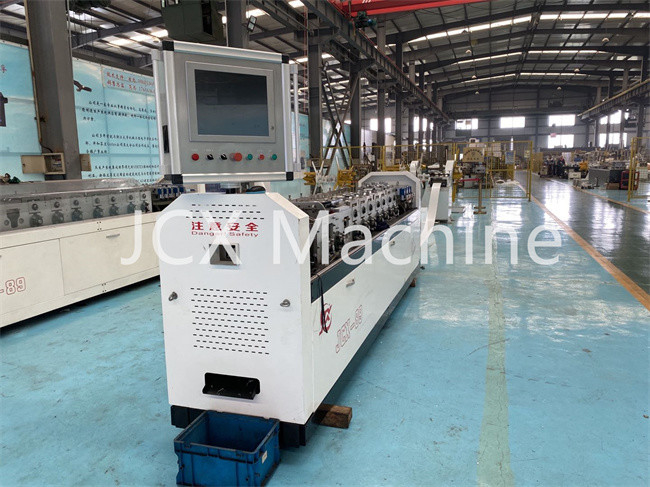

This Light Gauge Steel Framing Machine is for producing the studs and tracks which are used in light gauge steel structure buildings.
Total 8 working units, but we can also add punching dies as your requirements.
Parameters of c89 lgs framing machine
| C89 equipment basic parameters | |
| Suitable material | G300-G550 zinc plated, aluminum-zinc plated |
| Material thickness | 0.75-1.2mm |
| Material width | 182mm |
| Maximum line velocity | Approx 2800m/h |
| General production efficiency | 300-700 m/h |
| Main unit power | 7.5Kw |
| Voltage | 380V/50Hz/3phase |
| Hydraulic power | 5.5Kw |
| Equipment total power | 14.5Kw |
| Hydraulic cylinder volume | 120L |
| Main unit remote control | Standard mode |
| Punching dies |
Dimple hole, chamfer cut, web notch, lip cut, Service hole, swage, shear, bolt hole |
| Dimple accuracy | +/-0.5mm |
| Ink jet printer | Standard (custom according to buyer’s requirement) |
| Machine size | About 4.0m*1.0m*1.5m |
| Machine weight | About 3050kg |
| Machine color | Blue, Orange, Green, Black (can be custom) |
| Decoiler | Power: 1.5kw, loading weight:2000kg, Auto decoiling |
| NO. | Description | Quantity (set) | Remark |
| 1 | 3 T Electric2 in 1 Decoiler And Leveling Device or Double head decoiler as oprtional | 1 | Put coils and straight the coil |
| 2 | Transmission and hydraulic system | 1 | Induction steel belt |
| 3 |
C89 Roll Forming Machine |
1 | main machine |
| 4 | Double print system | 1 | 1 set, two pcs |
| 5 | Control system | 1 |
|
| 6 | Machine Run-Out Table | 1 | Drawing, you can produce yourself after you getting the machine |
| 7 | Spare parts and tool box | 1 | Full sets of necessary spare parts |
Applications:

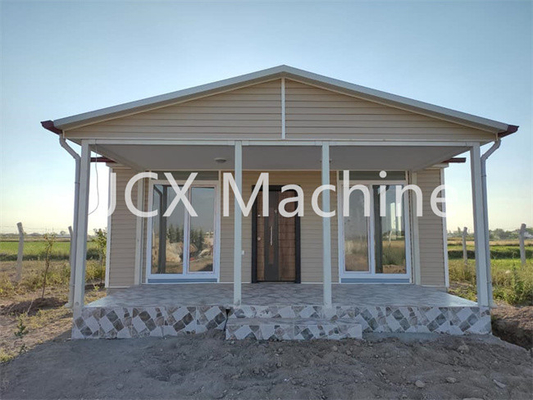

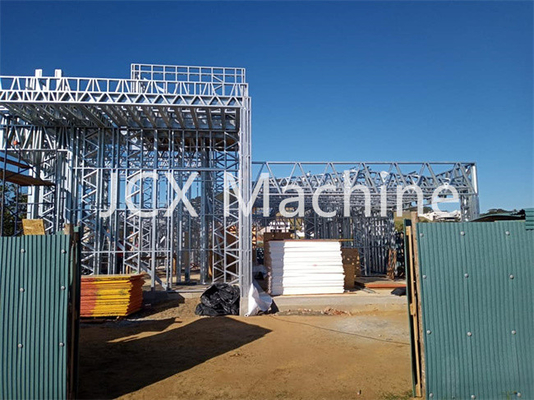

Our lgs steel framing machine can make house roof, floor, wall, truss all.
Automatic lubrication system
