| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | C89 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Light Gauge Steel Frame Roll Forming Machine For Prefab House Villa | Warranty Service: | 12 Months And Line Support Video |
|---|---|---|---|
| Machine Color: | As Client's Request | Control Box Language: | Chinese And English Or As Customer Request |
| Export Port Name: | Any Port In China | Need Container: | 1*20 Feet |
| Highlight: | 1500m/H Light Keel Roll Forming Machine,Villa Light Keel Roll Forming Machine |
||
1. Description of light gauge steel framing roll forming machine:
The light gauge steel structure is able to shape itself to any form and can be clad and insulated with a wide range of materials.
The light gauge steel structure is easy to change or modify this construction at any point in its lifespan.
There is a great range of systems and products catering to this type of construction.
Light gauge steel structures are non-combustible, which is a code requirement for some types of structures. Since steel loses its strength in fire quite easily, it must be protected from fire with fire-rated sheeting.
Light gauge steel structures do not rot, shrink, warp, or decompose like wood structures, and can be used in areas where there is a probability of termite attack.
This Light Gauge Steel Framing Machine is for producing the studs and tracks which are used in light gauge steel structure buildings.
2. Technical details of light gauge steel framing roll forming machine
| No. | Item | Description |
| 1 | Machine Size | 4000*1000*1500mm |
| 2 | Machine Weight | 3000kg |
| 3 | Suitable Material | G300-G550Galvanzied coils and Aluzinc |
| 4 | Thickness | 0.75-1.2mm |
| 5 | Size | 89*41mm |
| 6 | Feeding material width | 182mm |
| 7 | Standard Producing speed | 300-700m/h |
| 8 | Max producing speed | 1500m/h |
| 9 | Main motor | 7.5kw |
| 10 | Hydraulic station | 5.5kw |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Hydraulic tank capacity | 100L |
| 13 | Hydraulic cooling | Fan cooling |
| 14 | Hydraulic pressure | computer set |
| 15 | Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| 16 | De-colier | Automatic decoiler |
3. Major Characteristics of Light Gauge Steel Framing Machine
| 1 | Windows system touch panel. Quick importing NC instructions Via network or USB interface. |
| 2 | Visual work process monitoring |
| 3 | Vertex BD Software |
| 4 | German Bosch Rexroth hydraulic system. Quick loading and unloading mould design |
| 5 | Built-in maintenance free inkjet printer |
4. Production Flows of light gauge steel framing roll forming machine
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support

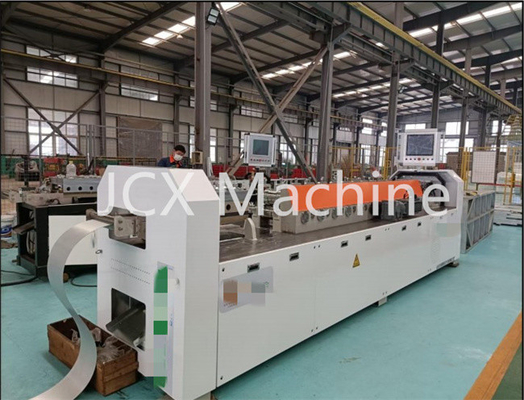

6. Product photo of light gauge steel framing roll forming machine

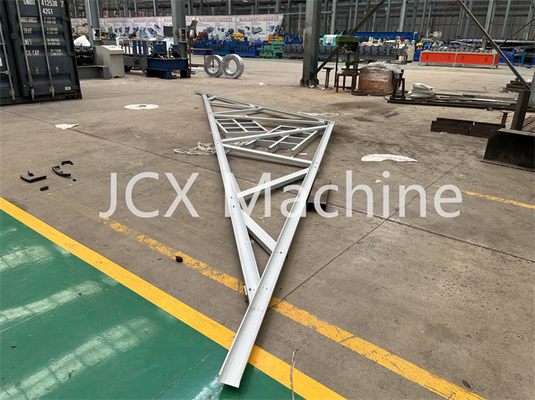

7. Application of light gauge steel framing roll forming machine
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Celina Li
Tel: +8615128751166
