| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | C89 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | C89 Light Gauge Steel Frame Roll Forming Machine For Prefab House Villa | Warranty: | 12 Months And Long Life Service |
|---|---|---|---|
| Color: | As Client's Request | Control Box Language: | As Customer Request |
| Export Port Name: | Tianjin Port | Need Container: | 1*20 Feet Container |
| Highlight: | C140 Light Gauge Steel Framing Machine,Prefab Light Gauge Steel Framing Machine |
||
1. Description of light gauge steel framing roll forming machine:
The light steel villa keel/house framing machine can meet the manufacturing needs of all frame keels of low-rise single family or conjoined building frames (including walls, floor Beams and roof trusses) with one click.
The frame keel system manufactured by it can be compatible with the existing brick-concrete structure, wood structure and heavy steel structure. Intelligent keel equipment cannot only be produced in the factory, but also can be placed in a container and transported to a remote construction site for onsite production.
The cloud control intelligent system matched with this equipment is the intermediate link between design and production, the control center of the whole system, and the technical guarantee for realizing one-key full-digital production.
2. Technical details of light gauge steel framing roll forming machine
| No. | Item | Description |
| 1 | Machine Size | 4000*1000*1500mm |
| 2 | Machine Weight | 3000kg |
| 3 | Suitable Material | G300-G550Galvanzied coils and Aluzinc |
| 4 | Thickness | 0.75-1.2mm |
| 5 | Size | 89*41mm |
| 6 | Feeding material width | 182mm |
| 7 | Standard Producing speed | 300-700m/h |
| 8 | Max producing speed | 1500m/h |
| 9 | Main motor | 7.5kw |
| 10 | Hydraulic station | 5.5kw |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Hydraulic tank capacity | 100L |
| 13 | Hydraulic cooling | Fan cooling |
| 14 | Hydraulic pressure | computer set |
| 15 | Frame and punching dies | Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting |
| 16 | De-colier | Automatic decoiler |
| NO. | Name | Quantity | ||
| 1 | Uncoil | 1 | ||
| 2 | Roll forming machine | 1 | ||
| 3 | Haydraulic puncher/cutter | 6 | ||
| 4 | Controlling system | 1 | ||
| 5 | Lable printer | 1 | ||
| 6 | Layout table | 1 | ||
| 7 | Hydraulic station | 1 | ||
| 8 | Design software | 1 | ||
4. Production Flows of light gauge steel framing roll forming machine
Decoiling --- Levelling-----Punching ---- Roll Forming ----- Ink Code ----- Cutting ---- Profile
5. Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 1.5 years maintenance and whole life technical support

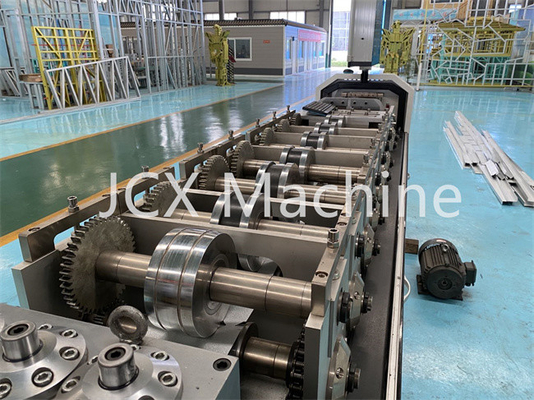

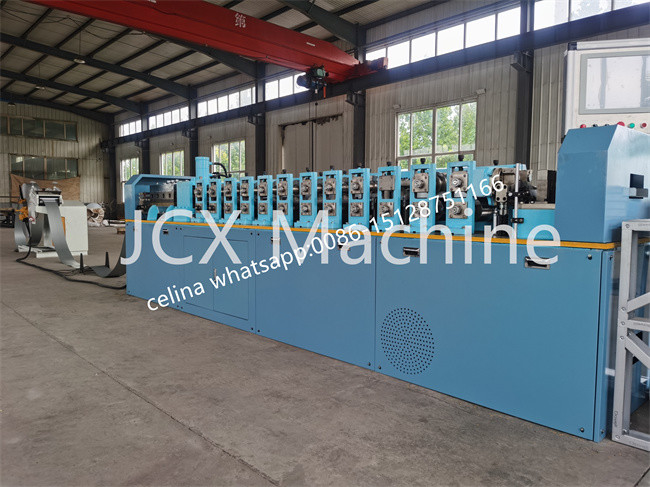

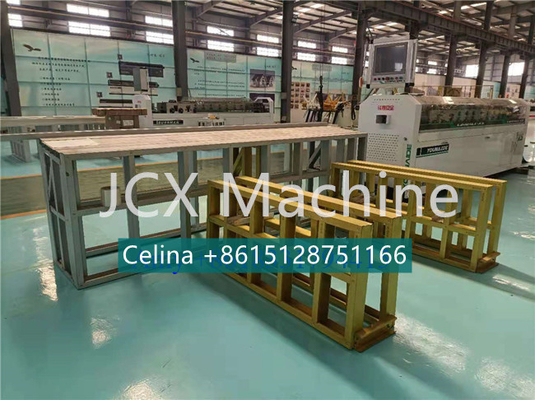

6. Product photo of light gauge steel framing roll forming machine

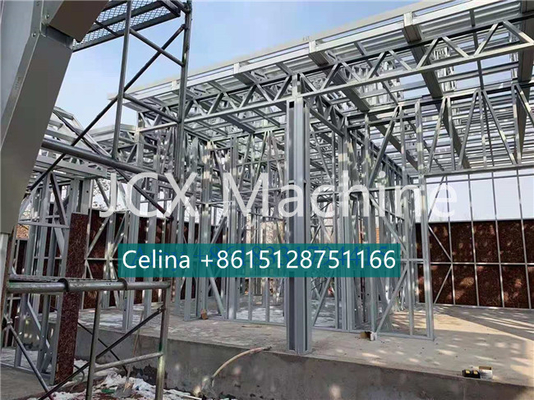

7. Application of light gauge steel framing roll forming machine
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
