| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Double layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Double Layer Roofing Tile Roll Forming Machine | After-sales Service Provided: | 24 Hours Video Technical Support |
|---|---|---|---|
| Machine Warranty: | 12 Months And Life Long Tracking Service | Machine Color: | Client's Request |
| Control Box Language: | English Or Add Customer Request Language | Control System: | PLC(detla) System Or As Customer Request |
| Export Port: | Tianjin Port Or Other Chinese Port | Need Container: | 1*40 Feet Container |
| Highlight: | 380V Double Layer Roll Forming Machine,Double Layer Roll Forming Machine IBR,IBR Sheet Roll Forming Machine |
||
High Efficiency Double Layer Roll Forming Machine , IBR Sheet Roll Forming Machine
1. Double layer roll forming machine
The Double layer roll forming machine can roll forming two different types of roofing sheets, no need to change anything tools. The double layer roll forming machine has two layers. The upper layer and the lower layer. It can roll-forming different sheets. The double layer roll forming machine is the popular and wise choice for both new entrepreneurs and established metal building manufacturers
The double layer forming machine can make two different types of wall and roof panels in one machine, including glazed roof tile, roof/wall panel style.
This design of the double layer roll forming machine could increase your productivity and save space, and save the costs. The machine max roll speed can reach to 45m/min. This is very popular abroad due to its high efficiency. It can work automatically.
2. Technical Parameters of IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine
|
Suitable Material |
Type | GI Coil, PPGI & PPGL Coil |
| Thickness | 0.3-0.8mm | |
| Wide | 1000/1250mm | |
| Yield Strength | 550Mpa max | |
|
Power Specs |
Voltage | 380V/3PH/50HZ |
| Main Motor | 7.5kw | |
| Hydraulic motor | 4kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Forming steps number | 16~20 steps |
| Shaft Material | No.45 steel. Quenched. Diameter: 70mm | |
| Roller Material | No. 45 steel, coated with hard chrome | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1.5 inch | |
| Wall Plate | 20mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment 60-62 | |
| Forming Speed | 0-12m/min for standard solution |
3. Main components of the double layer roof roll forming machine
| Name | Description |
| Manual decoiler |
Dimensions: 1700mm*1000mm*800mm Width of feeding: 1250mm Inter diameter: 480-570mm Mode of expand &fight: inner expand &fight by manual
|
| Forming section |
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flatten. Feeding width:900-1300mmmm Entrance and guide roller: diameter is ￠76mm, material is SAE1045,surface with chrome |
| Hydraulic Cutting |
Cutting after forming: Cut the sheet after roll forming to required length. Length measuring: Automatic encoder length measuring, Brand: Omron The cutting sequence is also contained and controlled by the same PLC program |
| Receiving table |
Jointed by 60mm*40mm tube Two sets. |
| Hydraulic station | Hydraulic power: 4kW Working pressure: 12Mpa adjustable Solenoid valve: 1 group Hydraulic oil: 46# hydraulic oil Color: Blue (or base on customer request) |
| Control Cabinet |
1)Programmable setting of profile length and quantity 3)Operating system language: English and Chinese 4)Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved |
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. features of the IBR Sheet and Corrugated Sheet Double Layer Roll Forming Machine
1). This roll forming machine can roll form metal roofing sheet. After roll formed by this roll forming machine, the surface will be very smooth and beautiful without any scratch on the surface.
2). Roll forming process: uncoiler, roll forming, forming step effect, cut to length.
3). Fully Automatic Control System with PLC.
4). Easy operation: Key in the length and quantity on the control panel.
5). 18 months warranty.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.

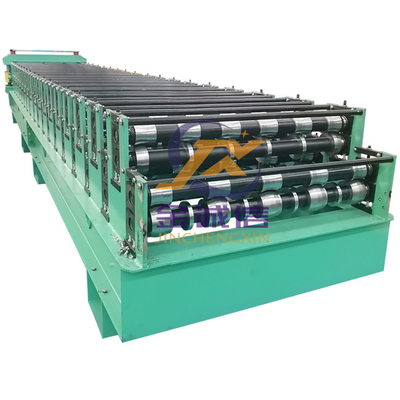

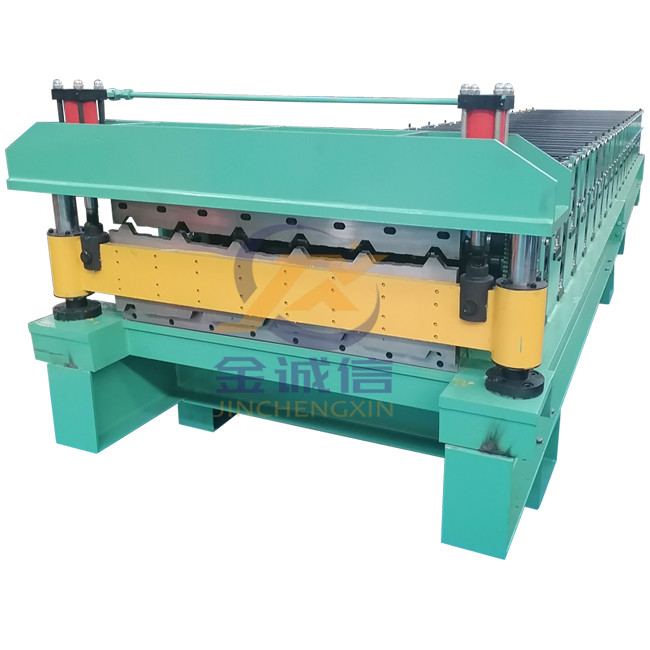

7. Product photo
8. FAQ
1. who are we?
We are based in Hebie, China, start from 2010,sell to Africa(20.00%),Domestic Market(20.00%),Southeast Asia(15.00%),South America(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Central America(5.00%),South Asia(5.00%),Eastern Asia(2.00%),Western Europe(2.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Roof Sheet Roll Forming Machine,Wall Panel Roll Forming Machine,Highway Guardrail Plate Forming Machine,Floor Decking Sheet Rolling Machine,C Purlin Making Machine
4. why should you buy from us not from other suppliers?
1.Rich experience 2.High-quality after-sales service system 3.Brand and Qualification Guarantee 4.Technological innovation advantage
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Celina Li
Tel: +8615128751166
