380V 50Hz 3phases Roofing Roll Forming Machine Delta PLC Control

Automatic Delta PLC Control Double Layer Roll Forming Machine Metal Roofing Corrugated

1. Application Of The Double Layer Roll Forming Machine

This machine is widely used in the production of the metal roof sheets and wall panel.

our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.

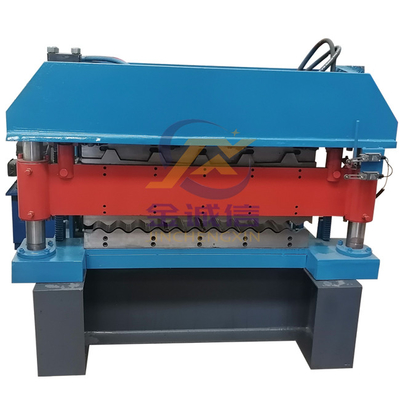

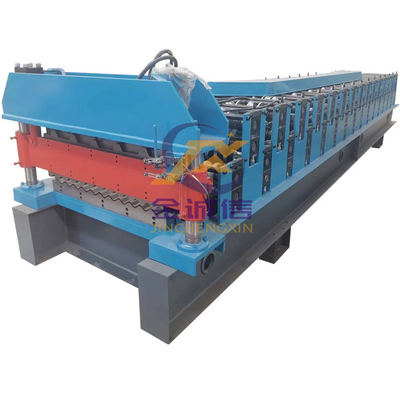

2. Product photos Our Double Layer Roll Forming Machine

3.Description Of Double Layer Roll Forming Machine

Compared to a single layer roof panel roll forming machine, this double layer roll forming machine is designed to produce two different kinds of metal sheets which can be one trapezoidal roofing and one metal roof tile.

It shall be pointed out that the two layers of roll forming parts on this double layer roll forming machine cannot work at the same time, which means each one of the roll forming systems (top roll forming and bottom roll forming) will stop when the other is working.

A double sheet roll forming machine usually consists of a decoiler, two entry feeding guides with entry shearing optional, two roll forming systems, one Cutting frame with two cutting dies, one transmission system, one control system and runout tables.

Hydraulic decoiler and auto stacking machine are optional to this double layer roll forming machine as per requirements. For European customers, there are safety cover as well as a CE sign on the machine body.

4. Technical Details Of Double Layer Roll Forming Machine

5. Main Components Of Double Layer Roll Forming Machine

6. Production Flows Of Double Layer Roll Forming Machine

Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)

7. Advantages Of Our Double Layer Roll Forming Machine

· More than 10 engineers with more than 10 years experience

· More than 10 designers with more than 10 years experience

· Many sets advanced CNC production lines on site

· Passionate Team

· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.

· Our company has more than 10 years of production experience

· Our workshop area of 25,000 square meters

8.   Installation service

After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.

Installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technician's departure.

The buyer should arrange the accommodation, food, and traffic in the destination

Training period: 2 days. (we can supply training on the operation spot if buyer needs)

Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.
