| Place of Origin: | China |
| Brand Name: | JCX |
| Certification: | CE ISO9001 |
| Model Number: | Double layer Roll Forming Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD8000-USD12500 PER SET |
| Packaging Details: | Sea worthy standard package: covered with plastic film, fixed into 20/40'gp container |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 SETS PER MONTH |
| Product Name: | Double Layer Roofing Tile Roll Forming Machine | After-sales Service Provided: | 24 Hours Video Technical Support |
|---|---|---|---|
| Machine Warranty: | 12 Months And Life Long Tracking Service | Machine Color: | Client's Request |
| Control Box Language: | English Or Add Customer Request Language | Control System: | PLC(detla) System Or As Customer Request |
| Export Port: | Tianjin Port Or Other Chinese Port | Need Container: | 1*40 Feet Container |
| Highlight: | Full Automatic Tile Roll Forming Machine,Tile Roll Forming Machine PLC |
||

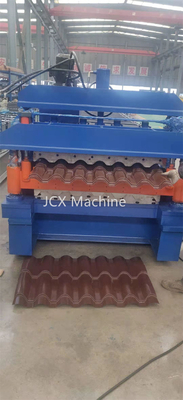

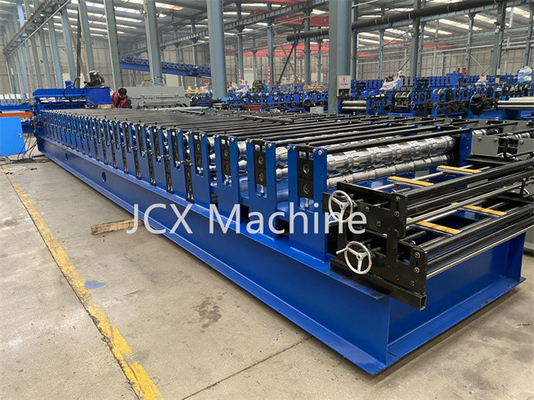

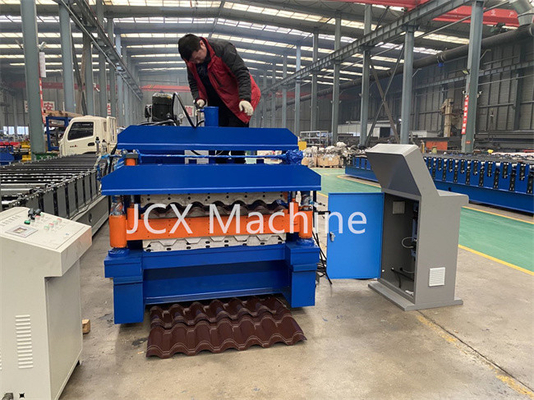

Full Automatic Double Layer Roll Forming Machine PLC Control Hydraulic Cut Device
1. Double layer roll forming machine
Steel Glazed Trapezoidal IBR PBR Corrugated Roof Tile Double Layer deck and step tile Roll Forming roofing sheet Machine pricesis mainly producing steel roof/ wall sheet .
The final products have three types,corrugated sheet and trapezoidal sheet and glazed tiles.
As we know, steel roof/ wall sheet is widely used in large span factory building, warehouse, office buildings, villas, roof, cold storage, air purification room, stores, kiosks, and temporary housing.
2. Technical details of double layer roll forming machine
| 1 | Coil Width | 914mm/1000mm/1200mm /1250mm or according to your request |
| 2 | Diameter of shaft | 70mm |
| 3 | Forming Speed | 8-12meters/min |
| 4 | Middle plate | 16mm |
| 5 | Material of shaft | 45#steel with tempering |
| 6 | forming thickness | 0.2mm-0.6mm |
| 7 | material of rollers | 45#steel |
| 8 | Cutting type | hydraulic -cutting |
| 9 | Main power | 4kw/5.5kw /7.5kw/11kw according to machine |
| 10 | Main frame | 350H steel |
| 11 | Control system | PLC |
| 12 | Brand of electrical parts | Delta |
| 13 | Manual decoiler | 5 tons |
| 14 | Power | 3 Phase,380 Voltage,50Hz |
| 15 | Dimensions(L*W*H) | About 6.5*1.2*1.2M |
| 16 | Weight | about 3 tons |
3. Main components of double layer roll forming machine
|
Double layer roll forming machine
|
||
|
Name
|
Quantity
|
Units
|
|
5T manual uncoiler (Hydraulic uncoiler)
|
1
|
Set
|
|
Adjustable feeding platform
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
Plc cut to length
|
1
|
Set
|
|
Hydraulic system
|
1
|
Set
|
|
Delta Electronic Control System
|
1
|
Set
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
4. Production Flows
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Features of Double Layer Roof Roll Forming Machine
1). Double layer roll forming machines can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2). Controlling by computer, PLC display, operation is easy, running is steady and reliable, endurable, and maintenance-free.
3). We can make and design all kinds of forming machines according to the customer's request.
6. Application
The advantage of glazed steel sheet includes beautiful, classical appearance and grace taste. It is widely used in village, hotel, exhibition, vacation village, family construction and outdoor decorating.
7. FAQ
(1)Are you manufacture or factory ?
we are manufacture and we have more than 10 years'experience.
(2)what's your guaranty of machines?and how to make sure quality of machines?
Guaranty of machines is 12 months.and after finish machines,we will supply video of working machines,also welcome to visit our factory and inspection of machine on site.
(3)Engineer available overseas?
our engineer can go to your place for installation of machines,customers need responsible for round -way flight tickets ,accommodation and engineer's salary is 100usd/day.
(4)if spares broken ,how to deal with it?
we can send new spare to you by DHL courier,about 5 to 7days you can receive them.
(5)what's your payment term?
our payment term is 30% advance payment by T/T,other 70% balance payment before shipment.
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Contact Person: Celina Li
Tel: +8615128751166
